LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 404314159 - 406294344) (2019) Cooling Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

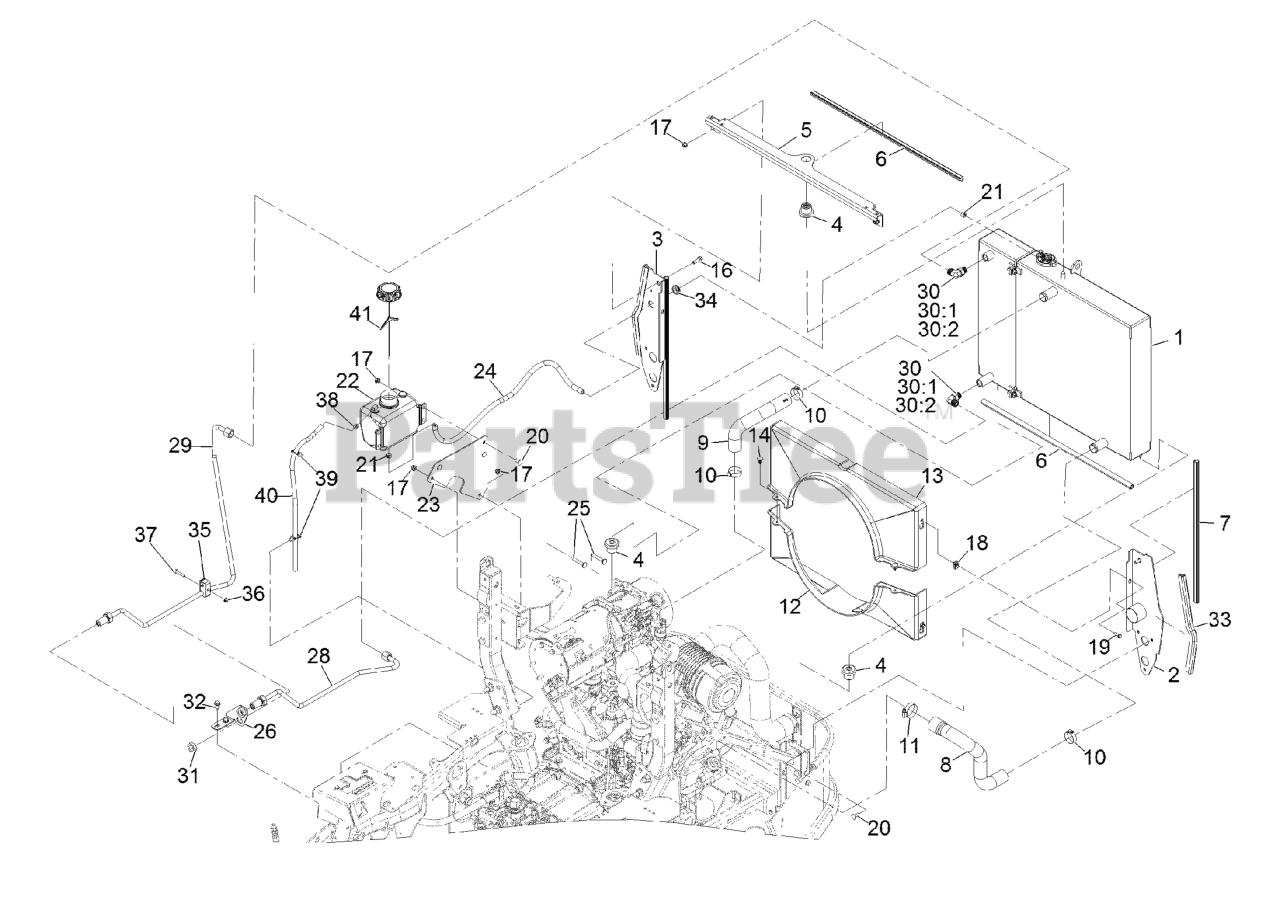

Cooling Assembly Parts Diagram

  • Title

1

Exmark 121-3330

COOLING ASM

$2007.99

$

Usually ships in 3-6 days

0

2

Exmark 126-9026-03

SUPPORT-RADIATOR, LH

$58.99

$

Usually ships in 3-6 days

0

3

Exmark 126-9028-03

SUPPORT-RADIATOR, RH

$38.99

$

Usually ships in 3-6 days

0

4

Exmark 119-1422

MOUNT-ISOLATOR

$20.99

$

Usually ships in 3-6 days

0

5

Exmark 120-0068-03

BRACKET-COOLING, TOP

$54.99

$

Usually ships in 3-6 days

0

6

Exmark 119-1427

SEAL-BULB

$16.99

$

Usually ships in 3-6 days

0

7

Exmark 119-1426

SEAL-BULB

$14.99

$

Usually ships in 3-6 days

0

8

Exmark 121-3322

HOSE-RADIATOR, LOWER

$91.99

$

Usually ships in 3-6 days

0

9

Exmark 121-3321

HOSE-RADIATOR, UPPER

$91.99

$

In Stock, only 4 left!

0

10

Exmark 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 3 left!

0

11

Exmark 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

12

Exmark 121-3311

SHROUD-BOTTOM

$154.99

$

Usually ships in 3-6 days

0

13

Exmark 121-3312

SHROUD-TOP

$154.99

$

Usually ships in 3-6 days

0

14

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

16

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

19

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

20

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Exmark 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

22

Exmark 135-4692

TANK-OVERFLOW, W/CAP

$84.99

$

Usually ships in 3-6 days

0

23

Exmark 126-9178-03

BRACKET-BOTTLE

$21.99

$

Usually ships in 3-6 days

0

24

Exmark 126-7648

HOSE

$19.99

$

Usually ships in 3-6 days

0

25

Exmark 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 11

0

26

Exmark 126-6781-03

BRACKET-BULKHEAD

$13.99

$

Usually ships in 3-6 days

0

28

Exmark 126-8691

HYDRAULIC TUBE ASM

$75.99

$

Usually ships in 3-6 days

0

29

Exmark 126-8690

HYDRAULIC TUBE ASM

$81.99

$

Usually ships in 3-6 days

0

30

Exmark 340-98

FITTING-ELBOW, 90 DEG

$33.99

$

In Stock, only 2 left!

0

30:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

30:2

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

31

Exmark 340-127

NUT-BULKHEAD

$7.49

$

Usually ships in 3-6 days

0

32

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

33

Exmark 126-6847

SEAL-BULB

$12.99

$

Usually ships in 3-6 days

0

34

Exmark 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

35

Exmark 135-0641

CLAMP-TWIN

$6.49

$

Usually ships in 3-6 days

0

36

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

37

Exmark 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

38

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

39

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

40

Exmark 110-4103

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

41

Exmark 135-4693

CAP-W/TETHER

$22.99

$

In Stock, only 4 left!

0
