Exmark LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 404314159 - 406294344) (2019) Caster Wheel and Fork Assembly Parts Lookup with Diagrams

1

Exmark 126-8601-01

FORK-CASTER

$205.99

$

In Stock, only 1 left!

2

Exmark 126-8157

ASM-WHL AND TIRE

$366.99

$

In Stock, only 2 left!

2:1

ASM-Whl And Tire

Note: Not serviced separately

$

Not available 

2:1:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$22.99

$

In Stock, Qty 20+

2:1:2

Exmark 103-0063

SEAL-CASTER

$9.49

$

In Stock, Qty 20+

2:1:3

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

2:1:4

Exmark 126-5361

AXLE CASTER ASM

$20.99

$

In Stock, Qty 13

2:2

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

2:3

Exmark 325-39

SCREW-HH

$19.99

$

In Stock, Qty 20+

2:4

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

3

Exmark 103-9028

BEARING-ROLLER, CONE TAPE

$31.99

$

In Stock, only 2 left!

4

Exmark 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 13

5

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

6

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

7

Exmark 135-0355

SEAL-GREASE

$8.49

$

In Stock, Qty 16

8

Exmark 126-9369

CAP-GREASE

$5.49

$

In Stock, only 4 left!

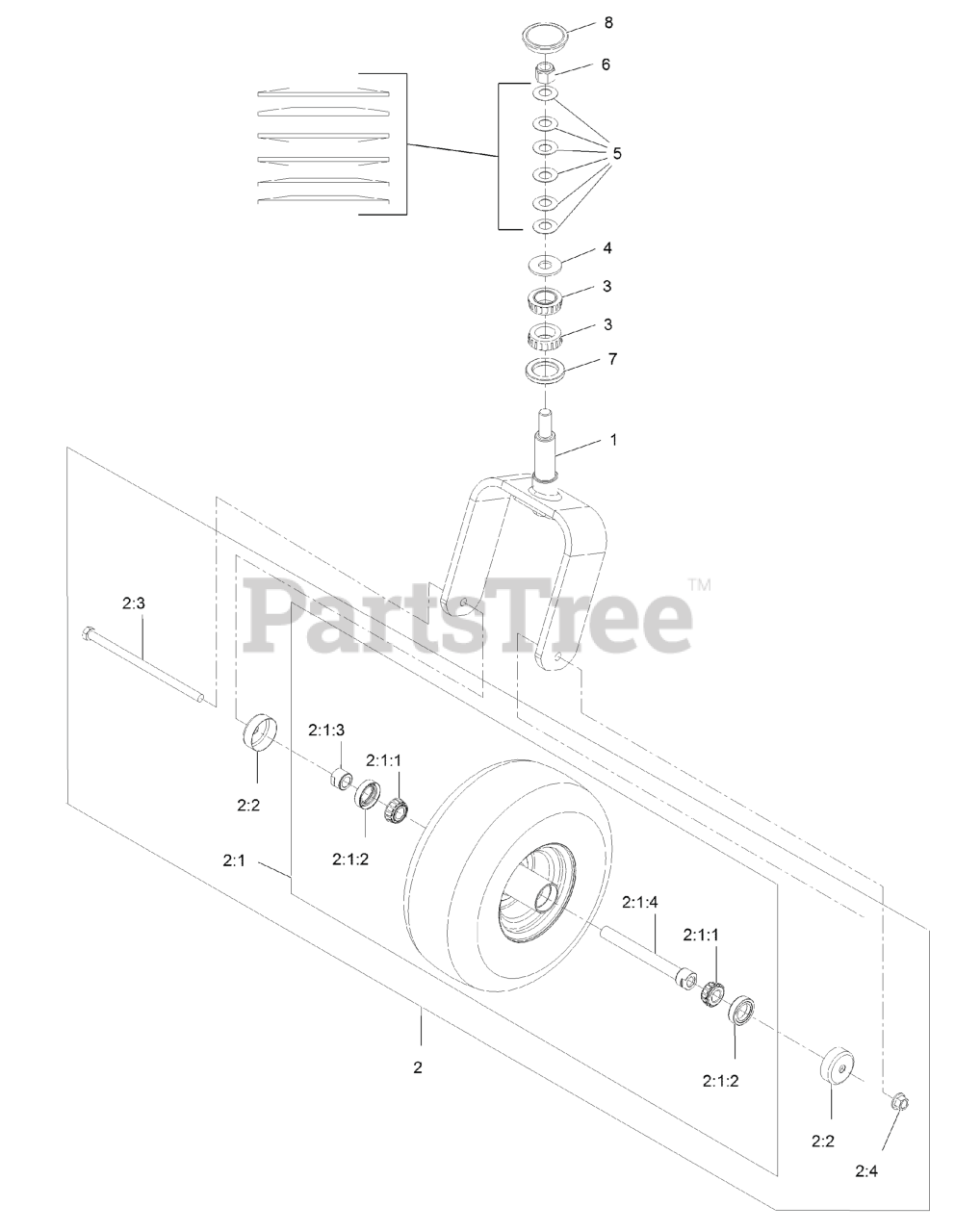

LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 404314159 - 406294344) (2019) Caster Wheel and Fork Assembly Parts Diagram

Caster Wheel and Fork Assembly Parts Diagram

Exmark 126-8601-01

Exmark 126-8157

Exmark 1-633585

Exmark 103-0063

Exmark 103-3051

Exmark 126-5361

Exmark 103-2768

Exmark 325-39

Exmark 99-5107

Exmark 103-9028

Exmark 3256-8

Exmark 1-633508

Exmark 3296-51

Exmark 135-0355

Exmark 126-9369
