LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Parking Brake Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

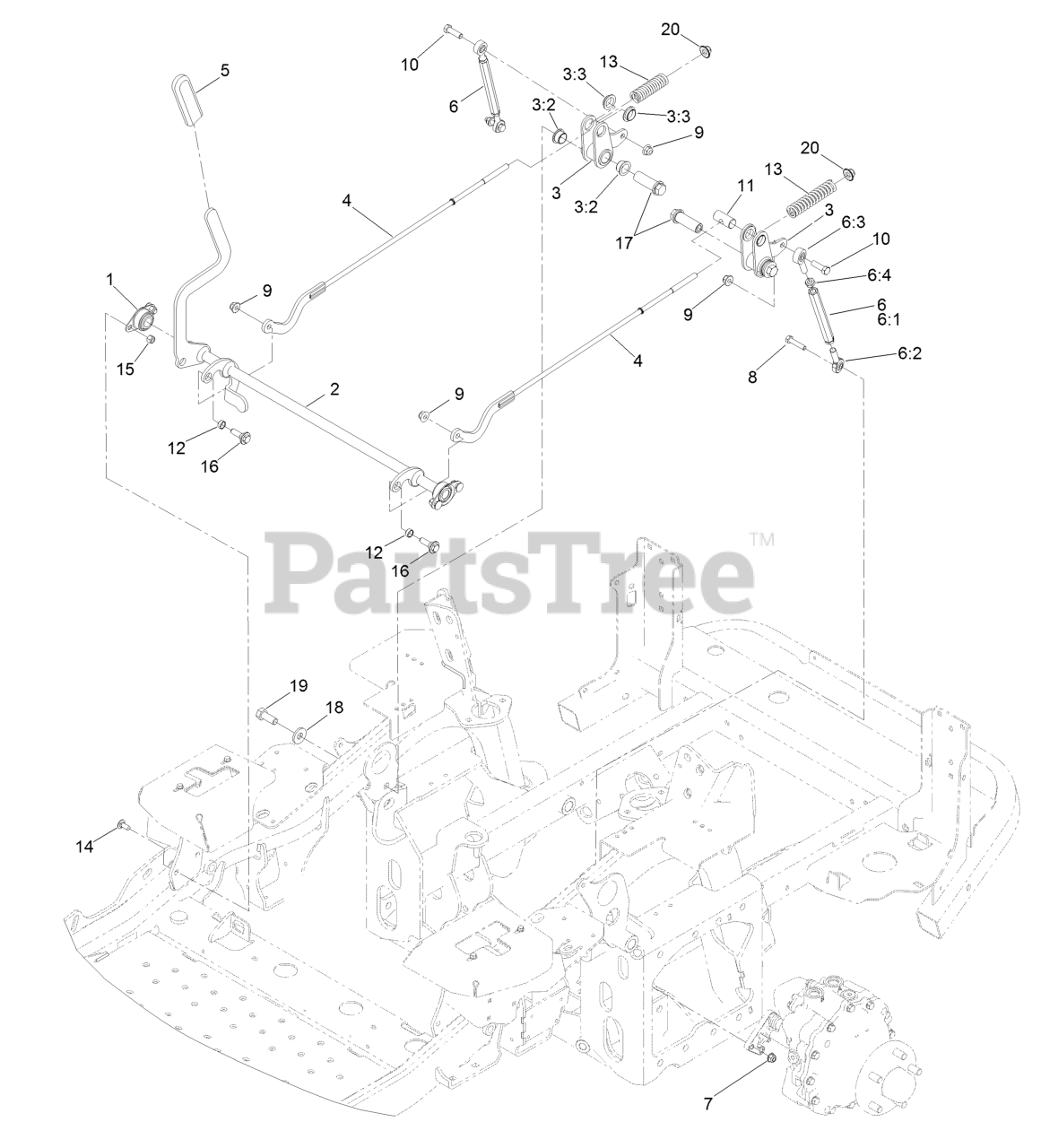

Parking Brake Assembly Parts Diagram

  • Title
1

Exmark 1-633102

Bearing-Flange, Side

$18.99

$

In Stock, only 2 left!

0

2

Exmark 126-2019

Shaft-Brake

$148.99

$

Usually ships in 3-6 days

0

3

Exmark 126-3010

Brake Bellcrank ASM

$90.99

$

Usually ships in 3-6 days

0

3:2

Exmark 109-8054

Bushing-Flange

$5.49

$

In Stock, Qty 20+

0

3:3

Exmark 135-2840

Bushing-Flange

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 126-3193

Link-Brake, Upper

$58.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633268

Grip-Lever

$14.99

$

In Stock, only 4 left!

0

6

Exmark 126-9171

Turnbuckle ASM

$86.99

$

Usually ships in 3-6 days

0

6:1

Exmark 126-9172

Turnbuckle

$42.99

$

Usually ships in 3-6 days

0

6:2

Exmark 126-9302

Bearing-End, LH Rod

$18.99

$

Usually ships in 3-6 days

0

6:3

Exmark 1-613204

Balljoint

$31.99

$

In Stock, only 2 left!

0

6:4

Exmark 3220-3

Nut-HJ

$0.99

$

In Stock, Qty 17

0

7

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 17

0

8

Exmark 322-7

Screw-HH

$1.49

$

In Stock, Qty 20+

0

9

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 323-7

Screw-HH

$2.99

$

In Stock, Qty 20+

0

11

Exmark 1-633144

Pin-Trunion

$13.99

$

Usually ships in 3-6 days

0

12

Exmark 133-5109

Bearing-Sleeve

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 109-2230

Spring-Compression

$8.99

$

Usually ships in 3-6 days

0

14

Exmark 3230-23

Screw-CARR

$1.49

$

In Stock, Qty 20+

0

15

Exmark 3296-29

Nut-Lock, NI

$2.49

$

In Stock, Qty 20+

0

16

Exmark 614672

Screw-Shoulder, HWH

$2.99

$

In Stock, Qty 6

0

17

Exmark 109-5891

Hub-Threaded

$14.99

$

In Stock, only 2 left!

0

18

Exmark 1-513435

Washer-Spring

$5.49

$

In Stock, Qty 13

0

19

Exmark 325-5

Screw-HH

$1.49

$

In Stock, Qty 6

0

20

Exmark 109-6658

Nut-Flange, NI

$1.49

$

In Stock, Qty 20+

0
