LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Fuel Line Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

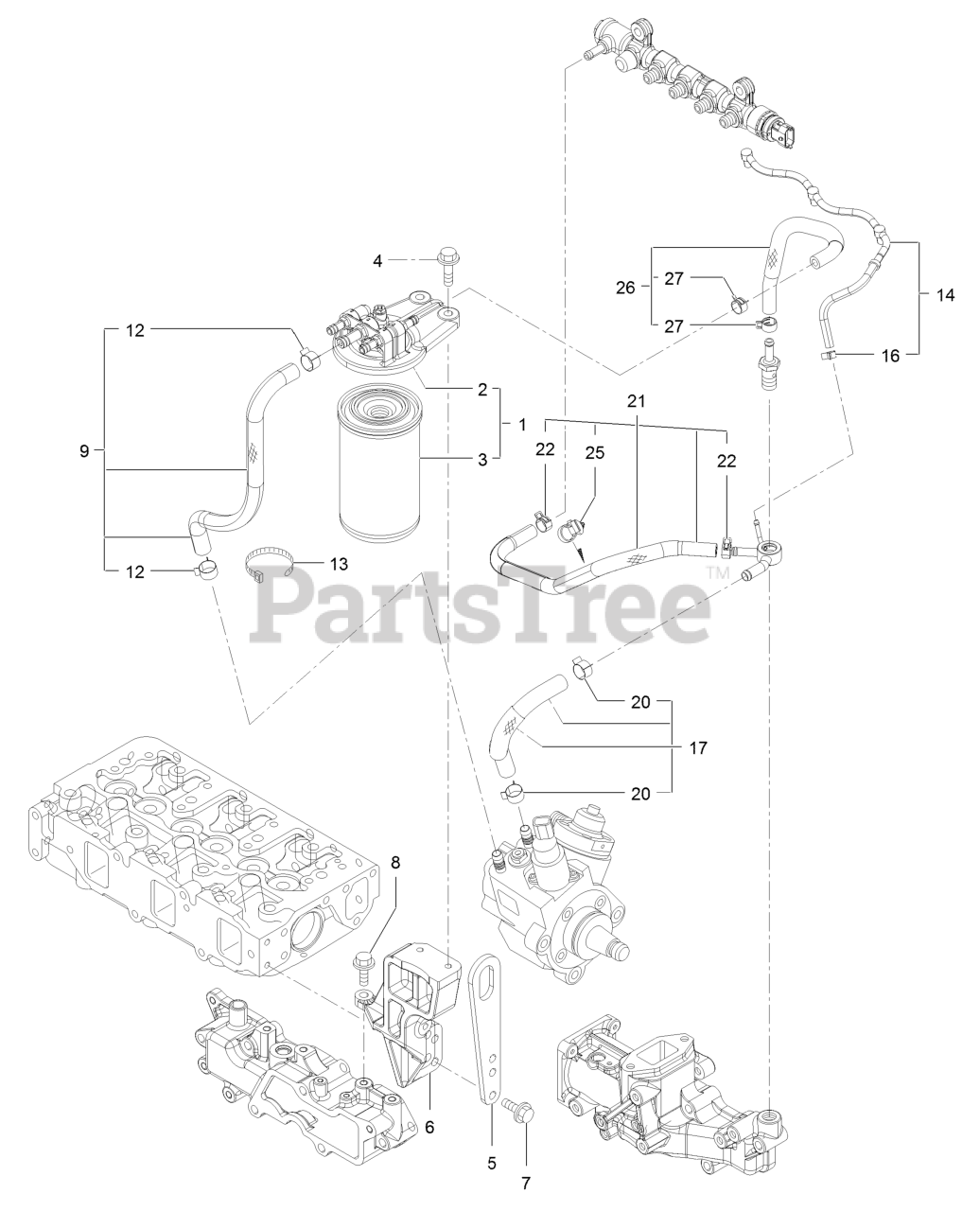

Fuel Line Assembly Parts Diagram

  • Title

1

Exmark 127-3075

Fuel/Oil Filter ASM

$275.99

$

Usually ships in 3-6 days

0

2

Exmark 127-3076

Fuel/Oil Filter Bracket ASM

$119.99

$

Usually ships in 3-6 days

0

3

Exmark 125-8752

Filter-Fuel/Oil

$101.99

$

In Stock, Qty 6

0

4

Exmark 125-7216

Bolt

$3.99

$

Usually ships in 3-6 days

0

5

Exmark 125-7111

Lifter

$9.99

$

Usually ships in 3-6 days

0

6

Exmark 127-3815

Filter Bracket ASM

$84.99

$

Usually ships in 3-6 days

0

7

Exmark 125-7215

Bolt

$3.99

$

Usually ships in 3-6 days

0

8

Exmark 125-7215

Bolt

$3.99

$

Usually ships in 3-6 days

0

9

Exmark 127-3077

Fuel Pipe ASM

$100.99

$

Usually ships in 3-6 days

0

12

Exmark 125-7191

Clamp-Hose

$17.99

$

Usually ships in 3-6 days

0

13

Exmark 127-2981

Band

$

$

Currently unavailable

14

Exmark 135-4023

Pipe ASM-Fo Return

$315.99

$

Usually ships in 3-6 days

0

16

Exmark 127-3172

Clamp-Hose

$6.49

$

Usually ships in 3-6 days

0

17

Exmark 127-3078

Fuel Pipe ASM

$129.99

$

Usually ships in 3-6 days

0

20

Exmark 125-7191

Clamp-Hose

$17.99

$

Usually ships in 3-6 days

0

21

Exmark 127-3817

Fuel Pipe ASM

$165.99

$

Usually ships in 3-6 days

0

22

Exmark 127-2950

Clip-Hose

$6.99

$

Usually ships in 3-6 days

0

25

Exmark 127-3087

Band-Clip

$2.99

$

Usually ships in 3-6 days

0

26

Exmark 127-3079

Fuel Pipe ASM

$94.99

$

Usually ships in 3-6 days

0

27

Exmark 127-2950

Clip-Hose

$6.99

$

Usually ships in 3-6 days

0
