LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Flywheel Housing and Oil Sump Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

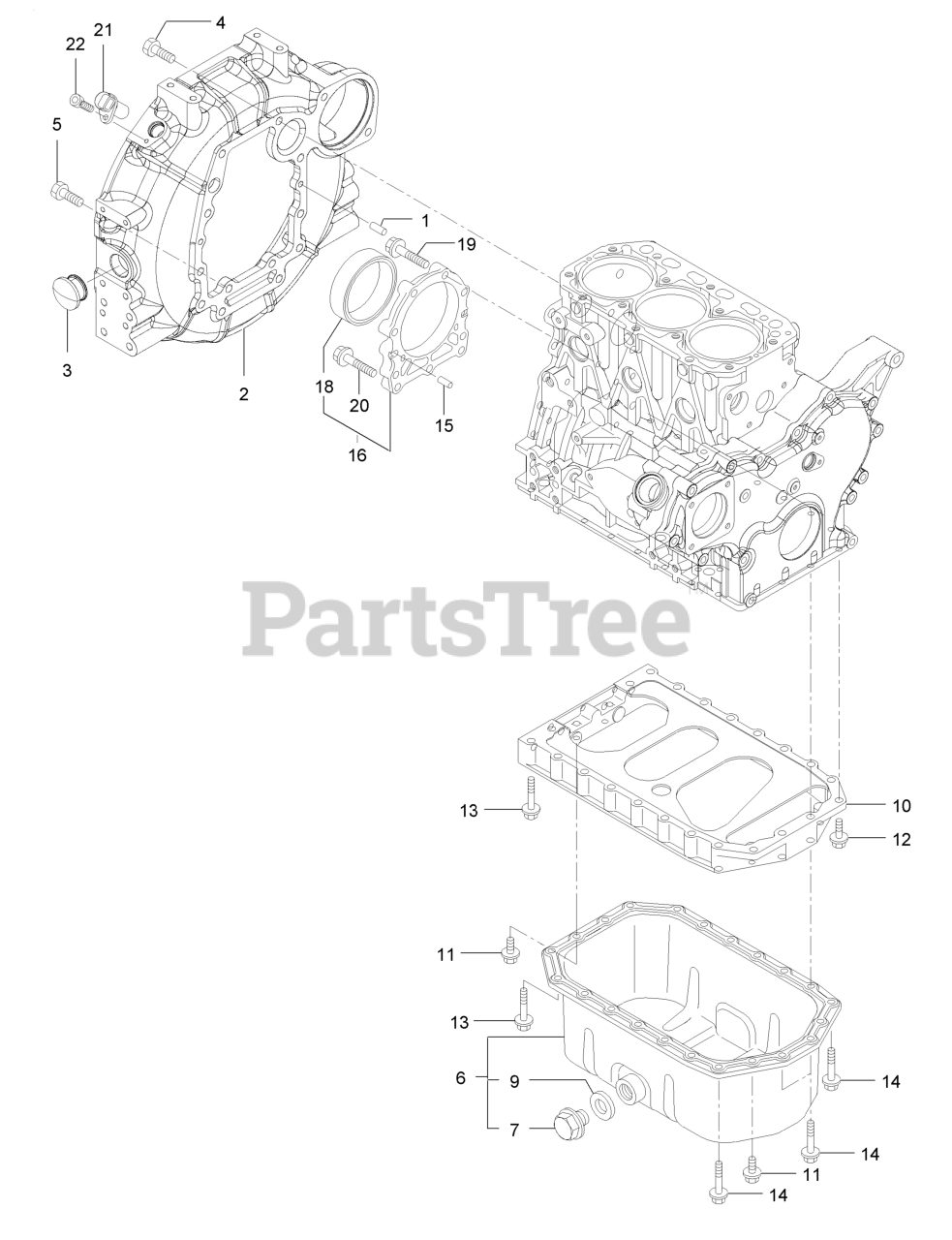

Flywheel Housing and Oil Sump Assembly Parts Diagram

  • Title

1

Exmark 125-6995

Pin

$6.99

$

Usually ships in 3-6 days

0

2

Exmark 127-4758

Housing-Flywheel

$1655.99

$

Usually ships in 3-6 days

0

3

Exmark 125-6910

Cap

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 125-7226

Bolt

$4.99

$

Usually ships in 3-6 days

0

5

Exmark 125-7227

Bolt

$5.99

$

Usually ships in 3-6 days

0

6

Exmark 135-4010

Oil Pan ASM

$882.99

$

Usually ships in 3-6 days

0

7

Exmark 125-6912

Plug-Drain

$28.99

$

Usually ships in 3-6 days

0

9

Exmark 125-7177

Washer-Seal

$7.49

$

Usually ships in 3-6 days

0

10

Exmark 127-3756

Spacer

$656.99

$

Usually ships in 3-6 days

0

11

Exmark 100-6928

Bolt
(Superseded to 125-7214)

$4.99

$

Usually ships in 3-6 days

0

12

Exmark 125-7215

Bolt

$4.49

$

Usually ships in 3-6 days

0

13

Exmark 125-7219

Bolt

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 125-7220

Bolt

$5.99

$

Usually ships in 3-6 days

0

15

Exmark 125-6995

Pin

$6.99

$

Usually ships in 3-6 days

0

16

Exmark 135-4011

Case ASM

$397.99

$

Usually ships in 3-6 days

0

18

Exmark 125-7106

Seal-Oil

$27.99

$

Usually ships in 3-6 days

0

19

Exmark 125-7045

Bolt

$7.49

$

Usually ships in 3-6 days

0

20

Exmark 125-7217

Bolt

$5.49

$

Usually ships in 3-6 days

0

21

Exmark 127-3062

Sensor-Rev, Flywheel

$176.99

$

Usually ships in 3-6 days

0

22

Exmark 127-3184

Bolt

$5.49

$

Usually ships in 3-6 days

0
