LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

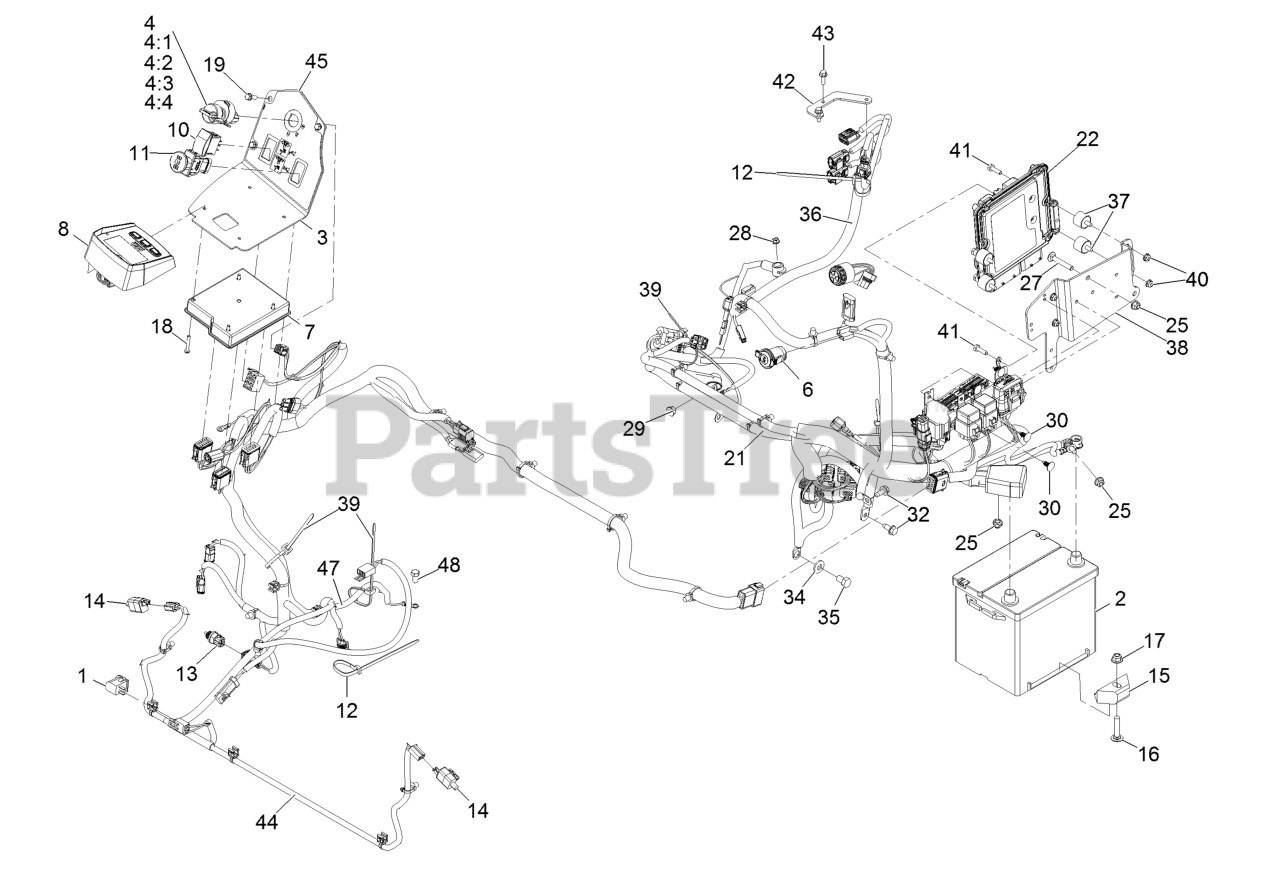

Electrical Assembly Parts Diagram

  • Title

1

Exmark 82-2190

Switch

$14.99

$

In Stock, Qty 20+

0

2

Battery-Dry

$

$

Not available

3

Asm-Console W/Decal

$

$

Not available

4

Exmark 126-6285

Ignition Switch ASM

$54.99

$

In Stock, Qty 20+

0

4:1

Switch-Ignition

$

$

Not available

4:2

Exmark 108-8660

Nut-Mounting

$35.99

$

In Stock, only 3 left!

0

4:3

Exmark 106-5270

Ignition Key Set

$22.99

$

In Stock, Qty 18

0

4:4

Exmark 108-8659

Washer-Backup

$14.99

$

In Stock, only 1 left!

0

6

Exmark 126-6499

Port-Power, 12V

$15.99

$

In Stock, only 2 left!

0

7

Exmark 135-3427

Module-Mcu

$386.99

$

Usually ships in 3-6 days

0

8

Exmark 126-4232

Module, Ldu

$455.99

$

In Stock, only 2 left!

0

10

Exmark 100-1535

Switch, (On)-Off-(On)

$90.99

$

In Stock, only 3 left!

0

11

Exmark 126-6187

Switch-PTO, Sealed

$54.99

$

In Stock, Qty 20+

0

12

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

13

Exmark 126-7698

Sensor-Temperature

$94.99

$

In Stock, only 2 left!

0

14

Exmark 110-6765

Switch

$13.99

$

In Stock, Qty 20+

0

15

Exmark 66-2490

Retainer-Battery
(Superseded to 138-6335)

$11.99

$

Usually ships in 3-6 days

0

16

Exmark 3231-5

Bolt-Carriage 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

0

17

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

18

Exmark 126-5092

Screw-PPH

$3.49

$

In Stock, Qty 8

0

19

Exmark 32105-15

Screw-Machine 1/4-20 X 3/4

$2.99

$

In Stock, Qty 20+

0

21

Exmark 126-7406

Cable-Battery

$171.99

$

Usually ships in 3-6 days

0

22

Exmark 127-3085

E C U ASM
(Superseded to 121-5592)

$3620.99

$

Usually ships in 3-6 days

0

25

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

27

Exmark 3230-6

Bolt-Carriage 3/16-18 X 2

$1.49

$

In Stock, Qty 11

0

28

Exmark 33003-00

Nut-Hex M6-1 Flg

$0.99

$

Usually ships in 3-6 days

0

29

Exmark 127-2371

Nut-HF

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 117-2382

Plug-Plastic

$0.99

$

In Stock, Qty 20+

0

32

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

34

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

35

Exmark 33115-016

Screw-HH

$2.49

$

Usually ships in 3-6 days

0

36

Exmark 126-7352

Harness-Wire
(Superseded to 142-7958)

$899.99

$

Usually ships in 3-6 days

0

37

Exmark 125-2674

Mount-Cylindrical

$6.99

$

Usually ships in 3-6 days

0

38

Exmark 126-8706-03

Mount-Control Unit, Engine

$45.99

$

Usually ships in 3-6 days

0

39

Exmark 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8

0

40

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

41

Exmark 321-5

Screw-HH 1/4-20 X 7/8

$0.99

$

In Stock, Qty 20+

0

42

Exmark 135-0071

Bracket-Wiring, Engine

$11.99

$

Usually ships in 3-6 days

0

43

Exmark 33103-020

Screw-HHF

$3.99

$

Usually ships in 3-6 days

0

44

Exmark 126-8269

Harness-Wire

$664.99

$

Usually ships in 3-6 days

0

45

Exmark 135-0398

Decal-Console

$17.99

$

Usually ships in 3-6 days

0

47

Exmark 135-3998

Harness-Wire, Jumper

$30.99

$

Usually ships in 3-6 days

0

48

Exmark 99-5132

Bolt
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0
