LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Deck Lift Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

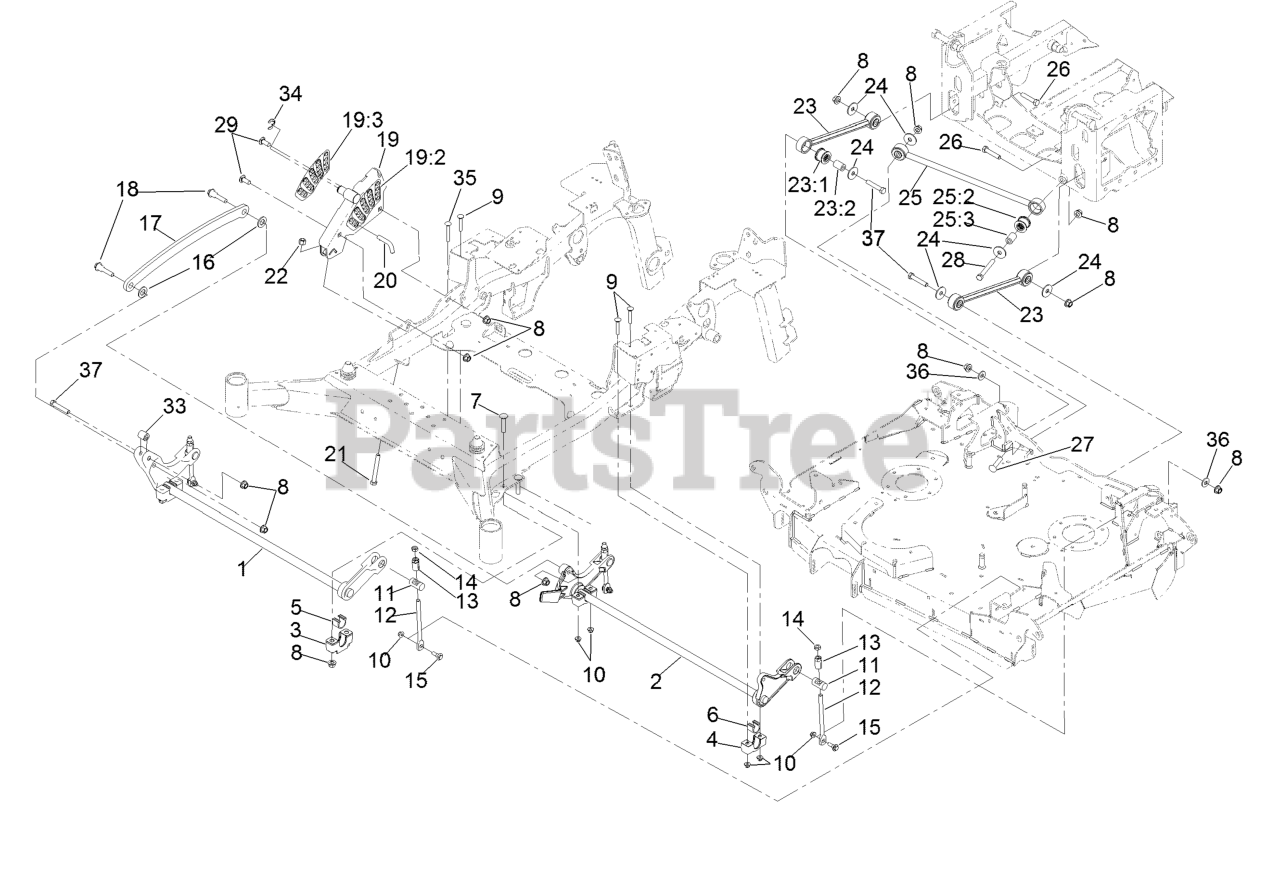

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 135-1216-03

Decklift-Front

$394.99

$

Usually ships in 3-6 days

0

2

Exmark 116-2645-03

Lift-Deck, Rear

$394.99

$

Usually ships in 3-6 days

0

3

Exmark 109-9409

Support-Cross Shaft, Bearing

$14.99

$

In Stock, only 4 left!

0

4

Exmark 127-0553

Support-Cross Shaft, Bearing Rear

$14.99

$

In Stock, only 4 left!

0

5

Exmark 109-9410

Bearing-Cross Shaft, Front

$5.49

$

In Stock, Qty 13

0

6

Exmark 109-7173

Bearing-Cross Shaft, Rear

$5.49

$

In Stock, Qty 6

0

7

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

0

8

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

9

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 14

0

10

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 109-8353

Trunnion

$14.99

$

In Stock, Qty 6

0

12

Exmark 109-8007

Link-Adjuster, Deck Lift

$15.99

$

In Stock, Qty 11

0

13

Exmark 109-7840

Adjuster-Lift, Deck

$7.99

$

In Stock, Qty 10

0

14

Exmark 3218-5

Nut-Jam 1/2-13

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-9840

Screw-Hex Flange 3/8-16 X .80

$5.49

$

In Stock, Qty 11

0

16

Exmark 3256-28

Washer-3/4 SAE

$3.49

$

In Stock, Qty 20+

0

17

Exmark 116-0797-03

Link-Lift, Deck

$136.99

$

Usually ships in 3-6 days

0

18

Exmark 116-2022

Screw-Hex Flange 1/2-13 X 1.90

$8.99

$

Usually ships in 3-6 days

0

19

Exmark 126-7866

HOC ASM

$311.99

$

Usually ships in 3-6 days

0

19:2

Exmark 126-9275

Decal-Height Of Cut

$17.99

$

Usually ships in 3-6 days

0

19:3

Exmark 135-1432

Decal-Height Of Cut, Outer

$17.99

$

Usually ships in 3-6 days

0

20

Exmark 116-5584

Pin-HOC

$5.49

$

In Stock, only 4 left!

0

21

Exmark 116-0559

Bolt-HH 1/2-13 X 4 Tap

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 3296-23

Nut-Nyloc 1/2-13

$1.49

$

In Stock, Qty 20+

0

23

Exmark 109-0966

Deck Strut ASM
(Superseded to 142-4003)

$42.99

$

Usually ships in 3-6 days

0

23:1

Exmark 109-5009

Bushing-Suspension, Rubber

$5.49

$

In Stock, Qty 15

0

23:2

Exmark 109-5010

Spacer

$12.99

$

In Stock, Qty 6

0

24

Exmark 86-1990

Washer

$3.99

$

In Stock, only 3 left!

0

25

Exmark 109-5013

Panhard Rod ASM

$142.99

$

In Stock, Qty 6

0

25:2

Exmark 109-5009

Bushing-Suspension, Rubber

$5.49

$

In Stock, Qty 15

0

25:3

Exmark 109-5010

Spacer

$12.99

$

In Stock, Qty 6

0

26

Exmark 325-10

Screw-HH 1/2-13 X 2 1/2

$5.49

$

In Stock, Qty 6

0

27

Exmark 3233-34

Bolt-Carriage 1/2-13 X 2 1/2

$9.49

$

In Stock, only 3 left!

0

28

Exmark 325-17

Screw-HH 1/2-13 X 4

$5.99

$

In Stock, only 1 left!

0

29

Exmark 3233-26

Screw-CARR, Short Neck

$2.99

$

Usually ships in 3-6 days

0

33

Exmark 135-1215

Spacer-Pivot

$14.99

$

Usually ships in 3-6 days

0

34

Exmark 32151-91

Ring-Retaining

$2.49

$

In Stock, Qty 5

0

35

Exmark 3231-9

Bolt-Carriage 3/8-16 X 2 3/4

$2.49

$

In Stock, Qty 7

0

36

Exmark 1-513435

Washer-Spring Disc 1/2

$5.49

$

In Stock, Qty 13

0

37

Exmark 325-11

Screw-HH 1/2-13 X 2 3/4

$2.99

$

In Stock, Qty 7

0
