LZS88CDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Hydraulic Lift and Fold Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

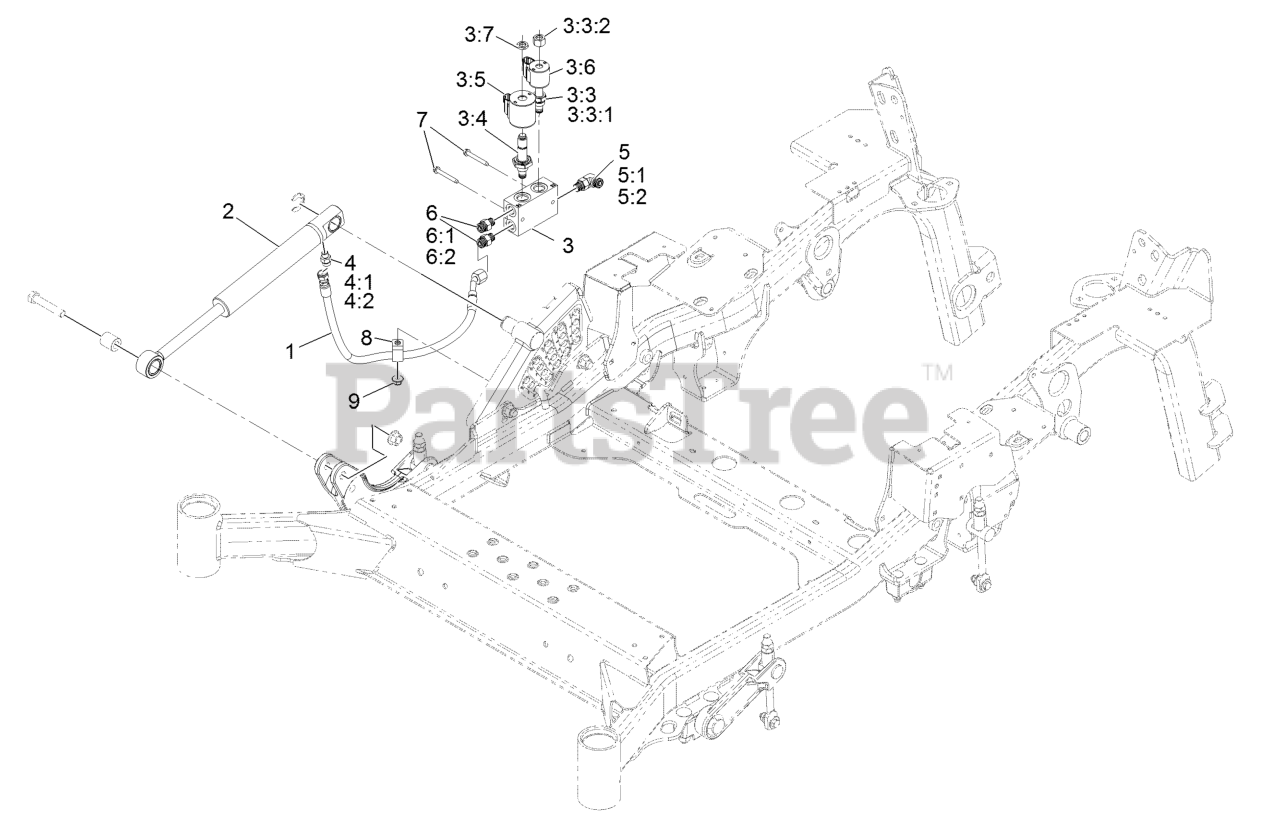

Hydraulic Lift and Fold Assembly Parts Diagram

  • Title

1

Exmark 126-8683

Hose ASM

$68.99

$

Usually ships in 3-6 days

0

2

Exmark 126-7841

Cylinder-Lift

$547.99

$

Usually ships in 3-6 days

0

3

Exmark 131-1934

Deck Lift Valve ASM

$842.99

$

Usually ships in 3-6 days

0

3:3

Exmark 107-7517

Valve-Solenoid

$240.99

$

Usually ships in 3-6 days

0

3:3:1

Exmark 105-9156

Seal Kit

$20.99

$

Usually ships in 3-6 days

0

3:3:2

Exmark 107-7812

Nut-Solenoid

$91.99

$

Usually ships in 3-6 days

0

3:4

Exmark 131-1935

Valve-Solenoid

$348.99

$

Usually ships in 3-6 days

0

3:5

Exmark 115-3021

Coil-12V

$130.99

$

Usually ships in 3-6 days

0

3:6

Exmark 119-8036

Coil

$100.99

$

In Stock, only 1 left!

0

3:7

Exmark 110-2634

Nut-Coil

$7.49

$

Usually ships in 3-6 days

0

4

Exmark 126-8692

Fitting-HYD, Straight

$20.99

$

Usually ships in 3-6 days

0

4:1

Exmark 237-78

O-Ring

$4.49

$

Usually ships in 3-6 days

0

4:2

Exmark 237-21

O-Ring

$0.99

$

In Stock, Qty 10

0

5

Exmark 340-77

Fitting-Elbow, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

5:1

Exmark 237-22

O-Ring

$2.99

$

In Stock, Qty 14

0

5:2

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

6

Exmark 340-2

Fitting-Straight

$12.99

$

In Stock, only 2 left!

0

6:1

Exmark 237-22

O-Ring

$2.99

$

In Stock, Qty 14

0

6:2

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

7

Exmark 117-5248

Screw-HWHTF

$2.99

$

In Stock, Qty 17

0

8

Exmark 1-633396

Clip-Loom 5/8

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0
