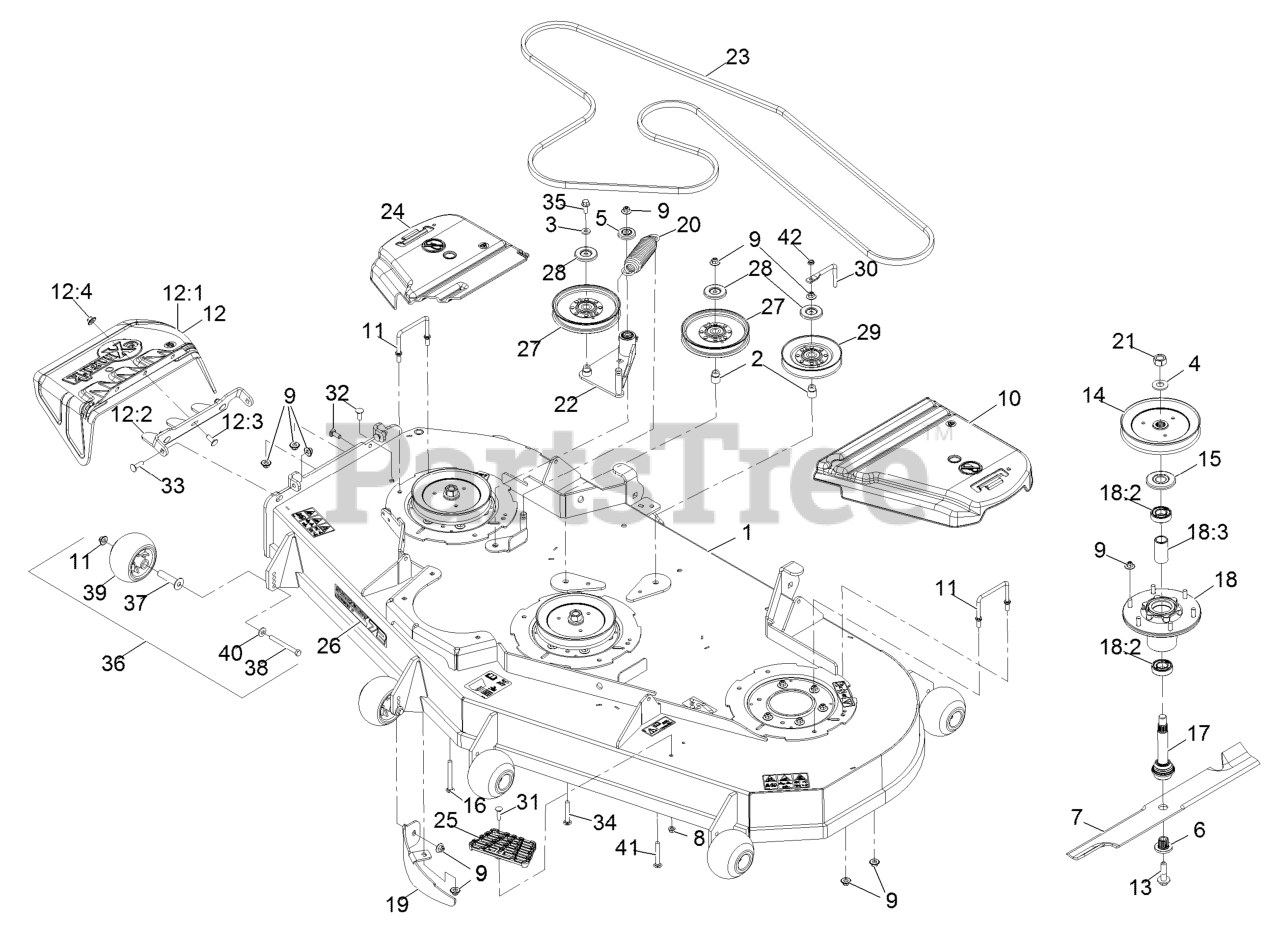

LZS88CDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-0913

Deck-724

$3507.99

$

Usually ships in 3-6 days

0

2

Exmark 1-633456

Bushing, Idler

$5.49

$

In Stock, Qty 20+

0

3

Exmark 43-0940

Spacer

$5.49

$

In Stock, Qty 20+

0

4

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 14

0

5

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 9

0

6

Exmark 103-3037

Bushing, Splined

$22.99

$

In Stock, Qty 20+

0

7

Exmark 103-6394

Blade, Mulching
(Superseded to 103-6394-S)

$38.99

$

In Stock, Qty 20+

0

7

Exmark 103-6404

Blade, Notched (72")
(Superseded to 103-6404-S)

$43.99

$

In Stock, Qty 20+

0

7

Exmark 116-5171

Blade-Extreme 2, 24.50"
(Superseded to 116-5171-S)

$43.99

$

In Stock, Qty 20+

0

7

Exmark 103-6389

Blade, Low Lift (72")
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 20+

0

7

Exmark 103-6384

Blade, Solid (72")
(Superseded to 103-6384-S)

$43.99

$

In Stock, Qty 20+

0

8

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

9

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

10

Exmark 109-6938

Cover-Belt, LH

$96.99

$

In Stock, only 2 left!

0

11

Exmark 109-6982

Wireform-Cover

$11.99

$

In Stock, only 4 left!

0

12

Exmark 109-7188

ASM,Discharge Chute

$104.99

$

In Stock, only 2 left!

0

12:1

Exmark 109-2738

Chute, Discharge

$74.99

$

In Stock, Qty 20+

0

12:2

Exmark 109-8675-01

Bracket,Discharge Chute

$51.99

$

In Stock, only 1 left!

0

12:3

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

12:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

13

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

14

Exmark 116-0676

Sheave,Blade Drive 7.25

$68.99

$

In Stock, Qty 20+

0

15

Exmark 116-1286

Guard,Bearing Top .989

$5.49

$

In Stock, Qty 20+

0

16

Exmark 116-1502

Bolt-Carriage Shoulder 3/8-16 X 3 1/2

$7.99

$

In Stock, only 4 left!

0

17

Exmark 116-3341

ASM-Spindle And Seal

$89.99

$

In Stock, Qty 20+

0

18

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$158.99

$

In Stock, Qty 20+

0

18:2

Exmark 116-0720

Bearing-Ball

$22.99

$

In Stock, Qty 20+

0

18:3

Exmark 116-3312

Spacer-Bearing

$9.49

$

In Stock, Qty 5

0

19

Exmark 116-5834-01

Baffle-Dogleg, Lz72

$75.99

$

Usually ships in 3-6 days

0

20

Exmark 116-6317

Spring-Extension

$28.99

$

In Stock, Qty 7

0

21

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 20+

0

22

Exmark 126-2585

Idler Arm ASM

$174.99

$

In Stock, only 1 left!

0

23

Exmark 126-3509

Belt-V

$170.99

$

In Stock, only 2 left!

0

24

Exmark 126-3527

Shield-Belt

$107.99

$

Usually ships in 3-6 days

0

25

Exmark 126-4781-03

Step-Deck

$26.99

$

Usually ships in 3-6 days

0

26

Exmark 126-6590

Decal, 724

$8.99

$

In Stock, only 4 left!

0

27

Exmark 126-7685

Idler-Pulley

$62.99

$

In Stock, Qty 20+

0

28

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, only 2 left!

0

29

Exmark 126-8766

Idler V

$94.99

$

Usually ships in 3-6 days

0

30

Exmark 135-0362

Guide-Belt

$26.99

$

Usually ships in 3-6 days

0

31

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

32

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

33

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

34

Exmark 3231-44

Bolt-Carriage 3/8-16 X 2 1/2

$2.99

$

In Stock, Qty 14

0

35

Exmark 3234-11

Screw-HH Flg 3/8-16 X 1

$4.49

$

In Stock, Qty 20+

0

36

Exmark 116-9981

Kit, Anti-Scalp Roller

$52.99

$

In Stock, Qty 20+

0

37

Exmark 116-8131

Axle, Roller

$12.99

$

In Stock, Qty 12

0

38

Exmark 116-9362

Screw-HH 3/8-16 X 3 3/4

Note: GR 8

$2.99

$

In Stock, Qty 17

0

39

Exmark 103-8415

Roller-Anti-Scalp

$23.99

$

In Stock, Qty 20+

0

40

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

41

Exmark 3231-9

Bolt-Carriage 3/8-16 X 2 3/4

$2.49

$

In Stock, Qty 7

0

42

Exmark 3296-59

Nut-Nyloc 3/8-16 Thin
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0
