LZS88CDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Cooling Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

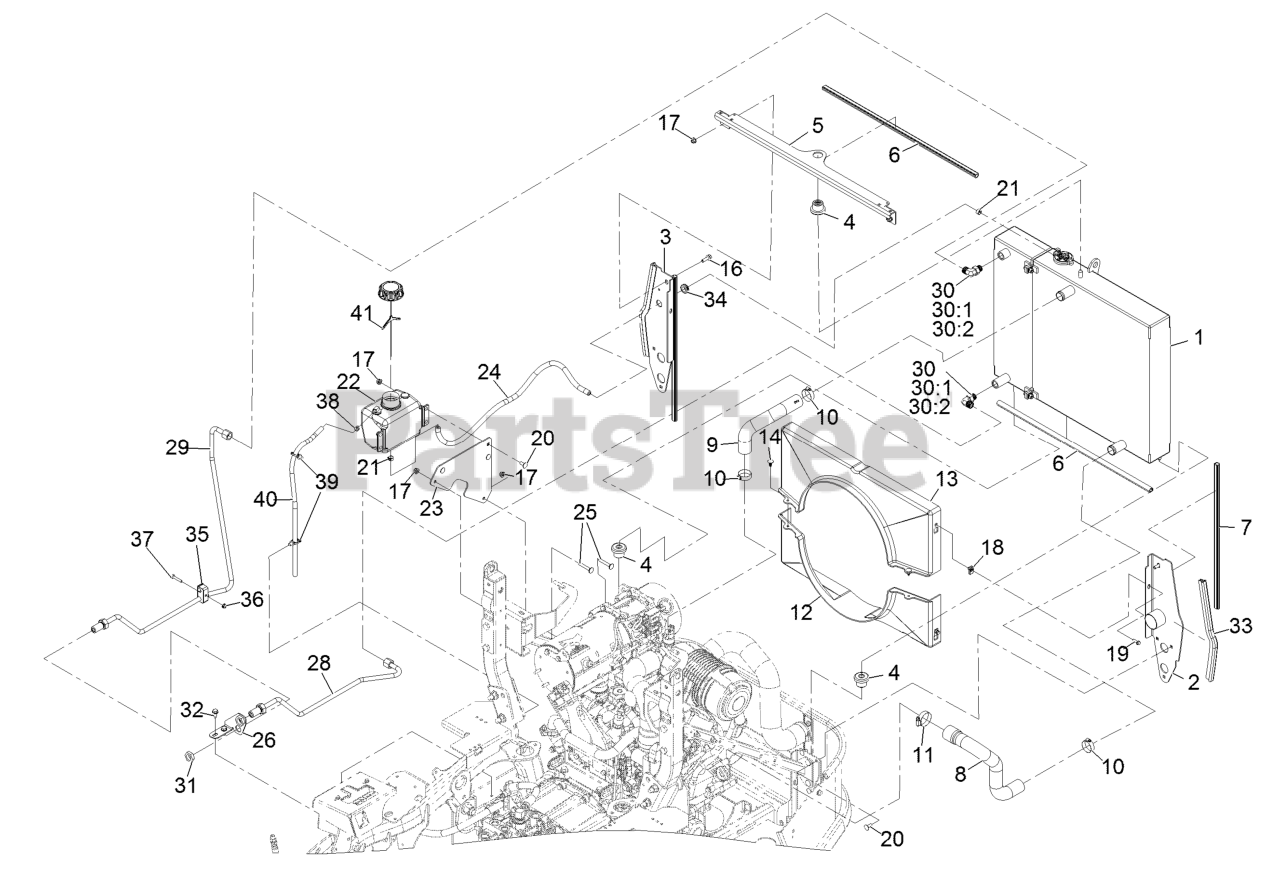

Cooling Assembly Parts Diagram

  • Title

1

Exmark 121-3330

Cooling ASM

$2007.99

$

Usually ships in 3-6 days

0

2

Exmark 126-9026-03

Support-Radiator, LH

$58.99

$

Usually ships in 3-6 days

0

3

Exmark 126-9028-03

Support-Radiator, RH

$38.99

$

Usually ships in 3-6 days

0

4

Exmark 119-1422

Mount-Isolator

$20.99

$

Usually ships in 3-6 days

0

5

Exmark 120-0068-03

Bracket-Cooling, Top

$54.99

$

Usually ships in 3-6 days

0

6

Exmark 119-1427

Seal-Bulb

$16.99

$

Usually ships in 3-6 days

0

7

Exmark 119-1426

Seal-Bulb

$14.99

$

Usually ships in 3-6 days

0

8

Exmark 121-3322

Hose-Radiator, Lower

$91.99

$

Usually ships in 3-6 days

0

9

Exmark 121-3321

Hose-Radiator, Upper

$91.99

$

In Stock, only 4 left!

0

10

Exmark 2412-34

Clamp-Hose

$2.49

$

In Stock, only 3 left!

0

11

Exmark 2412-130

Clamp-Hose

$4.49

$

Usually ships in 3-6 days

0

12

Exmark 121-3311

Shroud-Bottom

$154.99

$

Usually ships in 3-6 days

0

13

Exmark 121-3312

Shroud-Top

$154.99

$

Usually ships in 3-6 days

0

14

Exmark 117-2382

Plug-Plastic

$0.99

$

In Stock, Qty 20+

0

16

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 20+

0

17

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

18

Exmark 107069

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

19

Exmark 32105-15

Screw-Machine 1/4-20 X 3/4

$2.99

$

In Stock, Qty 20+

0

20

Exmark 3230-23

Bolt-Carriage 5/16-18 X 3/4 Short Neckv

$1.49

$

In Stock, Qty 20+

0

21

Exmark 92-2379

Clamp-Hose

$0.99

$

Usually ships in 3-6 days

0

22

Exmark 135-4692

Tank-Overflow, W/Cap

$84.99

$

Usually ships in 3-6 days

0

23

Exmark 126-9178-03

Bracket-Bottle

$21.99

$

Usually ships in 3-6 days

0

24

Exmark 126-7648

Hose

$19.99

$

Usually ships in 3-6 days

0

25

Exmark 3230-6

Bolt-Carriage 3/16-18 X 2

$1.49

$

In Stock, Qty 11

0

26

Exmark 126-6781-03

Bracket-Bulkhead

$13.99

$

Usually ships in 3-6 days

0

28

Exmark 126-8691

Hydraulic Tube ASM

$75.99

$

Usually ships in 3-6 days

0

29

Exmark 126-8690

Hydraulic Tube ASM

$81.99

$

Usually ships in 3-6 days

0

30

Exmark 340-98

Fitting-Elbow, 90 DEG

$33.99

$

In Stock, only 2 left!

0

30:1

Exmark 237-79

O-Ring

$5.99

$

In Stock, Qty 7

0

30:2

Exmark 237-30

O-Ring

$2.99

$

In Stock, Qty 14

0

31

Exmark 340-127

Nut-Bulkhead

$7.49

$

Usually ships in 3-6 days

0

32

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

33

Exmark 126-6847

Seal-Bulb

$12.99

$

Usually ships in 3-6 days

0

34

Exmark 237-124

Grommet

$2.99

$

In Stock, only 1 left!

0

35

Exmark 135-0641

Clamp-Twin

$6.49

$

Usually ships in 3-6 days

0

36

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

37

Exmark 321-13

Screw-HH 1/4-20 X 1 3/8

$4.99

$

In Stock, Qty 10

0

38

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

39

Exmark 32180-030

Clip-Tie

$5.49

$

In Stock, Qty 7

0

40

Exmark 110-4103

Hose-Fuel

$21.99

$

Usually ships in 3-6 days

0

41

Exmark 135-4693

Cap-W/Tether, 2.25

$22.99

$

In Stock, only 4 left!

0
