LZS88CDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Motion Control Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

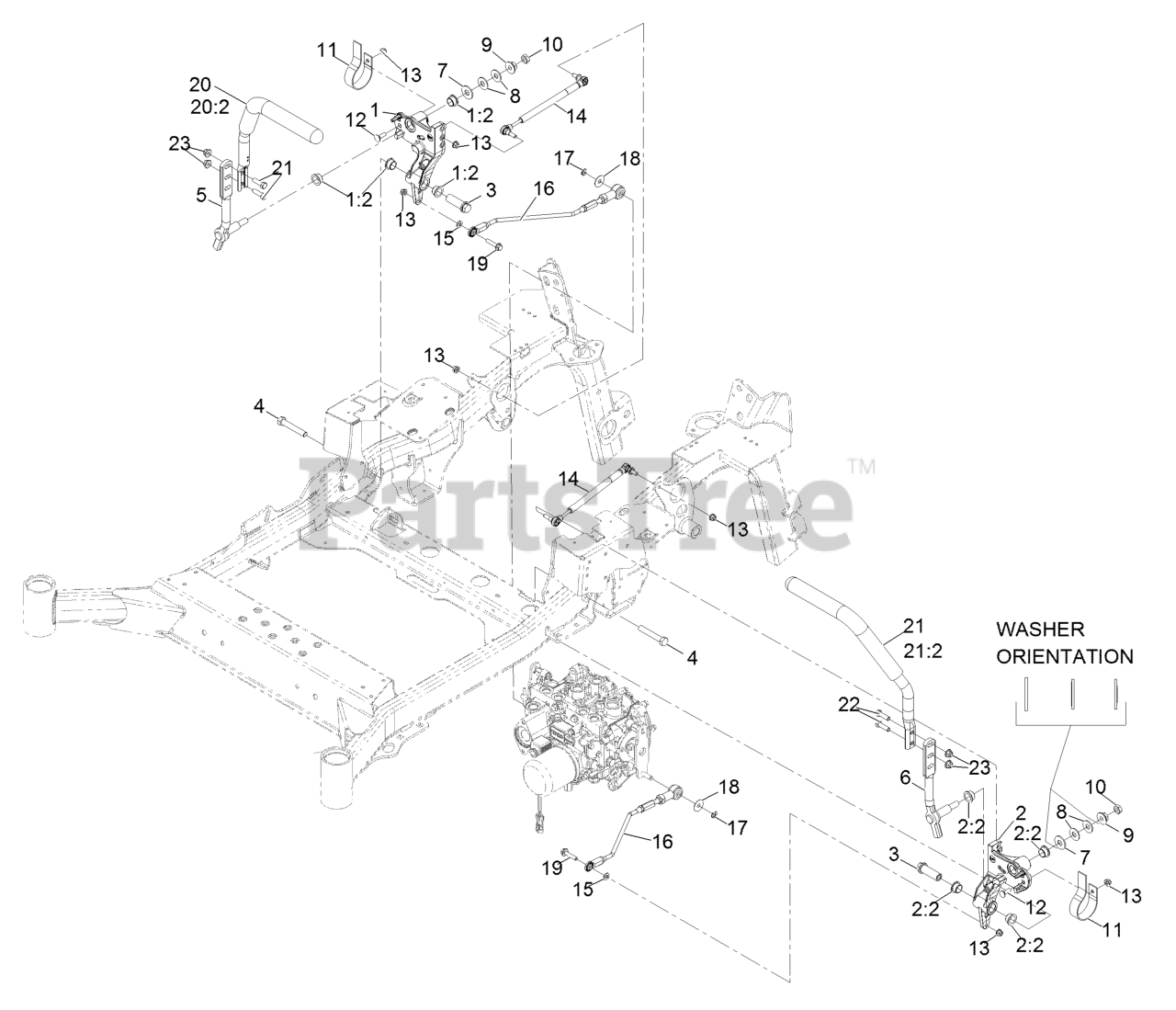

Motion Control Assembly Parts Diagram

  • Title
1

Exmark 116-0880

RH Motion Control And Bushing ASM

$59.99

$

In Stock, only 2 left!

0

1:2

Exmark 109-8054

Bushing-Flanged

$5.49

$

In Stock, Qty 20+

0

2

Exmark 116-0881

LH Motion Control And Bushing ASM

$59.99

$

In Stock, only 3 left!

0

2:2

Exmark 109-8054

Bushing-Flanged

$5.49

$

In Stock, Qty 20+

0

3

Exmark 109-5891

Hub-Threaded

$14.99

$

In Stock, Qty 11

0

4

Exmark 325-12

Screw-HH 1/2-13 X 3

$6.49

$

In Stock, Qty 20+

0

5

Exmark 116-0039

Lever-Control Motion, RH

$53.99

$

In Stock, only 2 left!

0

6

Exmark 116-0040

Lever-Control Motion, LH

$53.99

$

In Stock, only 3 left!

0

7

Exmark 3256-6

Washer

$0.99

$

In Stock, Qty 20+

0

8

Exmark 109-9505

Washer, Spring Disc 1/2

$5.49

$

In Stock, only 3 left!

0

9

Exmark 32128-56

Nut-Hex 1/2-13 Flange

$11.99

$

Usually ships in 3-6 days

0

10

Exmark 3218-5

Nut-Jam 1/2-13

$1.49

$

In Stock, Qty 20+

0

11

Exmark 109-5575

Spring-Leaf

$15.99

$

Usually ships in 3-6 days

0

12

Exmark 3230-2

Bolt-Carriage 5/16-18 X 1

$1.49

$

In Stock, Qty 14

0

13

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

14

Exmark 116-0027

Damper-Control, Motion
(Superseded to 142-8117)

$

$

Not available

15

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

16

Exmark 126-6131

Front Linkage Rod ASM
(Superseded to 142-8447)

$76.99

$

Usually ships in 3-6 days

0

17

Exmark 32151-47

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0

18

Exmark 105-6814

Washer-Plain

$1.49

$

In Stock, Qty 20+

0

19

Exmark 115-1794

Screw-Hex Flange 5/16-18 X 1 1/2

$2.49

$

In Stock, Qty 11

0

20

Exmark 126-7700

RH Steering Handle ASM

$72.99

$

Usually ships in 3-6 days

0

20:2

Exmark 109-5668

Grip-Control, Lever

$14.99

$

In Stock, Qty 7

0

21

Exmark 126-7699

LH Steering Handle ASM

$72.99

$

Usually ships in 3-6 days

0

21:2

Exmark 109-5668

Grip-Control, Lever

$14.99

$

In Stock, Qty 7

0

22

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

23

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0
