LZS88CDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Hood and Console Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

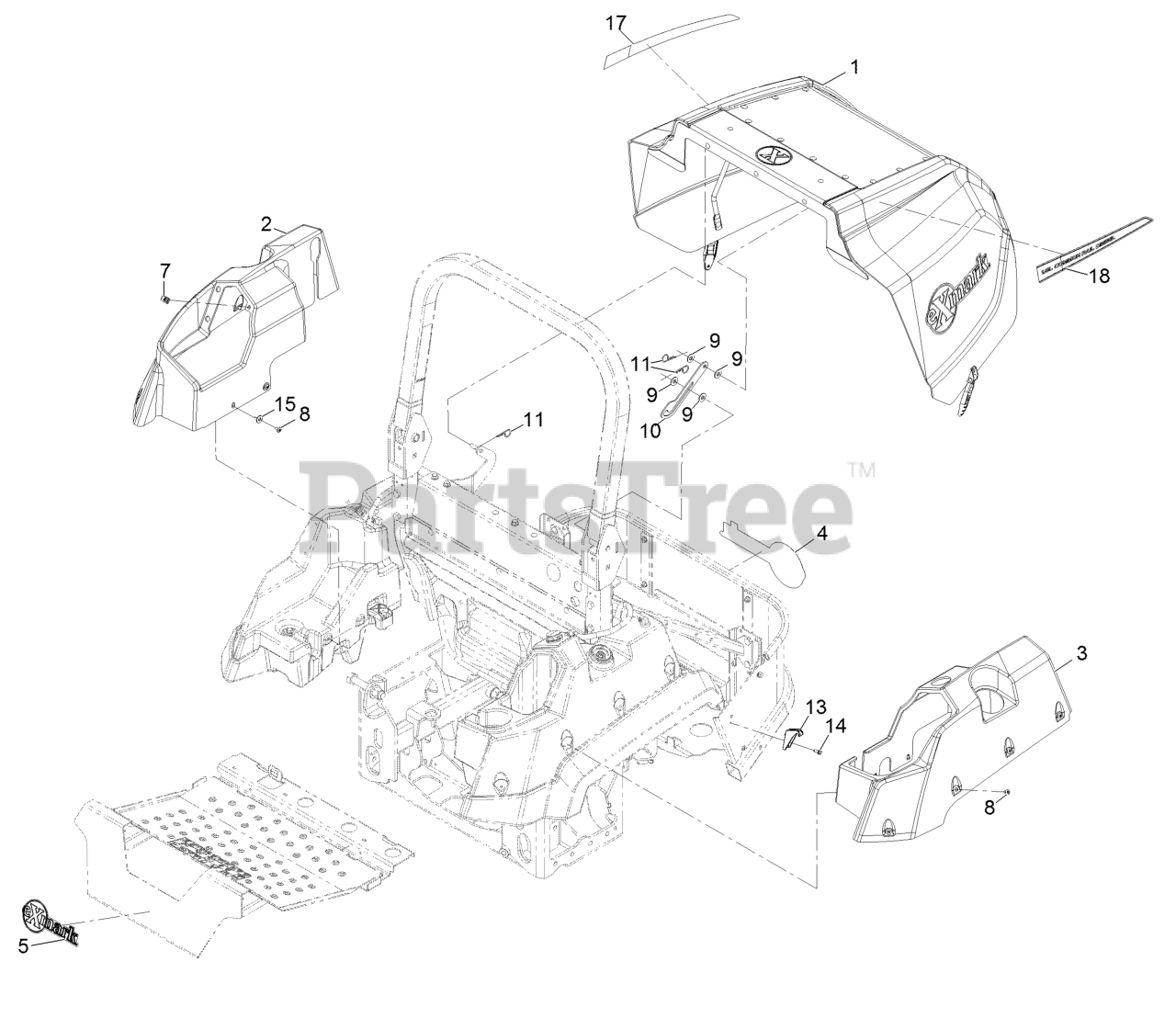

Hood and Console Assembly Parts Diagram

  • Title

1

Hood ASM

$

$

Not available

2

Exmark 126-6787

Cover-Tank, RH

$421.99

$

Usually ships in 3-6 days

0

3

Exmark 126-6790

Cover-Tank, LH

$421.99

$

Usually ships in 3-6 days

0

4

Exmark 126-6992

Decal-Exmark

$18.99

$

In Stock, only 2 left!

0

5

Exmark 135-2274

Decal-Exmark

$26.99

$

In Stock, only 4 left!

0

7

Exmark 107069

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

8

Exmark 126-8216

Screw-Torx

$2.49

$

Usually ships in 3-6 days

0

9

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

10

Exmark 120-9129

Prop-Hood

$17.99

$

In Stock, only 2 left!

0

11

Exmark 3290-255

Pin-Cotter, Hair

$8.99

$

In Stock, only 1 left!

0

13

Exmark 126-8672

Latch-Catch

$5.49

$

In Stock, Qty 15

0

14

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, Qty 15

0

15

Exmark 3256-71

Washer

$1.49

$

In Stock, Qty 5

0

17

Exmark 135-3167

Decal-Common Rail Diesel-RH

$25.99

$

Usually ships in 3-6 days

0

18

Exmark 135-3166

Decal-Common Rail Diesel-LH

$25.99

$

Usually ships in 3-6 days

0
