LZS88CDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

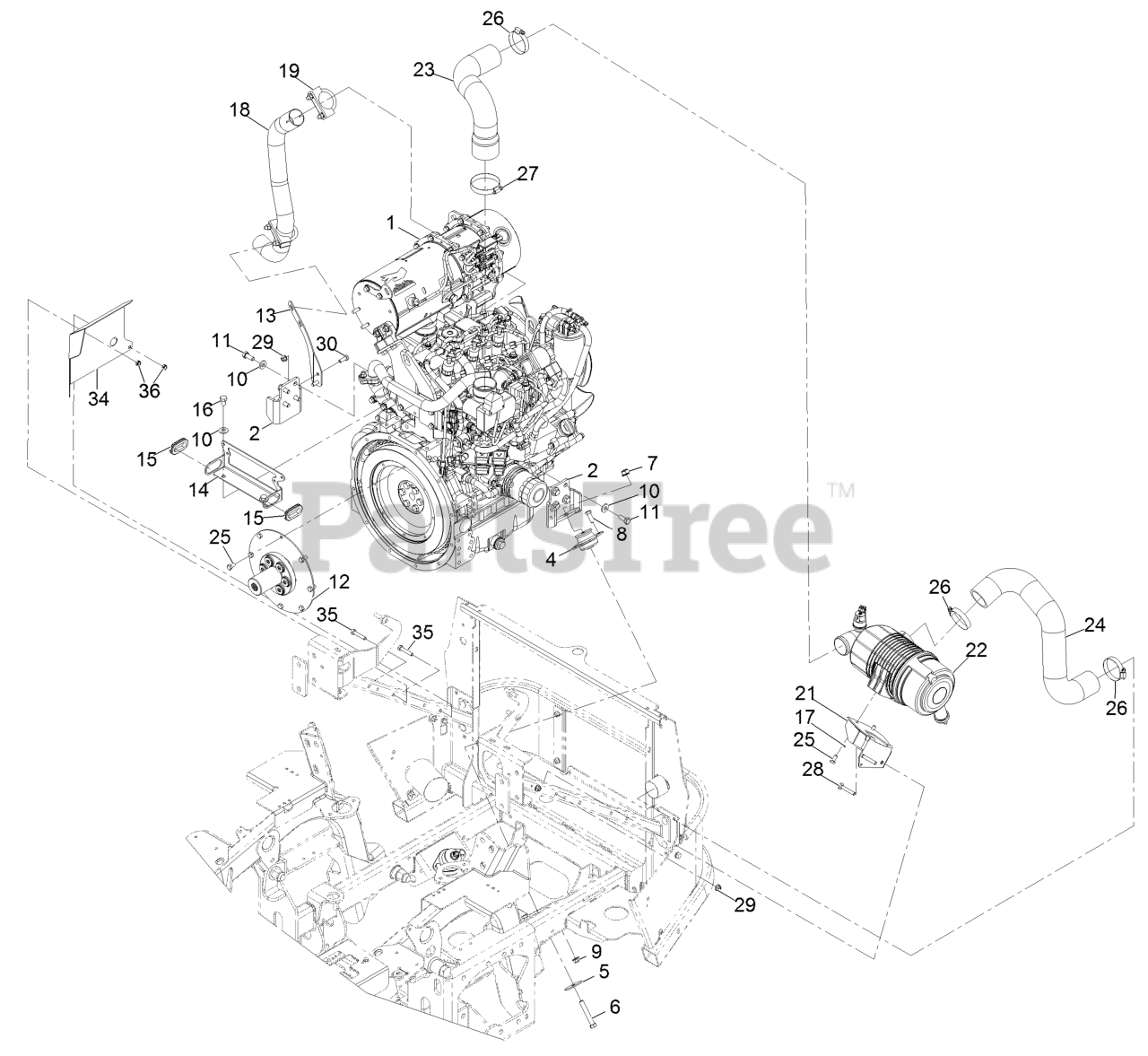

Engine Assembly Parts Diagram

  • Title

1

Exmark 126-9272

Engine-Yanmar, 3Tnv88C-Dtr5
(Superseded to 138-6927)

$19057.99

$

Usually ships in 3-6 days

0

2

Exmark 120-9180-03

Mount-Motor, Upper

$54.99

$

Usually ships in 3-6 days

0

4

Exmark 130-2486

Mount

$38.99

$

Usually ships in 3-6 days

0

5

Exmark 87-5100

Washer-Snubbing

$4.49

$

Usually ships in 3-6 days

0

6

Exmark 324-11

Screw-HH

$4.49

$

Usually ships in 3-6 days

0

7

Exmark 114-8417

Nut-HF, NI

$2.49

$

In Stock, Qty 18

0

8

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.49

$

In Stock, Qty 20+

0

9

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

10

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

11

Exmark 33115-025

Screw-HH M10-1.5 X 35Mm

$1.99

$

Usually ships in 3-6 days

0

12

Exmark 120-9131

Coupling-Flywheel

$607.99

$

Usually ships in 3-6 days

0

13

Exmark 126-8587-03

Bracket-Mount

$17.99

$

Usually ships in 3-6 days

0

14

Exmark 126-7602-03

Bracket-Guide

$36.99

$

Usually ships in 3-6 days

0

15

Exmark 240-7

Grommet-Rubber

$17.99

$

Usually ships in 3-6 days

0

16

Exmark 33115-016

Screw-HH

$2.49

$

Usually ships in 3-6 days

0

17

Exmark 3290-475

Washer-Belleville

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 126-7652

Tube-Exhaust

$82.99

$

Usually ships in 3-6 days

0

19

Exmark 18-2130

Clamp

$36.99

$

Usually ships in 3-6 days

0

21

Exmark 126-8730-03

Bracket-Cleaner, Air

$43.99

$

Usually ships in 3-6 days

0

22

Exmark 126-7646

Air Cleaner ASM
(Superseded to 142-3554)

$192.99

$

In Stock, only 3 left!

0

23

Exmark 120-9199

Hose-Air

$56.99

$

Usually ships in 3-6 days

0

24

Exmark 120-9177

Hose-Air

$79.99

$

Usually ships in 3-6 days

0

25

Exmark 99-5132

Bolt

$16.99

$

In Stock, only 2 left!

0

26

Exmark 2412-130

Clamp-Hose

$4.49

$

Usually ships in 3-6 days

0

27

Exmark 2412-125

Clamp-Hose

$12.99

$

Usually ships in 3-6 days

0

28

Exmark 3230-6

Bolt-Carriage 3/16-18 X 2

$1.49

$

In Stock, Qty 11

0

29

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

30

Exmark 322-4

Screw-HH 5/16-18 X 7/8

$0.99

$

In Stock, Qty 20+

0

34

Exmark 135-3946-03

Deflector-Air

$22.99

$

Usually ships in 3-6 days

0

35

Exmark 322-8

Screw-HH

$3.49

$

In Stock, Qty 6

0

36

Exmark 3296-47

Nut-Nyloc 5/16-18 Thin

$3.99

$

In Stock, Qty 8

0
