LZS88CDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Crankshaft and Piston Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

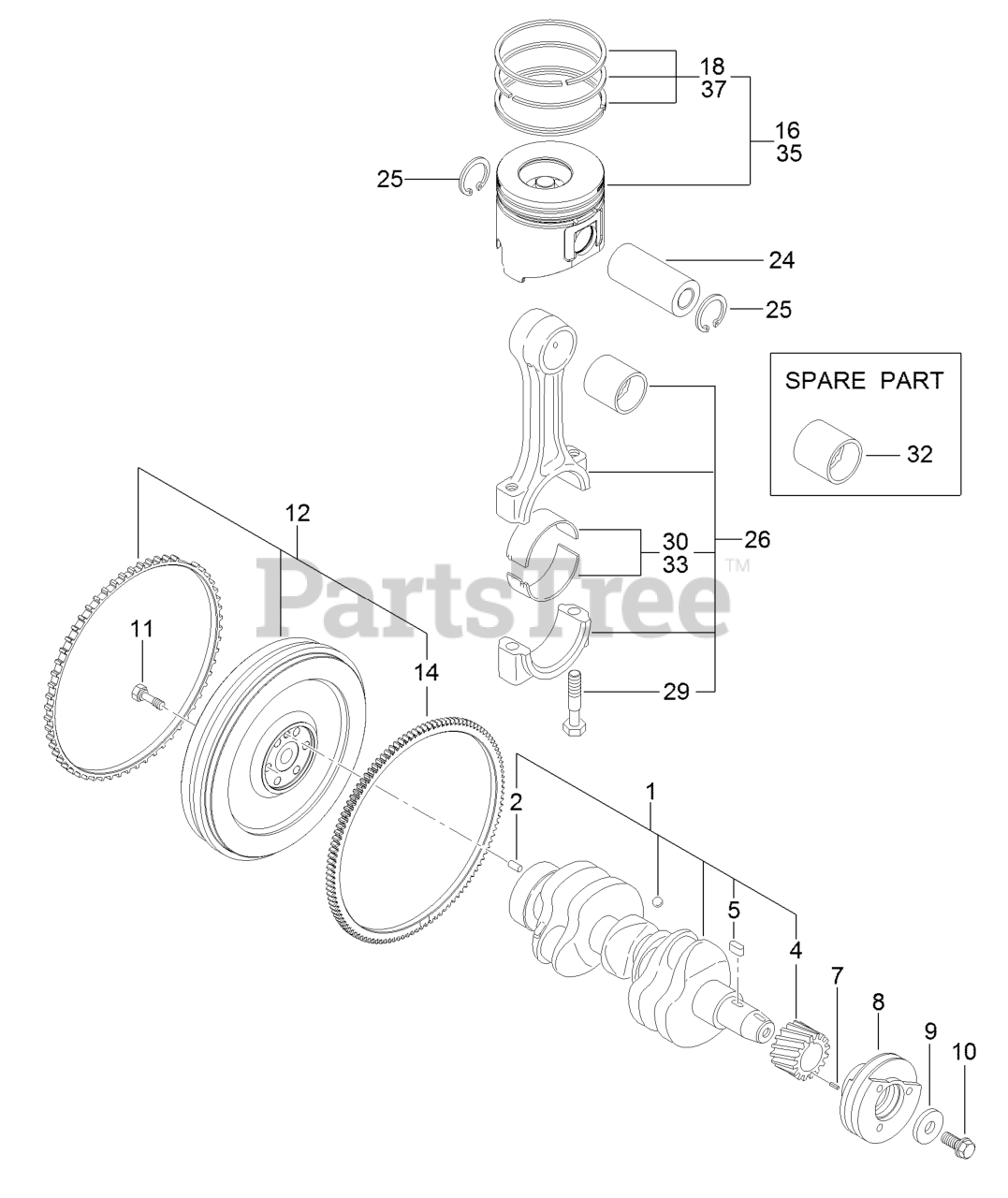

Crankshaft and Piston Assembly Parts Diagram

  • Title

1

Exmark 127-3800

Crankshaft ASM

$2368.99

$

Usually ships in 3-6 days

0

2

Exmark 125-6995

Pin

$6.99

$

Usually ships in 3-6 days

0

4

Exmark 125-6937

Gear

$219.99

$

Usually ships in 3-6 days

0

5

Exmark 125-7185

Key

$2.49

$

Usually ships in 3-6 days

0

7

Exmark 125-7182

Pin-Spring

$4.99

$

Usually ships in 3-6 days

0

8

Exmark 127-3801

Pulley-V

$354.99

$

Usually ships in 3-6 days

0

9

Exmark 125-7109

Washer

$24.99

$

Usually ships in 3-6 days

0

10

Exmark 125-6956

Bolt

$50.99

$

Usually ships in 3-6 days

0

11

Exmark 125-6951

Bolt

$8.99

$

Usually ships in 3-6 days

0

12

Exmark 127-4761

Flywheel ASM

$2028.99

$

Usually ships in 3-6 days

0

14

Exmark 127-4703

Gear

$226.99

$

Usually ships in 3-6 days

0

16

Exmark 127-4766

Piston ASM

$533.99

$

In Stock, only 1 left!

0

18

Exmark 127-4751

Piston Ring ASM

$125.99

$

In Stock, only 1 left!

0

24

Exmark 125-7030

Pin

$54.99

$

In Stock, only 1 left!

0

25

Exmark 125-7180

Ring

$3.49

$

In Stock, only 2 left!

0

26

Exmark 125-7242

Connecting Rod ASM

$611.99

$

In Stock, only 1 left!

0

29

Exmark 125-6955

Bolt

$26.99

$

Usually ships in 3-6 days

0

30

Exmark 125-7018

Pin-Crank

$22.99

$

Usually ships in 3-6 days

0

32

Exmark 125-6997

Pin-Piston

$24.99

$

Usually ships in 3-6 days

0

33

Exmark 125-7019

Pin-Crank (.25)

$21.99

$

Usually ships in 3-6 days

0

35

Exmark 127-4767

Piston ASM (0.25 O S)

$651.99

$

Usually ships in 3-6 days

0

37

Exmark 127-4752

Ring Set (0.25 O S)

$95.99

$

Usually ships in 3-6 days

0
