LZS88CDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Camshaft and Driving Gear Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

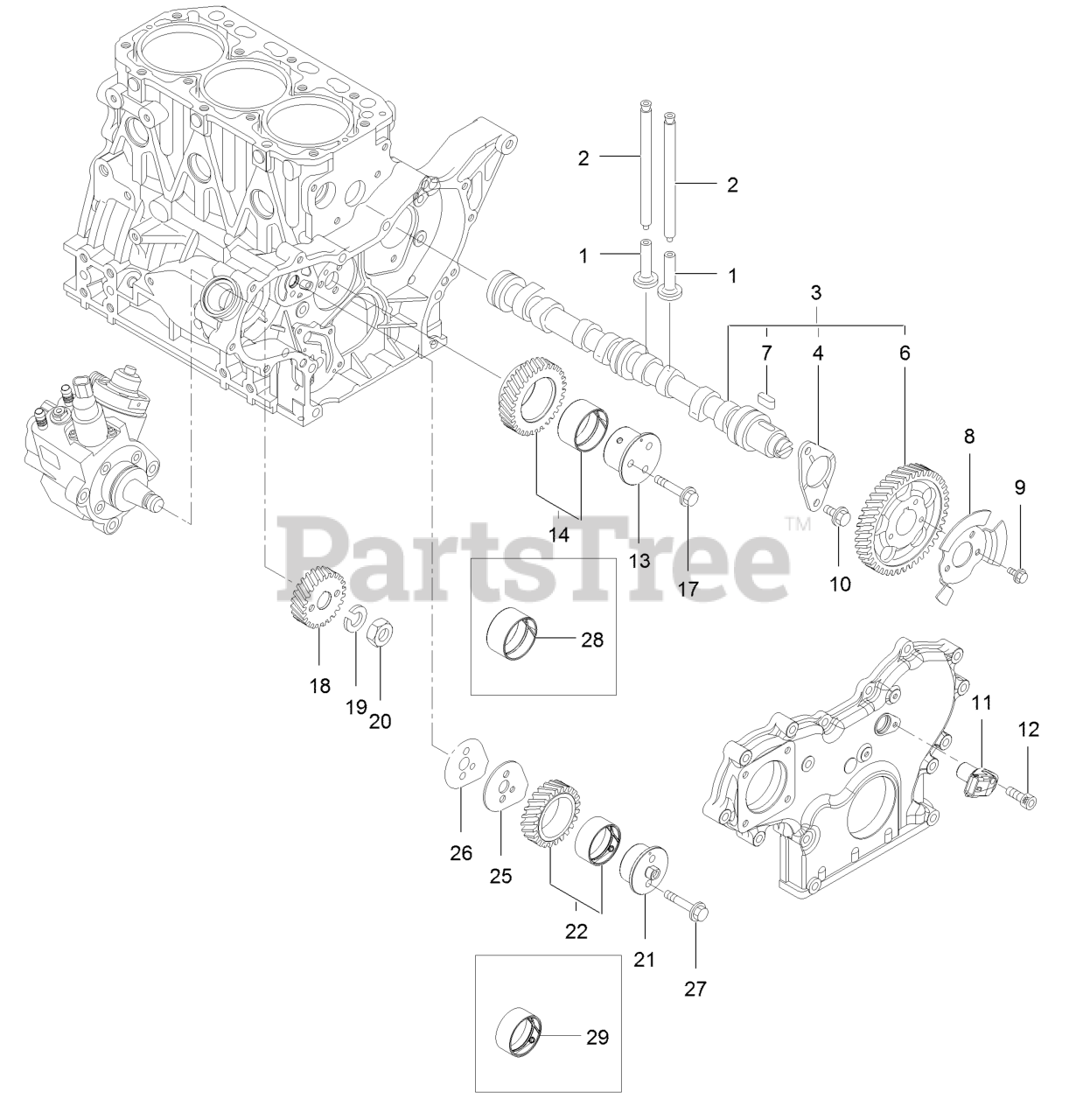

Camshaft and Driving Gear Assembly Parts Diagram

  • Title

1

Exmark 125-7016

Tappet

$17.99

$

Usually ships in 3-6 days

0

2

Exmark 125-7017

Rod-Push

$10.99

$

Usually ships in 3-6 days

0

3

Exmark 127-3797

Camshaft ASM

$327.99

$

Usually ships in 3-6 days

0

4

Exmark 125-7008

Metal-Thrust

$26.99

$

Usually ships in 3-6 days

0

6

Exmark 125-7185

Key

$2.49

$

Usually ships in 3-6 days

0

7

Exmark 127-3052

Gear-Camshaft

$250.99

$

Usually ships in 0 days

0

8

Exmark 127-3053

Pulser-Camshaft

$20.99

$

Usually ships in 3-6 days

0

9

Exmark 125-7205

Bolt

$3.49

$

Usually ships in 3-6 days

0

10

Exmark 125-7213

Bolt

$3.49

$

Usually ships in 3-6 days

0

11

Exmark 127-3054

Sensor-Rev, Gear

$180.99

$

Usually ships in 3-6 days

0

12

Exmark 127-3184

Bolt

$5.49

$

Usually ships in 3-6 days

0

13

Exmark 127-3063

Shaft-Idle, Gear A

$

$

Currently unavailable

14

Exmark 127-3066

Idle Gear A ASM

$140.99

$

Usually ships in 3-6 days

0

17

Exmark 125-7219

Bolt

$5.49

$

Usually ships in 3-6 days

0

18

Exmark 127-3070

Gear-Pump, Supply

$125.99

$

Usually ships in 3-6 days

0

19

Exmark 127-3167

Washer-Spring

$

$

Currently unavailable

20

Exmark 127-3185

Nut-Lock

$

$

Currently unavailable

21

Exmark 127-3064

Shaft-Idle, Gear B

$

$

Currently unavailable

22

Exmark 127-3067

Idle Gear B ASM

$114.99

$

Usually ships in 3-6 days

0

25

Exmark 127-3068

Plate-Idle, Shaft

$

$

Currently unavailable

26

Exmark 127-3069

Gasket-Idle, Shaft B

$4.49

$

Usually ships in 3-6 days

0

27

Exmark 125-7218

Bolt

$4.49

$

Usually ships in 3-6 days

0

28

Exmark 125-6927

Bushing

$89.99

$

Usually ships in 3-6 days

0

29

Exmark 127-3065

Bushing

$85.99

$

Usually ships in 3-6 days

0
