LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 413950474 & Above) (Rev A) (2023) Seat Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

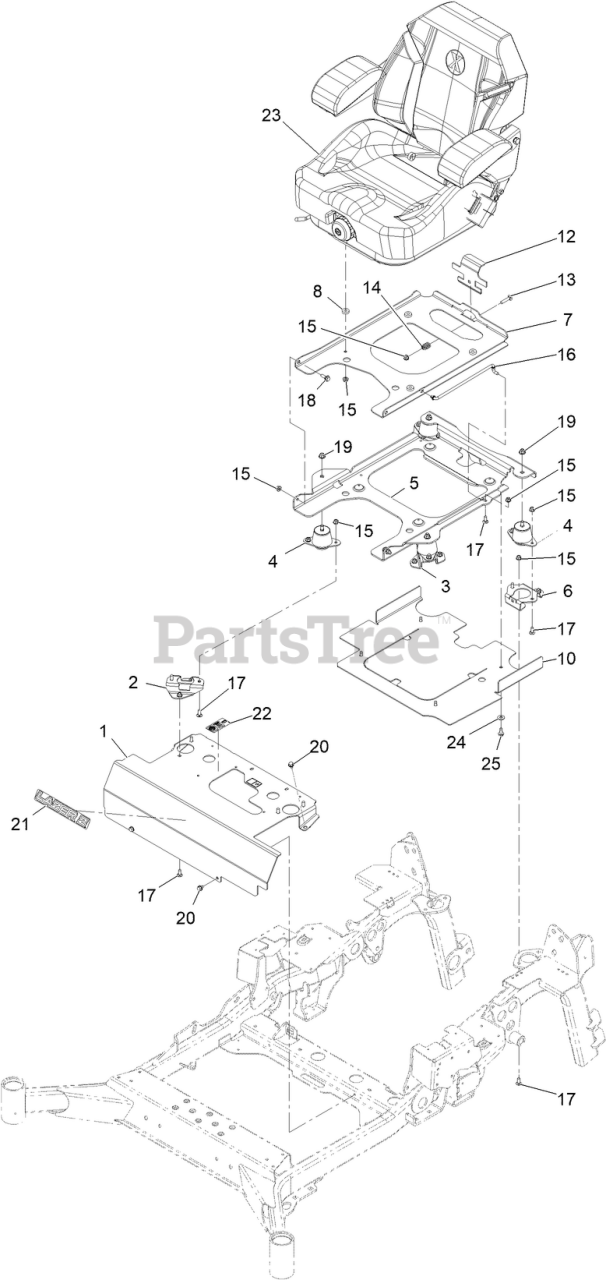

Seat Assembly Parts Diagram

  • Title

1

Exmark 142-6618

MOUNT-SEAT W/DECALS

$218.99

$

Usually ships in 3-6 days

0

2

Exmark 142-6658-03

RISER-SEAT MOUNT, R

$36.99

$

Usually ships in 0 days

0

3

Exmark 142-6659-03

RISER-SEAT MOUNT, L

$36.99

$

Usually ships in 0 days

0

4

Exmark 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

5

Exmark 142-4142-03

PLATE,TILT SEAT SUPPORT

$213.99

$

Usually ships in 0 days

0

6

Exmark 142-6651-03

RISER-SEAT MOUNT, REAR

$36.99

$

Usually ships in 0 days

0

7

Exmark 126-2700-03

PLATE-FRAME, SEAT

$96.99

$

Usually ships in 3-6 days

0

8

Exmark 26-4840

5-0652

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 142-9671

SHIELD-HEAT

$50.99

$

Usually ships in 3-6 days

0

12

Exmark 126-1855

PLATE, SEAT LATCH

$18.99

$

Usually ships in 3-6 days

0

13

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

14

Exmark 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

15

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

16

Exmark 116-0070

ROD-PROP

$21.99

$

Usually ships in 3-6 days

0

17

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Exmark 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

19

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Exmark 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

21

Exmark 126-6574

DECAL, LAZER MODEL

$5.99

$

In Stock, only 1 left!

0

22

Exmark 135-2838

DECAL-TRANS FLUID

$7.49

$

Usually ships in 3-6 days

0

23

Exmark 142-7643

ASM-SUSPENSION SEAT, EXMARK

$1237.99

$

Usually ships in 3-6 days

0

24

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 16

0
