LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 413950474 & Above) (Rev A) (2023) LH Wing Deck Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

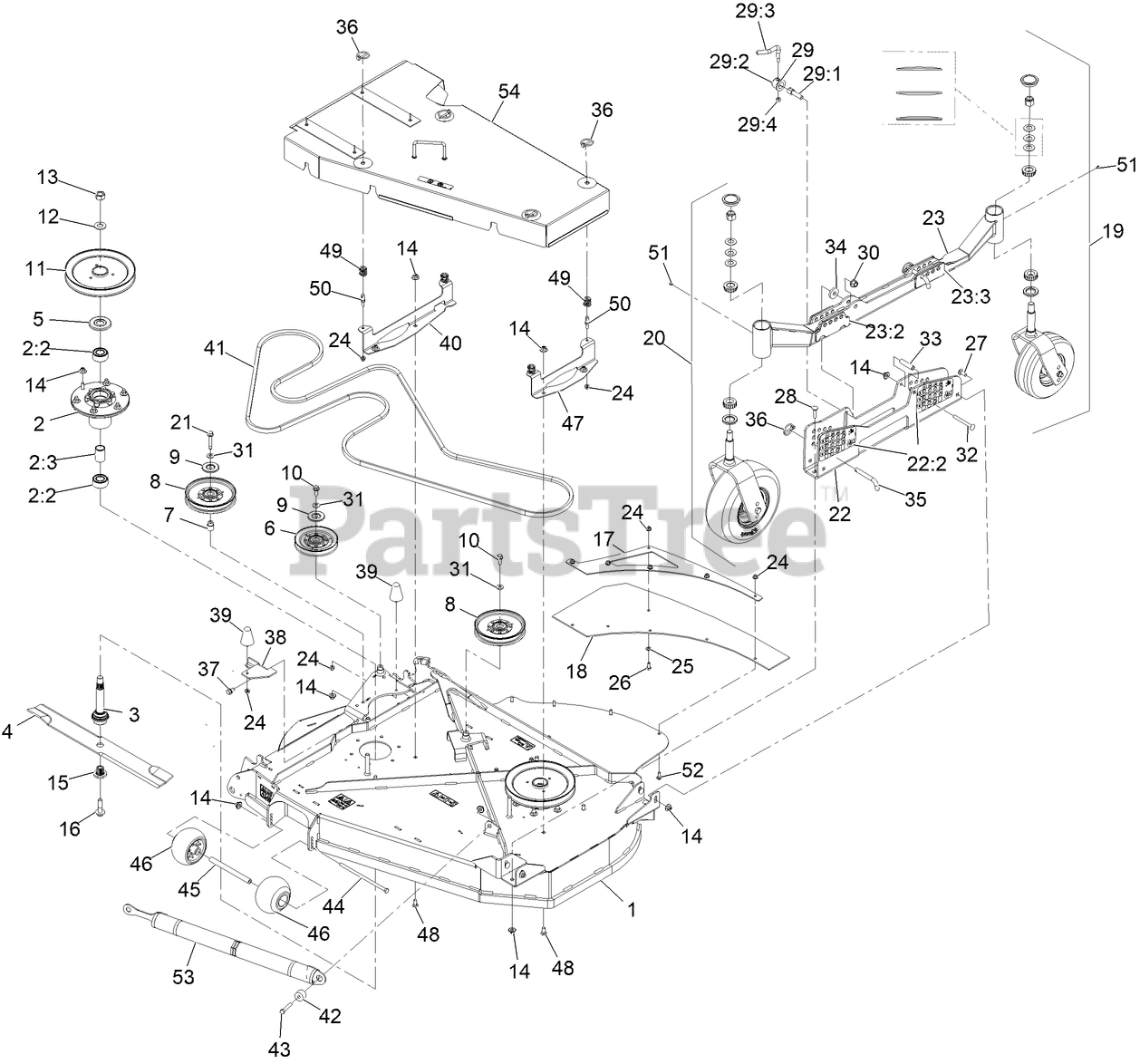

LH Wing Deck Assembly Parts Diagram

  • Title

1

Exmark 142-5412

ASM-LH Wing Deck 144

$2643.99

$

Usually ships in 3-6 days

0

2

Exmark 135-3437

ASM-CUTTER HSG

$170.99

$

In Stock, only 2 left!

0

2:2

Exmark 134-6634

BEARING-3205 TRASHGUARD

$31.99

$

Usually ships in 3-6 days

0

2:3

Exmark 135-3440

SPACER-BEARING

$8.49

$

In Stock, only 2 left!

0

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 9

0

4

Exmark 103-6389

USE 103-6389-S
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 7

0

5

Exmark 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, only 2 left!

0

6

Exmark 126-2960

IDLER-V

$64.99

$

In Stock, only 4 left!

0

7

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

8

Exmark 126-7685

IDLER-PULLEY

$62.99

$

In Stock, Qty 7

0

9

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 3 left!

0

10

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

11

Exmark 126-6635

SHEAVE-SINGLE 96RD

$123.99

$

In Stock, only 4 left!

0

12

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

13

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 9

0

14

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

16

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

17

Exmark 142-8359-03

SUPPORT-LH REAR GUARD

$68.99

$

Usually ships in 3-6 days

0

18

Exmark 142-8358

GUARD-LH REAR WING

$44.99

$

Usually ships in 3-6 days

0

19

CASTER/WHEEL ASM

Note: Not serviced separately

$

$

Not available

20

ASM-CASTER,11"TIRE

Note: Not serviced separately

$

$

Not available

21

Exmark 126-2956

SCREW-HHF

$6.49

$

In Stock, only 2 left!

0

22

Exmark 142-4241

ASM-CHANNEL, HOC LH

$188.99

$

Usually ships in 0 days

0

22:2

Exmark 126-8597

DECAL-HEIGHT OF CUT-LH

$14.99

$

Usually ships in 3-6 days

0

23

Exmark 142-6582

ASM-LH GAUGE WHEEL ARM

$556.99

$

Usually ships in 0 days

0

23:2

Exmark 142-3592

PLATE-GUIDE, FRONT

$12.99

$

Usually ships in 0 days

0

23:3

Exmark 142-3501

PLATE-GUIDE, REAR

$12.99

$

Usually ships in 0 days

0

24

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

25

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

27

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

28

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

29

Exmark 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

29:1

Exmark 106-3239

SCREW-LOCK

$52.99

$

Usually ships in 3-6 days

0

29:2

Exmark 107-1644

CAP-LOCK

$38.99

$

In Stock, only 2 left!

0

29:3

Exmark 106-3241

107-1664
(Superseded to 107-1664)

$75.99

$

Usually ships in 3-6 days

0

29:4

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

31

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

32

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, only 2 left!

0

33

Exmark 135-2424

SPACER

$15.99

$

Usually ships in 3-6 days

0

34

Exmark 30-8770

WASHER

$11.99

$

In Stock, only 2 left!

0

35

Exmark 135-2073

PIN-HOC

$27.99

$

In Stock, Qty 13

0

36

Exmark 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 20+

0

37

Exmark 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 8

0

38

Exmark 135-2611-01

BRACKET-COVER RETAINER

$17.99

$

Usually ships in 3-6 days

0

39

Exmark 114-1925

BUMPER-RUBBER

$26.99

$

In Stock, only 1 left!

0

40

Exmark 142-6627-03

BRACKET-SHIELD MOUNT, OUTER LONG

$

$

Currently unavailable

41

Exmark 135-5775

BELT

$140.99

$

In Stock, Qty 15

0

42

Exmark 135-7307

BUSHING-LIFT SPRING

$12.99

$

Usually ships in 3-6 days

0

43

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

44

Exmark 99-7203

SCREW-HH

$9.99

$

In Stock, Qty 10

0

45

Exmark 126-6115

SPACER-WHEEL

$11.99

$

In Stock, Qty 18

0

46

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 5

0

47

Exmark 135-2653-03

BRACKET-SHIELD MOUNT, OUT

$24.99

$

Usually ships in 3-6 days

0

48

Exmark 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

49

Exmark 126-1503

SPRING

$2.99

$

In Stock, only 1 left!

0

50

Exmark 135-7455

PIN, SPRING

$5.49

$

Usually ships in 3-6 days

0

51

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

52

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

53

Exmark 142-6483

ASM-WEIGHT-TRANSFER-SPRING

$291.99

$

Usually ships in 3-6 days

0

54

Exmark 142-6623

ASM-BELT SHIELD

$

$

Currently unavailable
