LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 413950474 & Above) (Rev A) (2023) Engine Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

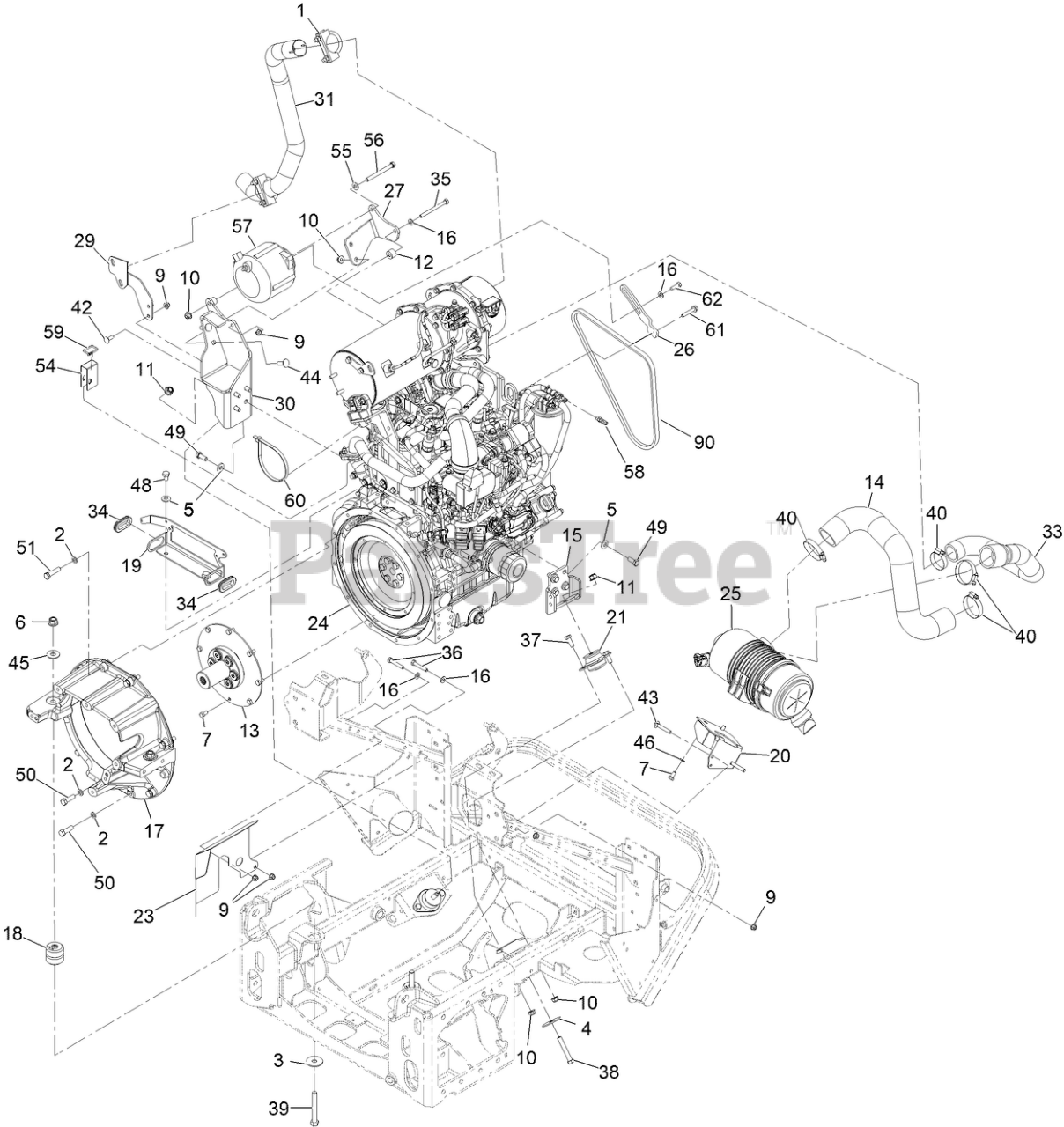

Engine Assembly Parts Diagram

  • Title

1

Exmark 18-2130

CLAMP

$37.99

$

Usually ships in 3-6 days

0

2

Exmark 48-9590

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

3

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

4

Exmark 87-5100

WASHER-SNUBBING

$4.49

$

Usually ships in 3-6 days

0

5

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

6

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

7

Exmark 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0

9

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 18

0

12

Exmark 116-9329

SPACER

$11.99

$

In Stock, only 3 left!

0

13

Exmark 120-9131

COUPLING-FLYWHEEL

$625.99

$

Usually ships in 3-6 days

0

14

Exmark 120-9177

HOSE-AIR

$79.99

$

Usually ships in 3-6 days

0

15

Exmark 120-9180-03

MOUNT-MOTOR, UPPER

$54.99

$

Usually ships in 3-6 days

0

16

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Exmark 125-2836

HOUSING-FLYWHEEL

$902.99

$

Usually ships in 3-6 days

0

18

Exmark 142-8457

Mount-Isolator

$55.99

$

Usually ships in 0 days

0

19

Exmark 142-6061-03

PLATE_GUIDE BRACKET

$54.99

$

Usually ships in 0 days

0

20

Exmark 126-8730-03

BRACKET-CLEANER, AIR

$45.99

$

Usually ships in 3-6 days

0

21

Exmark 142-8456

Mount- Isolator, Engine

$61.99

$

Usually ships in 3-6 days

0

23

Exmark 142-9188-03

SHEET-AIR DEFLECTOR

$33.99

$

Usually ships in 3-6 days

0

24

Exmark 142-7566

ENGINE-YANMAR, 3TNV86CT-DTR2

$22056.99

$

Usually ships in 3-6 days

0

25

Exmark 142-7201

ASM, HDAC

$213.99

$

Usually ships in 3-6 days

0

26

Exmark 142-5783-03

TENSION ARM-ALTERNATOR

$21.99

$

Usually ships in 0 days

0

27

Exmark 142-4117-03

BRACKET, ALTERNATOR

$30.99

$

Usually ships in 0 days

0

29

Exmark 142-4151-03

EXHAUST BRACKET

$26.99

$

Usually ships in 0 days

0

30

Exmark 142-4152-03

MOUNT ASM-UPPER [BLACK]

$185.99

$

Usually ships in 0 days

0

31

Exmark 142-4158

TUBE-EXHAUST

$154.99

$

Usually ships in 3-6 days

0

33

Exmark 142-5171

HOSE-AIR

$69.99

$

Usually ships in 3-6 days

0

34

Exmark 240-7

GROMMET-RUBBER

$18.99

$

Usually ships in 3-6 days

0

35

Exmark 322-23

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

36

Exmark 322-21

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

37

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

38

Exmark 324-11

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

39

Exmark 325-15

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

40

Exmark 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

42

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 12

0

43

Exmark 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 11

0

44

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

45

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Exmark 3290-475

WASHER-BELLEVILLE

$2.99

$

Usually ships in 3-6 days

0

48

Exmark 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

49

Exmark 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

50

Exmark 33115-035

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

51

Exmark 33115-045

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

54

Exmark 142-6642

INSULATION-HEAT

$106.99

$

Usually ships in 3-6 days

0

55

Exmark 100-4852

WASHER-HARDENED

$5.99

$

Usually ships in 3-6 days

0

56

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

57

Exmark 146-0514

ALTERNATOR-12V 175A

$1067.99

$

In Stock, only 2 left!

0

58

Exmark 142-7698

FITTING-STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

59

Exmark 142-8170

TIE-CABLE, SS

$

$

Currently unavailable

60

Exmark 103-2446

TIE-CABLE

$2.99

$

Usually ships in 3-6 days

0

61

Exmark 33104-045

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

62

Exmark 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

90

Exmark 142-6650

BELT-V, COGGED

$69.99

$

Usually ships in 3-6 days

0
