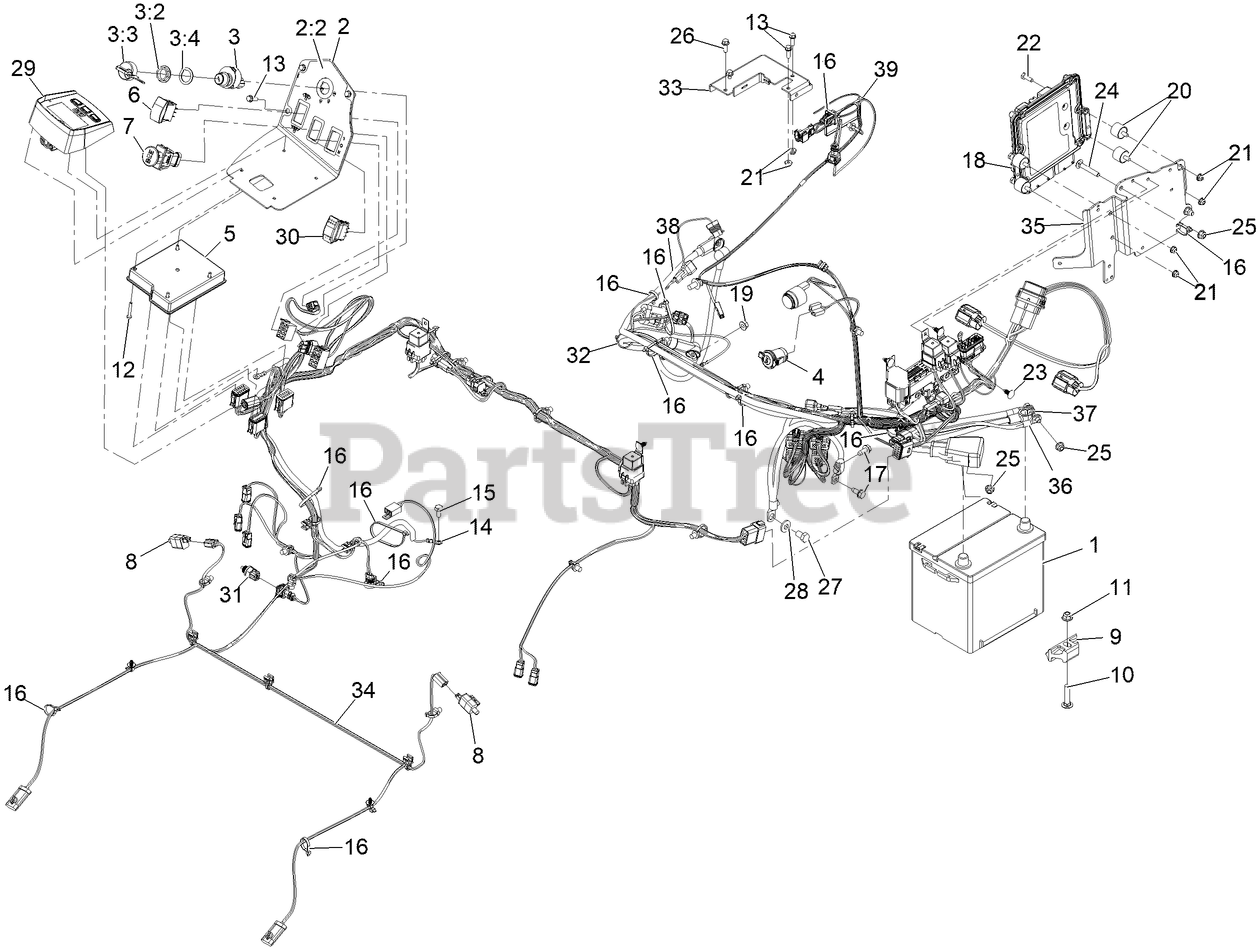

LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 413950474 & Above) (Rev A) (2023) Electrical Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

Electrical Assembly Parts Diagram

  • Title

1

Exmark 106-5187

Battery-Dry

$215.99

$

Usually ships in 3-6 days

0

2

Exmark 142-6613

ASM, CONSOLE W/ DECAL 144

$110.99

$

Usually ships in 0 days

0

2:2

Exmark 142-3956

DECAL-CONTROL PANEL

$20.99

$

Usually ships in 3-6 days

0

3

Exmark 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

3:2

Exmark 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

3:3

Exmark 106-5270

IGNITION KEY SET

$22.99

$

In Stock, Qty 18

0

3:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

4

Exmark 126-6499

PORT-POWER, 12V

$15.99

$

In Stock, only 2 left!

0

5

Exmark 135-3427

Module-Mcu

$386.99

$

Usually ships in 3-6 days

0

6

Exmark 100-1535

SWITCH

$90.99

$

In Stock, only 2 left!

0

7

Exmark 126-6187

SWITCH-PTO, SEALED

$54.99

$

In Stock, Qty 20+

0

8

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

9

Exmark 138-6335

RETAINER-BATTERY

$11.99

$

Usually ships in 3-6 days

0

10

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 126-5092

SCREW-PPH

$3.49

$

In Stock, Qty 8

0

13

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

14

Exmark 135-3998

HARNESS-WIRE, JUMPER

$30.99

$

Usually ships in 3-6 days

0

15

Exmark 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0

16

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

18

Exmark 121-5592

Electronic Control Unit

$3620.99

$

Usually ships in 3-6 days

0

19

Exmark 127-2371

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

20

Exmark 125-2674

MOUNT-CYLINDRICAL

$6.99

$

Usually ships in 3-6 days

0

21

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

24

Exmark 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 11

0

25

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Exmark 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

27

Exmark 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

28

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

29

Exmark 126-4232

MODULE, LDU

$455.99

$

In Stock, only 2 left!

0

30

Exmark 122-0249

SWITCH-ROCKER, ON-NONE-ON

$59.99

$

Usually ships in 3-6 days

0

31

Exmark 126-7698

SENSOR-TEMPERATURE

$94.99

$

In Stock, only 2 left!

0

32

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

33

Exmark 142-7565

BRACKET-SENSOR, DPF

$

$

Currently unavailable

34

Exmark 122-2377

HARNESS-WIRE, MAIN

$843.99

$

Usually ships in 3-6 days

0

35

Exmark 142-7685-03

PLATE-ECU MOUNT

$61.99

$

Usually ships in 0 days

0

36

Exmark 122-2378

HARNESS-WIRE, ENGINE

$1744.99

$

Usually ships in 3-6 days

0

37

Exmark 122-2379

CABLE-BATTERY, RD AND BK ASM

$261.99

$

Usually ships in 3-6 days

0

38

Exmark 122-2380

CABLE-BATTERY, BK ASM

$108.99

$

Usually ships in 3-6 days

0

39

Exmark 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
