LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 413950474 & Above) (Rev A) (2023) Cylinder Head and Cover Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

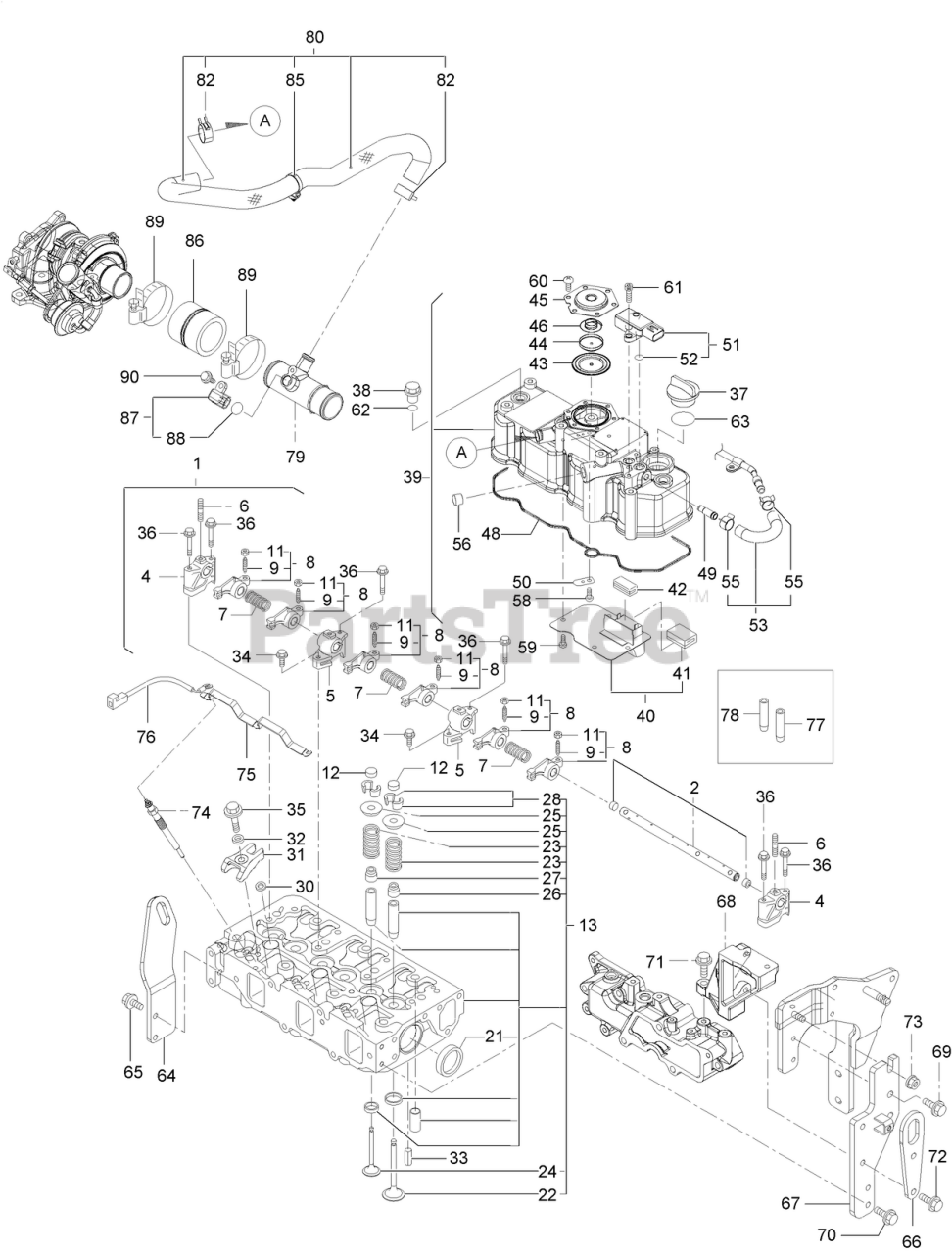

Cylinder Head and Cover Assembly Parts Diagram

  • Title

1

Exmark 127-3757

SHAFT ASM

$589.99

$

Usually ships in 3-6 days

0

2

Exmark 127-3758

SHAFT

$125.99

$

Usually ships in 3-6 days

0

4

Exmark 127-2974

Support

$

$

Currently unavailable

5

Exmark 127-2975

Support

$49.99

$

Usually ships in 3-6 days

0

6

Exmark 135-4012

BOLT,STUD

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 127-2995

Spring

$

$

Currently unavailable

8

Exmark 127-2989

Arm-Rocker

$53.99

$

Usually ships in 3-6 days

0

9

Exmark 125-7013

SCREW-ADJUST, VALVE

$26.99

$

Usually ships in 3-6 days

0

11

Exmark 125-7014

NUT

$5.99

$

Usually ships in 3-6 days

0

12

Exmark 127-2996

Cap-Valve

$4.99

$

Usually ships in 3-6 days

0

13

Exmark 127-3760

CYLINDER HEAD ASM

$2344.99

$

Usually ships in 3-6 days

0

21

Exmark 125-7240

PLUG

$4.49

$

Usually ships in 3-6 days

0

22

Exmark 127-2990

VALVE

$101.99

$

Usually ships in 3-6 days

0

23

Exmark 127-3012

Spring

$

$

Currently unavailable

24

Exmark 127-2994

VALVE

$58.99

$

Usually ships in 3-6 days

0

25

Exmark 127-3013

Retainer-Spring

$

$

Currently unavailable

26

Exmark 127-2986

SEAL-STEM, VALVE

$6.99

$

Usually ships in 3-6 days

0

27

Exmark 127-3027

SEAL-STEM, VALVE

$7.49

$

Usually ships in 3-6 days

0

28

Exmark 127-3186

PIN-COTTER

$17.99

$

Usually ships in 3-6 days

0

30

Exmark 127-3021

GASKET-INJECTOR

$4.99

$

Usually ships in 3-6 days

0

31

Exmark 127-3028

Retainer-Injector

$68.99

$

Usually ships in 3-6 days

0

32

Exmark 127-2980

WASHER-INJECTOR

$19.99

$

Usually ships in 3-6 days

0

33

Exmark 125-7184

PIN-SPRING

$3.99

$

Usually ships in 3-6 days

0

34

Exmark 125-7215

BOLT

$3.99

$

Usually ships in 3-6 days

0

35

Exmark 125-7217

BOLT

$5.49

$

Usually ships in 3-6 days

0

36

Exmark 125-7220

BOLT

$5.49

$

Usually ships in 3-6 days

0

37

Exmark 125-6972

COVER-FILLER

$11.99

$

Usually ships in 3-6 days

0

38

Exmark 125-6974

KNOB

$6.99

$

Usually ships in 3-6 days

0

39

Exmark 139-6019

CYLINDER HEAD ASM

$404.99

$

Usually ships in 3-6 days

0

40

Exmark 127-2988

PLATE

$164.99

$

Usually ships in 3-6 days

0

41

Exmark 125-6920

BAFFLE

$9.49

$

Usually ships in 3-6 days

0

42

Exmark 125-7012

BAFFLE

$5.49

$

Usually ships in 3-6 days

0

43

Exmark 125-6959

DIAPHRAGM

$59.99

$

Usually ships in 3-6 days

0

44

Exmark 125-6960

PLATE

$16.99

$

Usually ships in 3-6 days

0

45

Exmark 125-6961

PLATE-BREATHER

$29.99

$

Usually ships in 3-6 days

0

46

Exmark 125-6962

SPRING-DIAPHRAGM

$20.99

$

Usually ships in 3-6 days

0

48

Exmark 127-3762

GASKET-COVER, CYLINDER HEAD
(Superseded to 127-3856)

$71.99

$

In Stock, only 1 left!

0

49

Exmark 127-3026

Joint

$55.99

$

Usually ships in 3-6 days

0

50

Exmark 125-6994

SPRING

$3.49

$

Usually ships in 3-6 days

0

51

Exmark 127-3029

SENSOR-PRESSURE

$950.99

$

Usually ships in 3-6 days

0

52

Exmark 127-3032

O RING-SENSOR, PRESSURE

$20.99

$

Usually ships in 3-6 days

0

53

Exmark 127-3040

HOSE ASM

$107.99

$

Usually ships in 3-6 days

0

55

Exmark 127-3041

Clip-Hose

$25.99

$

Usually ships in 3-6 days

0

56

Exmark 125-6913

PLUG

$8.99

$

Usually ships in 3-6 days

0

58

Exmark 125-7186

SCREW

$3.49

$

Usually ships in 3-6 days

0

59

Exmark 125-7186

SCREW

$3.49

$

Usually ships in 3-6 days

0

60

Exmark 125-7186

SCREW

$3.49

$

Usually ships in 3-6 days

0

61

Exmark 127-3184

BOLT

$5.49

$

Usually ships in 3-6 days

0

62

Exmark 138-7829

O-RING

$1.99

$

Usually ships in 3-6 days

0

63

Exmark 125-7197

O-RING

$2.99

$

In Stock, only 1 left!

0

64

Exmark 127-4718

LIFTER-ENGINE

$57.99

$

Usually ships in 3-6 days

0

65

Exmark 125-7595

BOLT

$2.99

$

Usually ships in 3-6 days

0

66

Exmark 127-3091

LIFTER-ENGINE

$5.49

$

Usually ships in 3-6 days

0

67

Exmark 127-3095

STAY-D P F

$

$

Currently unavailable

68

Exmark 127-3105

STAY-BRACKET, FILTER

$

$

Currently unavailable

69

Exmark 125-7595

BOLT

$2.99

$

Usually ships in 3-6 days

0

70

Exmark 125-7595

BOLT

$2.99

$

Usually ships in 3-6 days

0

71

Exmark 125-7215

BOLT

$3.99

$

Usually ships in 3-6 days

0

72

Exmark 125-7216

BOLT

$3.99

$

Usually ships in 3-6 days

0

73

Exmark 125-7229

NUT

$17.99

$

Usually ships in 3-6 days

0

74

Exmark 127-2991

PLUG-GLOW

$176.99

$

In Stock, only 3 left!

0

75

Exmark 127-3768

CONNECTOR-PLUG, GLOW

$36.99

$

Usually ships in 3-6 days

0

76

Exmark 131-2704

HARNESS-WIRE

$30.99

$

Usually ships in 3-6 days

0

77

Exmark 127-2979

GUIDE

$30.99

$

Usually ships in 3-6 days

0

78

Exmark 127-2997

GUIDE-VALVE

$11.99

$

Usually ships in 3-6 days

0

79

Exmark 131-3864

JOINT, BREATHER

$

$

Currently unavailable

80

Exmark 131-3865

HOSE ASSY, BREATHER

$182.99

$

Usually ships in 3-6 days

0

82

Exmark 125-7040

CLIP-HOSE

$8.99

$

Usually ships in 3-6 days

0

85

Exmark 127-3087

BAND-CLIP

$2.99

$

Usually ships in 3-6 days

0

86

Exmark 142-8736

HOSE-AIR

$53.99

$

Usually ships in 3-6 days

0

87

Exmark 127-3030

SENSOR-TEMP, AIR

$228.99

$

Usually ships in 3-6 days

0

88

Exmark 127-3033

O-RING

$13.99

$

Usually ships in 3-6 days

0

89

Exmark 127-3170

CLAMP-HOSE

$25.99

$

Usually ships in 3-6 days

0

90

Exmark 125-7208

BOLT

$4.49

$

Usually ships in 3-6 days

0
