LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 413950474 & Above) (Rev A) (2023) Cylinder Block Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

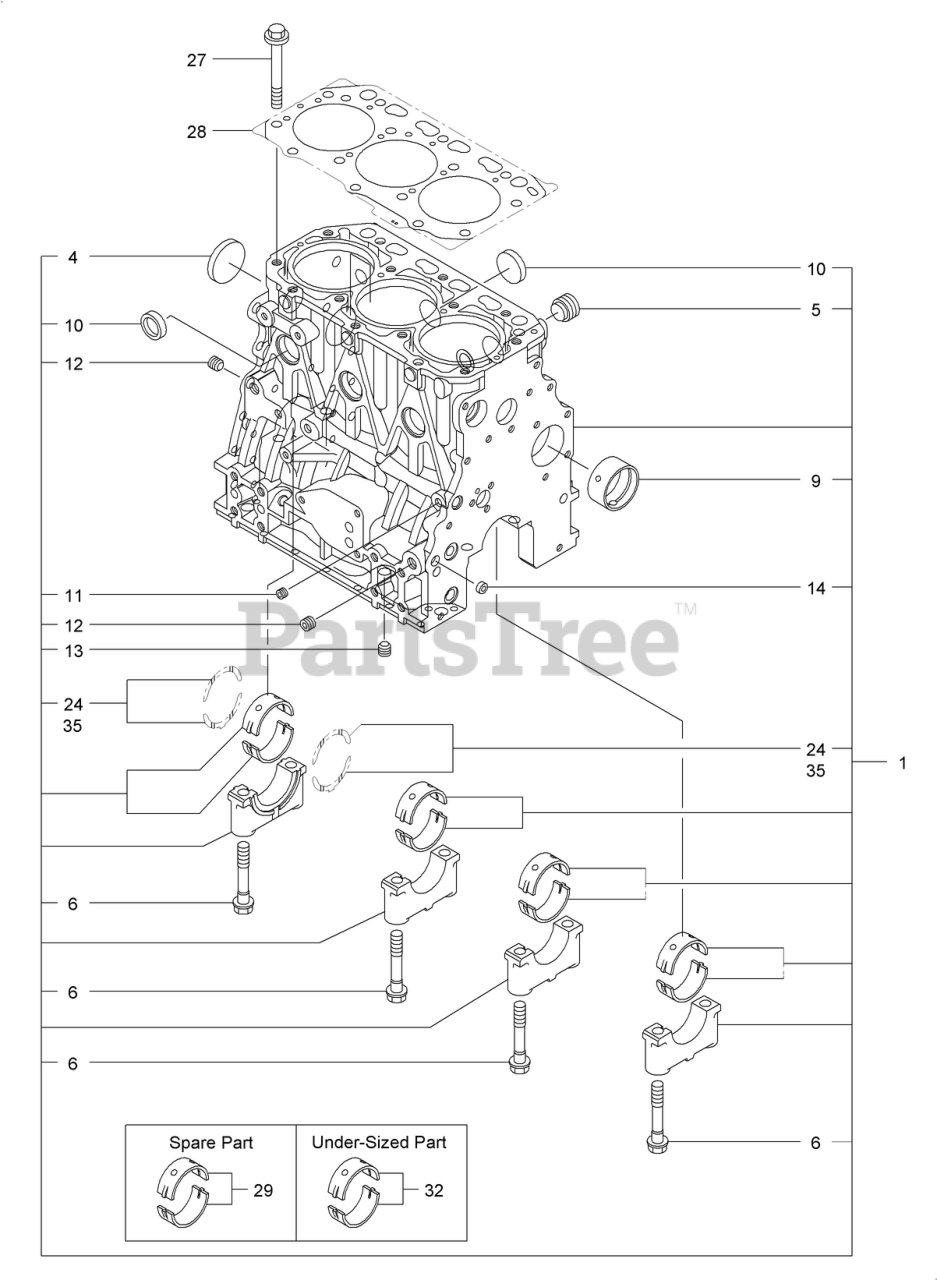

Cylinder Block Assembly Parts Diagram

  • Title

1

Exmark 127-3750

CYLINDER BLOCK ASM

$4682.99

$

Usually ships in 3-6 days

0

4

Exmark 125-6980

PLUG

$5.99

$

Usually ships in 3-6 days

0

5

Exmark 125-7170

PLUG

$14.99

$

Usually ships in 3-6 days

0

6

Exmark 125-7007

BOLT

$39.99

$

Usually ships in 3-6 days

0

9

Exmark 125-7108

BUSHING

$47.99

$

In Stock, only 1 left!

0

10

Exmark 140-7182

PLUG 30

$

$

Currently unavailable

11

Exmark 125-6969

PLUG

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 125-6973

PLUG

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 125-6973

PLUG

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 125-7237

PLUG

$2.49

$

Usually ships in 3-6 days

0

24

Exmark 125-7010

METAL-THRUST

$9.99

$

In Stock, only 2 left!

0

27

Exmark 125-7006

BOLT

$39.99

$

Usually ships in 3-6 days

0

28

Exmark 127-3751

HEAD GASKET ASM

$123.99

$

Usually ships in 3-6 days

0

29

Exmark 125-6981

METAL-MAIN

$40.99

$

Usually ships in 3-6 days

0

32

Exmark 125-7009

METAL-MAIN (0.25)

$32.99

$

Usually ships in 3-6 days

0

35

Exmark 125-7011

METAL-THRUST (0.25)

$30.99

$

Usually ships in 3-6 days

0
