LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 413950474 & Above) (Rev A) (2023) Cooling Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

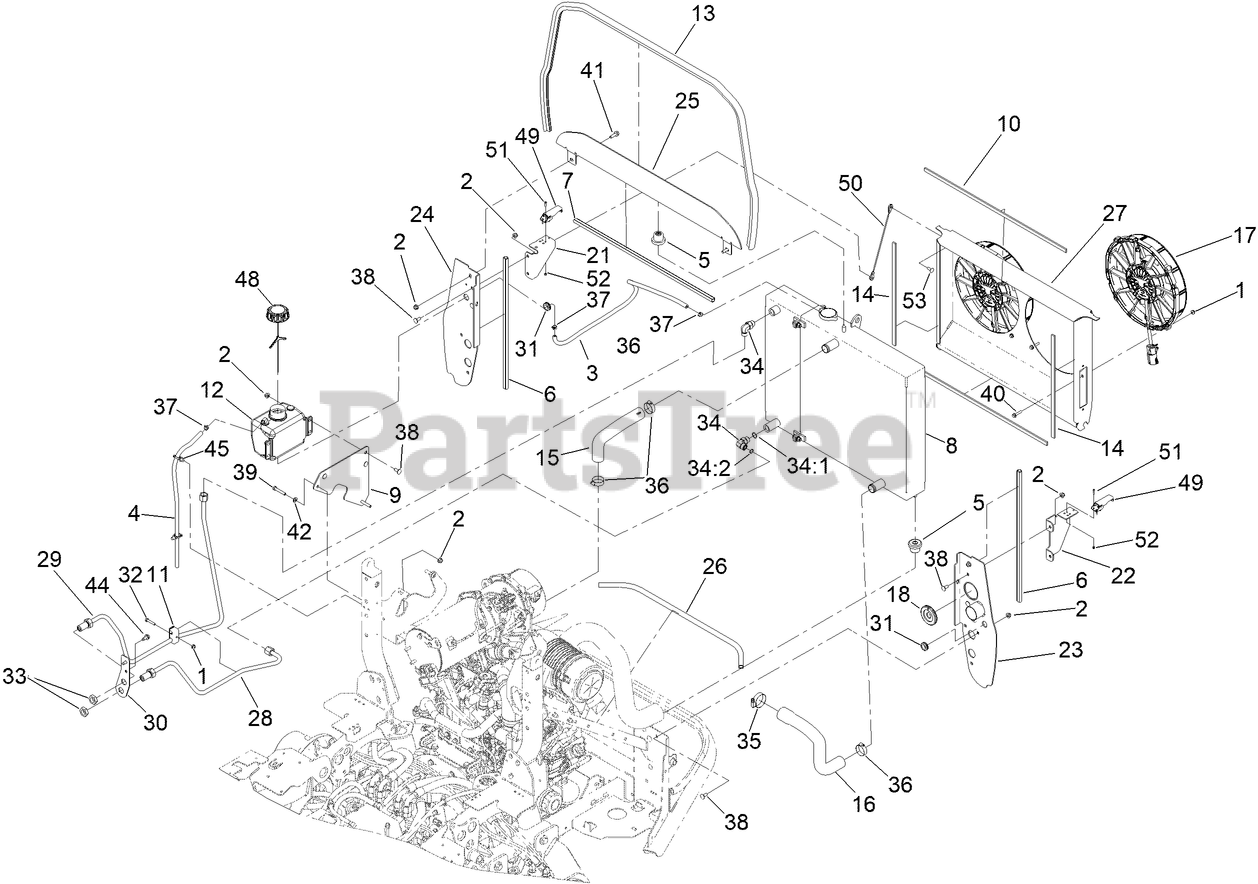

Cooling Assembly Parts Diagram

  • Title

1

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

2

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 109-0284

HOSE-FUEL

$12.99

$

Usually ships in 3-6 days

0

4

Exmark 110-4103

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

5

Exmark 119-1422

MOUNT-ISOLATOR

$20.99

$

Usually ships in 3-6 days

0

6

Exmark 119-1426

SEAL-BULB

$14.99

$

Usually ships in 3-6 days

0

7

Exmark 119-1427

SEAL-BULB

$16.99

$

Usually ships in 3-6 days

0

8

Exmark 121-3330

COOLING ASM

$2007.99

$

Usually ships in 3-6 days

0

9

Exmark 126-9178-03

BRACKET-BOTTLE

$21.99

$

Usually ships in 3-6 days

0

10

Exmark 142-8747

FOAM-ADHESIVE BACKED

$6.49

$

Usually ships in 3-6 days

0

11

Exmark 135-0641

CLAMP-TWIN

$6.49

$

Usually ships in 3-6 days

0

12

Exmark 135-4692

TANK-OVERFLOW, W/CAP

$84.99

$

Usually ships in 3-6 days

0

13

Exmark 142-4136

SEAL-BULB

$89.99

$

Usually ships in 3-6 days

0

14

Exmark 142-8746

FOAM-ADHESIVE BACKED

$4.99

$

Usually ships in 3-6 days

0

15

Exmark 142-3192

HOSE-RADIATOR, UPPER

$22.99

$

Usually ships in 3-6 days

0

16

Exmark 142-3193

HOSE-RADIATOR, LOWER

$30.99

$

Usually ships in 3-6 days

0

17

Exmark 142-3375

FAN-12", 12V, ELECTRIC, REVERSING

$811.99

$

Usually ships in 3-6 days

0

18

Exmark 142-6616

GROMMET-SPLIT, 2.38 GD X 0.14 GW X 0.82

$7.99

$

Usually ships in 3-6 days

0

21

Exmark 146-0568-03

PLATE-RIGHT LATCH BRACKET

$32.99

$

Usually ships in 3-6 days

0

22

Exmark 146-0567-03

PLATE-LEFT LATCH BRACKET

$32.99

$

Usually ships in 3-6 days

0

23

Exmark 142-5136-03

SUPPORT-RADIATOR, LH [BLACK]

$91.99

$

Usually ships in 0 days

0

24

Exmark 142-5138-03

BRACKET-COOLING, RH

$61.99

$

Usually ships in 0 days

0

25

Exmark 142-5139-03

BRACKET-COOLING, TOP

$91.99

$

Usually ships in 0 days

0

26

Exmark 142-5156

SEAL-BULB

$12.99

$

Usually ships in 3-6 days

0

27

Exmark 142-8458-03

FAN SHROUD

$250.99

$

Usually ships in 0 days

0

28

Exmark 142-5174

HYDRAULIC TUBE ASM

$62.99

$

Usually ships in 3-6 days

0

29

Exmark 142-5175

HYDRAULIC TUBE ASM

$70.99

$

Usually ships in 3-6 days

0

30

Exmark 142-5181-03

BRACKET-BULKHEAD

$6.49

$

Usually ships in 0 days

0

31

Exmark 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

32

Exmark 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

33

Exmark 340-127

NUT-BULKHEAD

$7.49

$

Usually ships in 3-6 days

0

34

Exmark 340-98

FITTING-ELBOW, 90 DEG

$33.99

$

In Stock, only 2 left!

0

34:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

34:2

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

35

Exmark 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

36

Exmark 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 3 left!

0

37

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

38

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

39

Exmark 322-21

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

40

Exmark 127-8639

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

41

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

42

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

44

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

45

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

48

Exmark 135-4693

CAP-W/TETHER

$22.99

$

In Stock, only 4 left!

0

49

Exmark 146-0562

LATCH-DRAW

$33.99

$

Usually ships in 3-6 days

0

50

Exmark 109-2628

CABLE-STOP, SEAT

$19.99

$

In Stock, only 2 left!

0

51

Exmark 111-3473

SCREW-BUTTON

$

$

Currently unavailable

52

Exmark 140-3749

NUT-LOCK ROHS

$0.99

$

Usually ships in 3-6 days

0

53

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0
