LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 413950474 & Above) (Rev A) (2023) Complete Deck Assembly (Gearbox Asm Not Included) Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

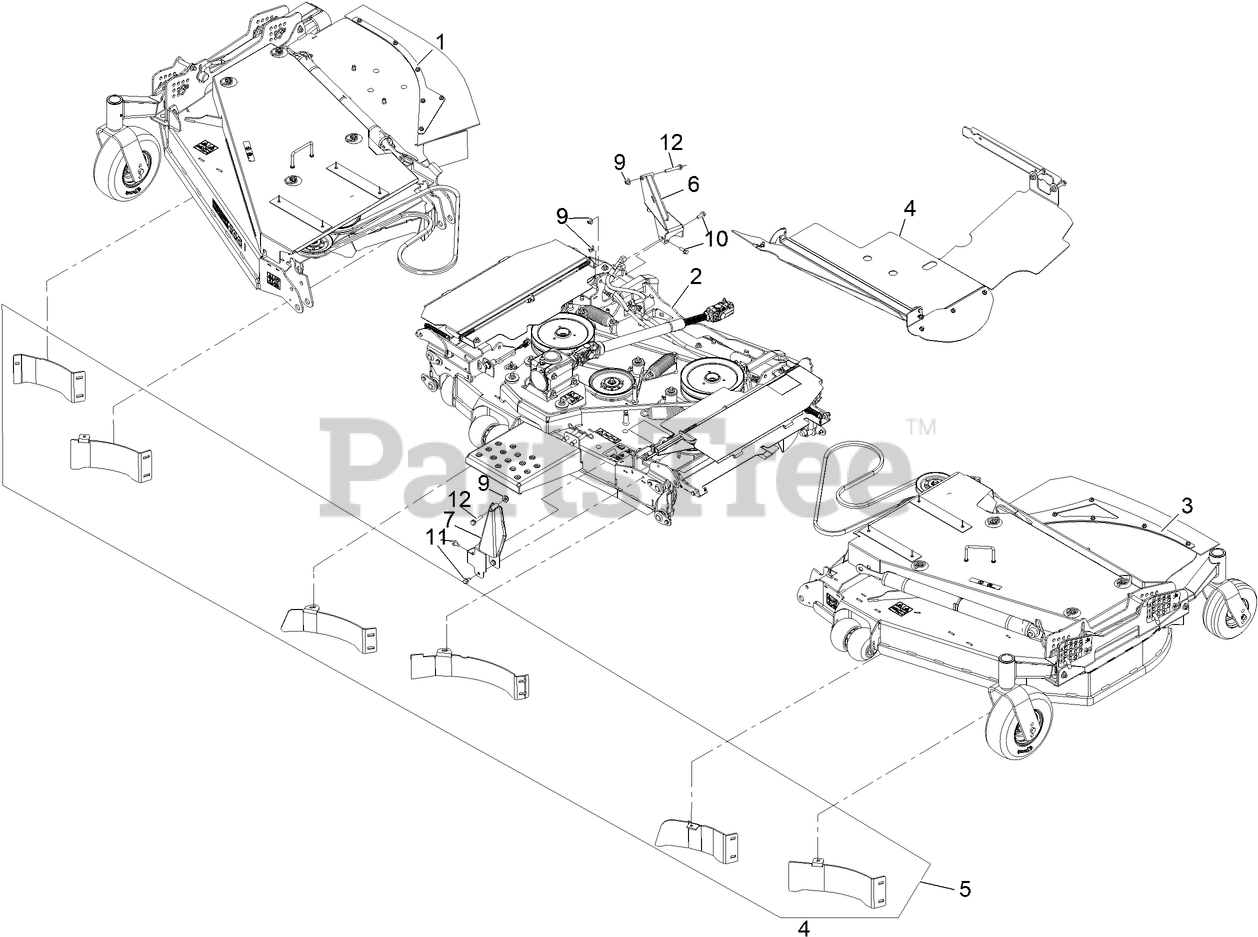

Complete Deck Assembly (Gearbox Asm Not Included) Parts Diagram

  • Title

1

ASM-RH Deck Wing 144

Note: Not serviced separately

$

$

Not available

1

Exmark 142-8507

ASM-Deck Wing RH 144 Exmark

$

$

Currently unavailable

2

ASM-Deck-Center, ASM

Note: Not serviced separately

$

$

Not available

2

Exmark 142-8506

ASM-Deck Ctr 144 Exmark

$

$

Currently unavailable

3

ASM-LH Deck Wing 144

Note: Not serviced separately

$

$

Not available

3

Exmark 142-8508

ASM-Deck Wing LH 144 Exmark

$

$

Currently unavailable

4

Discharge-Tunnel ASM, 144

Note: Not serviced separately

$

$

Not available

5

Exmark 142-2744

KIT-FINISH CUT BAFFLE 144

$388.99

$

Usually ships in 3-6 days

0

6

Exmark 142-8451-03

Weld-RH Spring Mount-Upstop

$167.99

$

Usually ships in 0 days

0

7

Exmark 142-4221-03

Bracket, LH Centerdeck-Spring [bl

$180.99

$

Usually ships in 0 days

0

9

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

11

Exmark 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 6

0

12

Exmark 3234-39

Screw-HHF

$3.49

$

Usually ships in 3-6 days

0
