LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 411294212 - 413950473) (Rev A) (2022) Motion Control Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

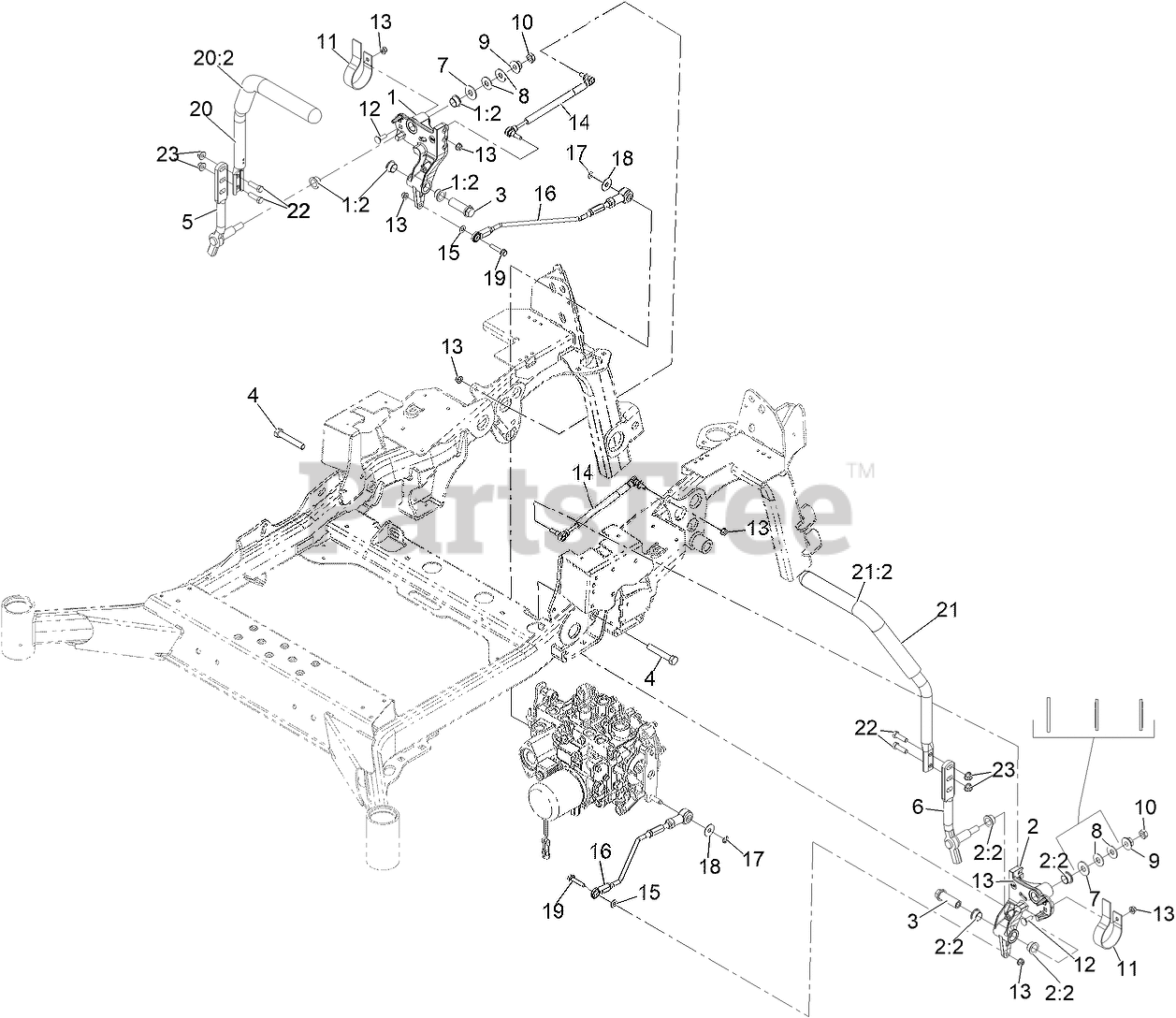

Motion Control Assembly Parts Diagram

  • Title
1

Exmark 116-0880

RH MOTION CONTROL AND BUSHING ASM

$59.99

$

In Stock, only 1 left!

0

1:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

2

Exmark 116-0881

LH MOTION CONTROL AND BUSHING ASM

$59.99

$

In Stock, only 1 left!

0

2:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

3

Exmark 109-5891

HUB-THREADED

$14.99

$

In Stock, only 2 left!

0

4

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

5

Exmark 116-0039

LEVER-CONTROL MOTION, RH

$53.99

$

In Stock, only 1 left!

0

6

Exmark 116-0040

LEVER-CONTROL MOTION, LH

$53.99

$

In Stock, only 1 left!

0

7

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Exmark 109-9505

WASHER-SPRING

$5.49

$

In Stock, only 4 left!

0

9

$10.99

$

Usually ships in 3-6 days

0

10

Exmark 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

11

Exmark 109-5575

SPRING-LEAF

$15.99

$

Usually ships in 3-6 days

0

12

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

13

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

14

Exmark 116-0027

DAMPER-CONTROL, MOTION
(Superseded to 142-8117)

$103.99

$

Usually ships in 3-6 days

0

15

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Exmark 142-8447

ASM, FRONT LINKAGE ROD

$70.99

$

Usually ships in 3-6 days

0

17

Exmark 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

18

Exmark 130-8094

WASHER-PLAIN

$6.49

$

Usually ships in 3-6 days

0

19

Exmark 142-8518

BOLT-SHOULDER,HHF

$11.99

$

Usually ships in 3-6 days

0

20

Exmark 142-2391

ASM,STEERING HANDLE RH

$120.99

$

Usually ships in 0 days

0

20:2

Exmark 109-5668

GRIP-LEVER, CONTROL

$14.99

$

In Stock, Qty 7

0

21

Exmark 142-2390

ASM,STEERING HANDLE LH

$124.99

$

Usually ships in 0 days

0

21:2

Exmark 109-5668

GRIP-LEVER, CONTROL

$14.99

$

In Stock, Qty 7

0

22

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
