LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 411294212 - 413950473) (Rev A) (2022) Lubrication and Oil System Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

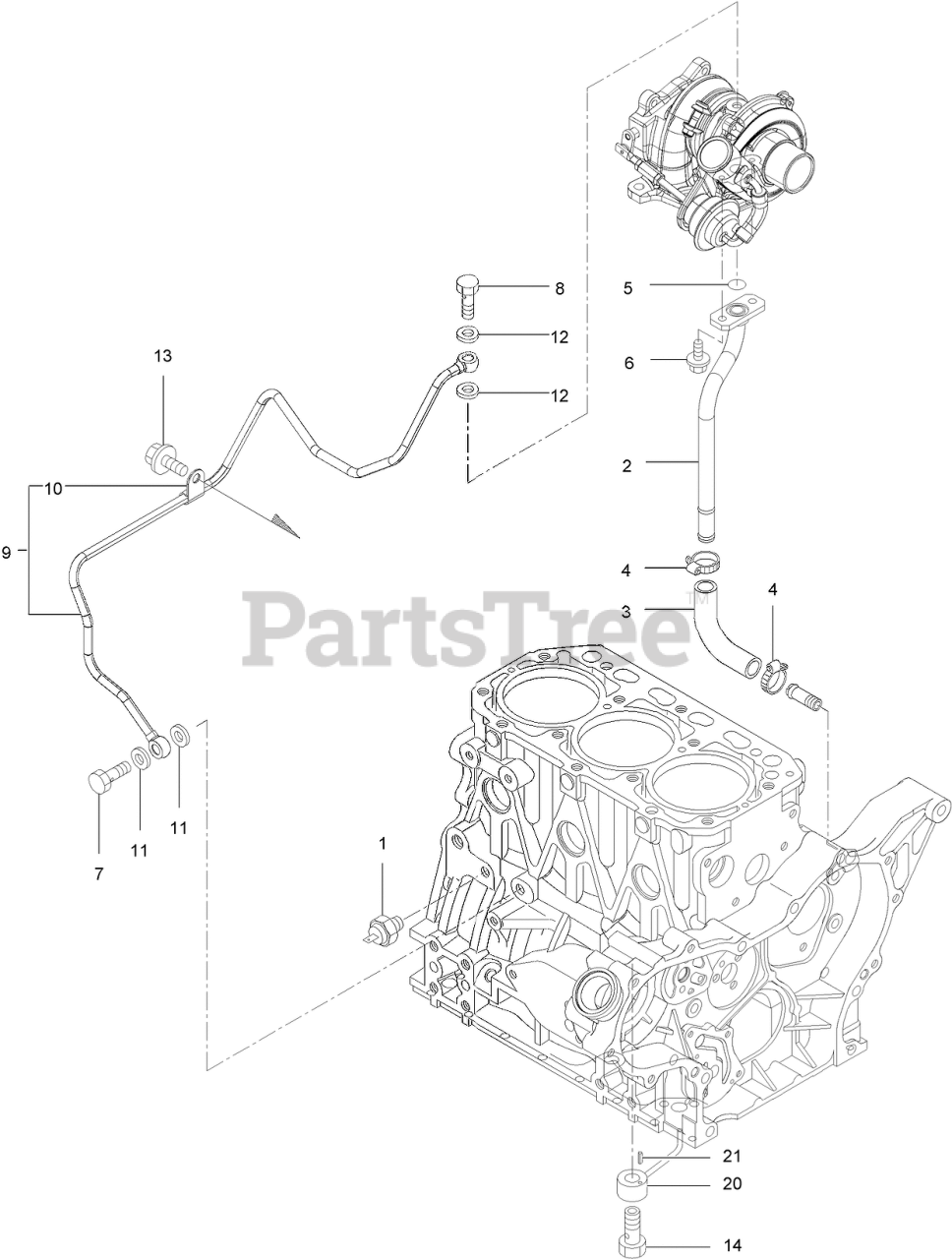

Lubrication and Oil System Assembly Parts Diagram

  • Title

1

Exmark 125-6918

SWITCH-OIL

$30.99

$

Usually ships in 3-6 days

0

2

Exmark 142-8730

PIPE, OIL RETURN

$172.99

$

Usually ships in 3-6 days

0

3

Exmark 127-3808

JOINT

$22.99

$

Usually ships in 3-6 days

0

4

Exmark 127-3169

CLAMP-HOSE

$19.99

$

Usually ships in 3-6 days

0

5

Exmark 125-7198

O-RING

$7.99

$

Usually ships in 3-6 days

0

6

Exmark 125-7208

BOLT

$4.99

$

Usually ships in 3-6 days

0

7

Exmark 125-6975

BOLT-JOINT, PIPE

$15.99

$

Usually ships in 3-6 days

0

8

Exmark 125-6952

BOLT-JOINT, PIPE

$22.99

$

Usually ships in 3-6 days

0

9

Exmark 139-6021

LUBE OIL PIPE ASM

$129.99

$

Usually ships in 3-6 days

0

10

Exmark 125-6976

RETAINER

$9.99

$

Usually ships in 3-6 days

0

11

Exmark 125-7175

WASHER-SEAL

$7.49

$

Usually ships in 3-6 days

0

12

Exmark 125-7193

GASKET

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 93-0362

BOLT

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 125-7105

CHECK VALVE ASM

$44.99

$

Usually ships in 3-6 days

0

20

Exmark 125-7098

NOZZLE

$46.99

$

Usually ships in 3-6 days

0

21

Exmark 125-7182

PIN-SPRING

$4.99

$

Usually ships in 3-6 days

0
