Exmark LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 411294212 - 413950473) (Rev A) (2022) Hydraulic Drive Assembly Parts Lookup with Diagrams

1

Exmark 142-5034

HYD RESERVOIR ASM

$903.99

$

Usually ships in 3-6 days

2

Exmark 126-6776

HOSE

$24.99

$

Usually ships in 3-6 days

3

Exmark 126-6767

HOSE-RETURN

$18.99

$

Usually ships in 3-6 days

4

Exmark 126-6768

HOSE-RETURN

$22.99

$

Usually ships in 3-6 days

5

Exmark 126-6778

HOSE

$13.99

$

Usually ships in 3-6 days

6

Exmark 126-6766

HOSE

$6.99

$

Usually ships in 3-6 days

7

Exmark 126-8688

TUBE ASM

$182.99

$

Usually ships in 3-6 days

8

Exmark 142-5180

HOSE ASM-HYD HP

$60.99

$

Usually ships in 3-6 days

9

Exmark 126-6774

HOSE-SUCTION

$23.99

$

Usually ships in 3-6 days

10

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

11

Exmark 126-7547

ROD-SUPPORT, HYD TANK

$22.99

$

Usually ships in 3-6 days

12

Exmark 126-7546

ROD-SUPPORT, HYD TANK

$28.99

$

Usually ships in 3-6 days

13

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

14

Exmark 112-6365

DIPSTICK

$90.99

$

Usually ships in 3-6 days

15

Exmark 94-8166

O-RING

$4.99

$

Usually ships in 3-6 days

16

Exmark 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 4 left!

17

Exmark 340-155

FITTING-STRAIGHT

$30.99

$

Usually ships in 3-6 days

17:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

17:2

Exmark 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

18

Exmark 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

18:1

Exmark 237-65

O-RING

$2.99

$

In Stock, only 4 left!

18:2

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 19

19

Exmark 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

19:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 14

19:2

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

20

Exmark 340-105

FITTING-ELBOW, 90 DEG

$44.99

$

In Stock, only 1 left!

20:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 19

20:2

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 14

21

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

21:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

22

Exmark 87-8170

FITTING-90

$49.99

$

Usually ships in 3-6 days

22:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 19

23

Exmark 354-95

FITTING-STRAIGHT

$7.49

$

Usually ships in 3-6 days

24

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

25

Exmark 68-6150

BREATHER

$28.99

$

In Stock, only 1 left!

26

Exmark 126-8684

HOSE ASM

$59.99

$

In Stock, only 1 left!

27

Exmark 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

27:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

27:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

28

Exmark 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

29

Exmark 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 3 left!

30

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

31

Exmark 142-5791-03

MOTOR MOUNT, R [BLACK]

$332.99

$

Usually ships in 3-6 days

32

Exmark 142-5790-03

WASHER-SPRING DISC 1/2

$332.99

$

Usually ships in 3-6 days

33

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

34

Exmark 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

35

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

36

Exmark 126-7841

CYLINDER-LIFT

$547.99

$

Usually ships in 3-6 days

36:1

Exmark 142-2767

CYL Repair Kit

$113.99

$

Usually ships in 3-6 days

37

Exmark 142-8862

VALVE ASM-LIFT AND FOLD

$1689.99

$

Usually ships in 3-6 days

38

Exmark 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 14

39

Exmark 321-28

SCREW-HH

$5.49

$

Usually ships in 3-6 days

40

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

41

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

42

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

43

Exmark 126-8692

FITTING-HYD, STRAIGHT

$20.99

$

Usually ships in 3-6 days

43:1

Exmark 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

43:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 10

44

Exmark 126-8683

HOSE ASM

$68.99

$

Usually ships in 3-6 days

45

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

46

Exmark 142-5548

PLANETARY ASM-11.96:1

$2237.99

$

Usually ships in 3-6 days

47

Exmark 142-5691

MOTOR-HYD, PISTON, 30CC

$1529.99

$

Usually ships in 3-6 days

48

Exmark 340-92

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

48:1

Exmark 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

48:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 10

49

Exmark 340-8

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

49:1

Exmark 237-65

O-RING

$2.99

$

In Stock, only 4 left!

49:2

Exmark 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

50

Exmark 142-5611

HOSE-HP

$117.99

$

Usually ships in 3-6 days

51

Exmark 142-5612

HOSE-HP

$117.99

$

Usually ships in 3-6 days

52

Exmark 142-6631

HOSE ASM-HYDLPTEE

$118.99

$

Usually ships in 3-6 days

53

Exmark 142-6640

HOSE ASM-HYD HP TEE

$118.99

$

Usually ships in 3-6 days

54

Exmark 142-6639

HOSE ASM-HYD HP TEE

$127.99

$

Usually ships in 3-6 days

55

Exmark 142-5768

HOSE ASM-HYDLP

$61.99

$

Usually ships in 3-6 days

56

Exmark 142-3892

VALVE-HYD, BRK-2SPD

$544.99

$

Usually ships in 3-6 days

57

Exmark 340-82

FITTING-ELBOW, 90 DEG

$24.99

$

In Stock, only 2 left!

57:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

57:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 10

58

Exmark 340-137

FITTING

$45.99

$

Usually ships in 3-6 days

58:1

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 10

58:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

59

Exmark 340-138

FITTING-HYD, 45 DEG

$37.99

$

Usually ships in 3-6 days

59:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

59:2

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

60

Exmark 33106-025

SCREW-HHF

$

Not available 

61

Exmark 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

61:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

61:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

62

Exmark 237-166

O-RING

$11.99

$

Usually ships in 3-6 days

63

Exmark AUH339762

TEE

$141.99

$

Usually ships in 3-6 days

64

Exmark 142-5778

HOSE ASM-HYD HP

$67.99

$

Usually ships in 3-6 days

65

Exmark 142-6632

HOSE-HP

$117.99

$

Usually ships in 3-6 days

66

Exmark 142-5789

HOSE ASM-HYD HP

$48.99

$

Usually ships in 3-6 days

67

Exmark 9202424

SPACER

$

Not available 

68

Exmark 94-2702

SCREW-HH

$8.49

$

Usually ships in 3-6 days

69

Exmark 340-99

Fitting-HYD, 90 DEG

$40.99

$

Usually ships in 3-6 days

69:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 14

69:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

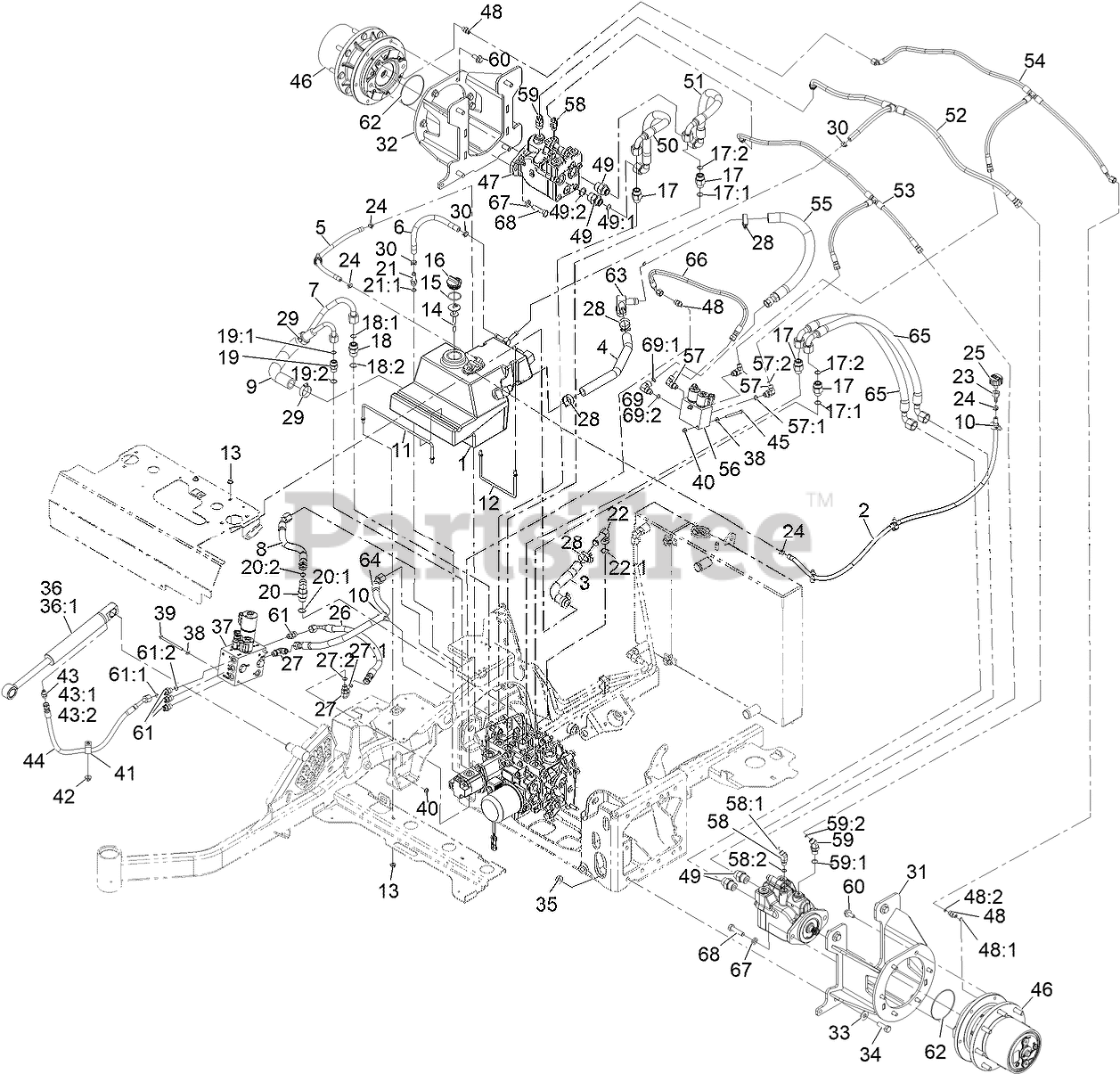

LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 411294212 - 413950473) (Rev A) (2022) Hydraulic Drive Assembly Parts Diagram

Hydraulic Drive Assembly Parts Diagram
