Exmark LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 411294212 - 413950473) (Rev A) (2022) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

2

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

3

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

5

Exmark 108-8483

SPACER-PLAIN

$14.99

$

Usually ships in 3-6 days

6

Exmark 109-5013

PANHARD ROD ASM

$142.99

$

In Stock, Qty 5

6:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 11

6:3

Exmark 109-5010

SPACER

$13.99

$

In Stock, Qty 20+

7

Exmark 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 20+

8

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, Qty 20+

9

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 20+

10

Exmark 116-0559

BOLT-TAP

$6.49

$

Usually ships in 3-6 days

11

Exmark 116-0797-03

LINK-LIFT, DECK

$136.99

$

Usually ships in 3-6 days

12

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

13

Exmark 116-2022

SCREW-HHF, SHOULDER

$8.99

$

Usually ships in 3-6 days

14

Exmark 116-5584

PIN-HOC

$5.49

$

In Stock, Qty 10

15

Exmark 126-7866

HOC ASM

$315.99

$

Usually ships in 3-6 days

15:2

Exmark 126-9275

DECAL-HEIGHT OF CUT

$17.99

$

Usually ships in 3-6 days

15:3

Exmark 135-1432

DECAL-HEIGHT OF CUT, OUTER

$17.99

$

Usually ships in 3-6 days

16

Exmark 142-8321

SUPPORT-CROSS SHAFT

$68.99

$

Usually ships in 3-6 days

17

Exmark 130-6481

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

18

Exmark 135-1215

SPACER-PIVOT

$14.99

$

Usually ships in 3-6 days

19

Exmark 142-8093-03

DECKLIFT-FRONT, 144 [BLACK]

$574.99

$

Usually ships in 3-6 days

20

Exmark 142-4003

DECK STRUT ASM 85A

$42.99

$

Usually ships in 3-6 days

20:1

Exmark 109-5010

SPACER

$13.99

$

In Stock, Qty 20+

20:2

Exmark 135-2466

BUSHING-RUBBER

$7.99

$

Usually ships in 3-6 days

21

Exmark 142-7187

LINK, DECK LIFT ADJUSTER

$115.99

$

Usually ships in 3-6 days

22

Exmark 142-7188

TRUNNION, DECK LIFT

$75.99

$

Usually ships in 3-6 days

23

Exmark 142-7192

SPACER, DECK LINK

$16.99

$

Usually ships in 3-6 days

24

Exmark 142-7197-03

WLD, DECK LIFT-REAR

$574.99

$

Usually ships in 0 days

25

Exmark 142-7212

NUT-HEX

$2.99

$

Usually ships in 3-6 days

26

Exmark 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

27

Exmark 325-11

SCREW-HH

$3.49

$

In Stock, Qty 7

28

Exmark 325-17

SCREW-HH

$6.49

$

In Stock, Qty 20+

29

Exmark 3231-31

SCREW-CARR

$7.49

$

In Stock, Qty 20+

30

Exmark 3231-10

SCREW-CARR

$4.99

$

In Stock, only 4 left!

31

Exmark 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

32

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

33

Exmark 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

34

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

35

Exmark 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

36

Exmark 116-0780

SCREW-SHOULDER, HHF 1/2-13 X 1.12

$9.49

$

In Stock, only 2 left!

37

Exmark 3-6803

WASHER-ADJUSTING

$8.49

$

Usually ships in 3-6 days

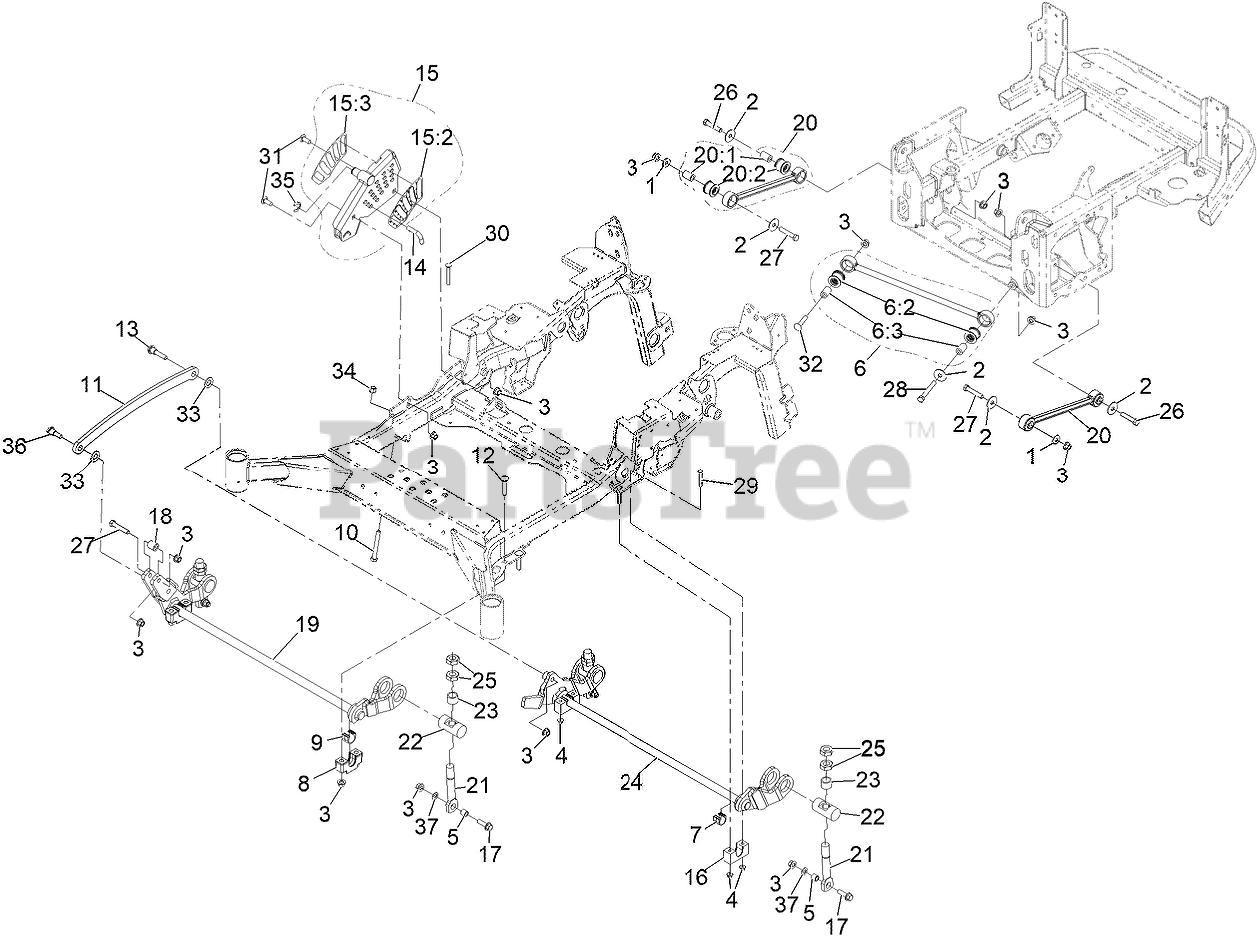

LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 411294212 - 413950473) (Rev A) (2022) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
