LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 411294212 - 413950473) (Rev A) (2022) Center Deck Assembly - 2 Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

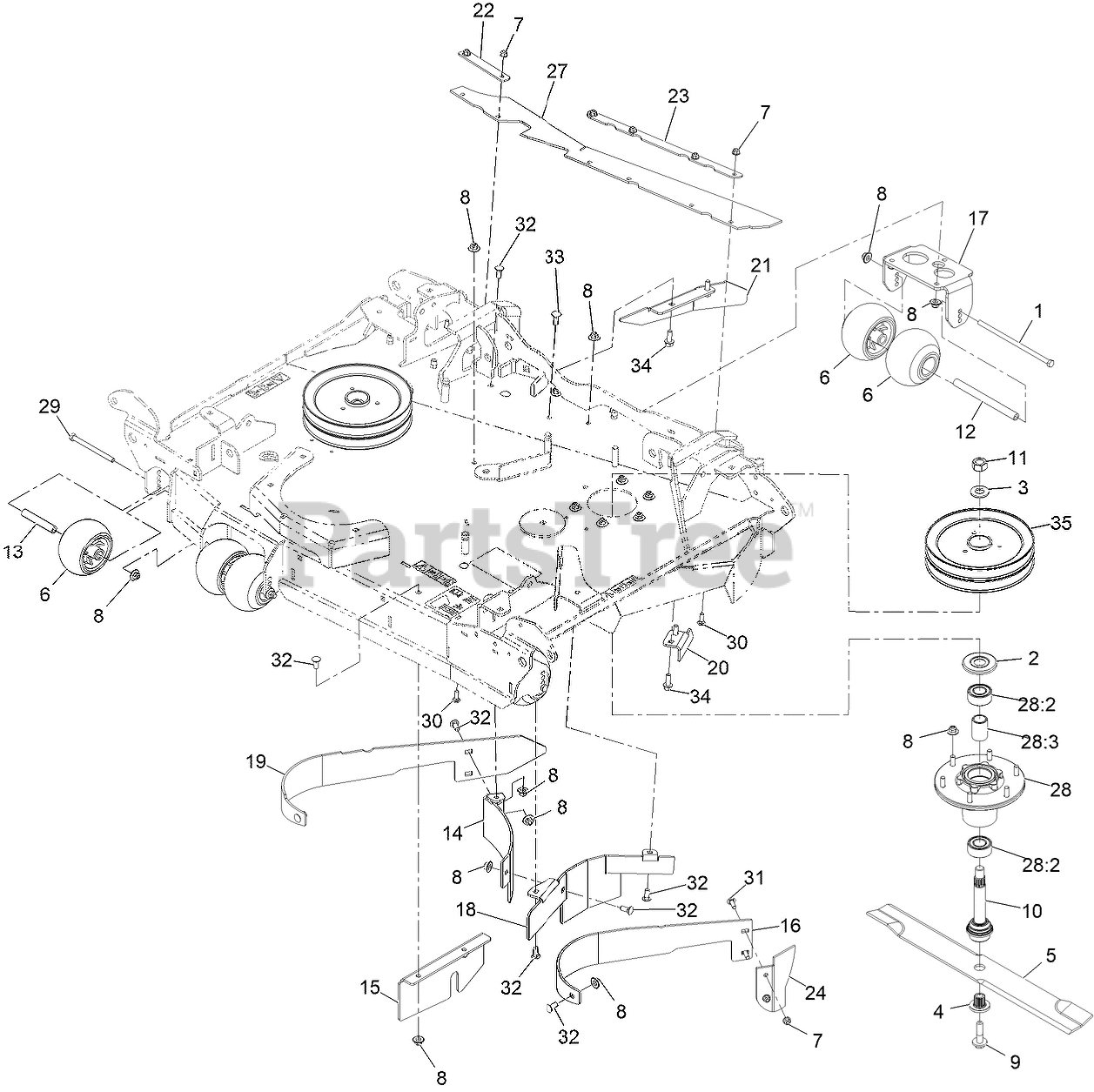

Center Deck Assembly - 2 Parts Diagram

  • Title

1

Exmark 99-7203

SCREW-HH

$9.99

$

In Stock, Qty 10

0

2

Exmark 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, only 2 left!

0

3

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

4

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

5

Exmark 103-6389

USE 103-6389-S
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 6

0

6

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 5

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

10

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 9

0

11

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 9

0

12

Exmark 126-6115

SPACER-WHEEL

$11.99

$

In Stock, Qty 18

0

13

Exmark 126-7140

SPACER-WHEEL SHORT

$15.99

$

In Stock, only 3 left!

0

14

Exmark 135-0601-01

BAFFLE-CENTER, REAR (RH)

$60.99

$

Usually ships in 3-6 days

0

15

Exmark 135-0603-01

PLATE-BLOCK, FRONT

$28.99

$

Usually ships in 3-6 days

0

16

Exmark 135-0792-01

BAFFLE-DOGLEG, CENTER (LH

$69.99

$

Usually ships in 3-6 days

0

17

Exmark 135-1036-01

BRACKET-ANTISCALP, REAR

$53.99

$

Usually ships in 3-6 days

0

18

Exmark 135-1827-01

BAFFLE-CENTER

$52.99

$

Usually ships in 3-6 days

0

19

Exmark 135-2451-01

BAFFLE-DOGLEG, CENTER (RH

$69.99

$

Usually ships in 3-6 days

0

20

Exmark 135-2452-01

BAFFLE-BREAKER

$15.99

$

Usually ships in 3-6 days

0

21

Exmark 135-2453-01

PLATE-FIN, DISCHARGE

$31.99

$

Usually ships in 3-6 days

0

22

Exmark 135-2455-03

SUPPORT-FLAP, LH

$7.99

$

Usually ships in 3-6 days

0

23

Exmark 135-2457-03

SUPPORT-FLAP, LH

$13.99

$

Usually ships in 3-6 days

0

24

Exmark 135-2458

GUARD-DISCHARGE

$7.99

$

Usually ships in 3-6 days

0

27

Exmark 135-2618

FLAP-DISCHARGE

$35.99

$

Usually ships in 3-6 days

0

28

Exmark 135-3437

ASM-CUTTER HSG

$170.99

$

In Stock, only 2 left!

0

28:2

Exmark 134-6634

BEARING-3205 TRASHGUARD

$31.99

$

Usually ships in 3-6 days

0

28:3

Exmark 135-3440

SPACER-BEARING

$8.49

$

In Stock, only 2 left!

0

29

Exmark 323-38

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

30

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

31

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

32

Exmark 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

33

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

34

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

35

Exmark 126-6634

SHEAVE-DOUBLE 96RD

$169.99

$

In Stock, only 3 left!

0
