LZS850EKA724W0 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX850V (SN: 402082300 - 404314158) (2018) Motion Control Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX850V

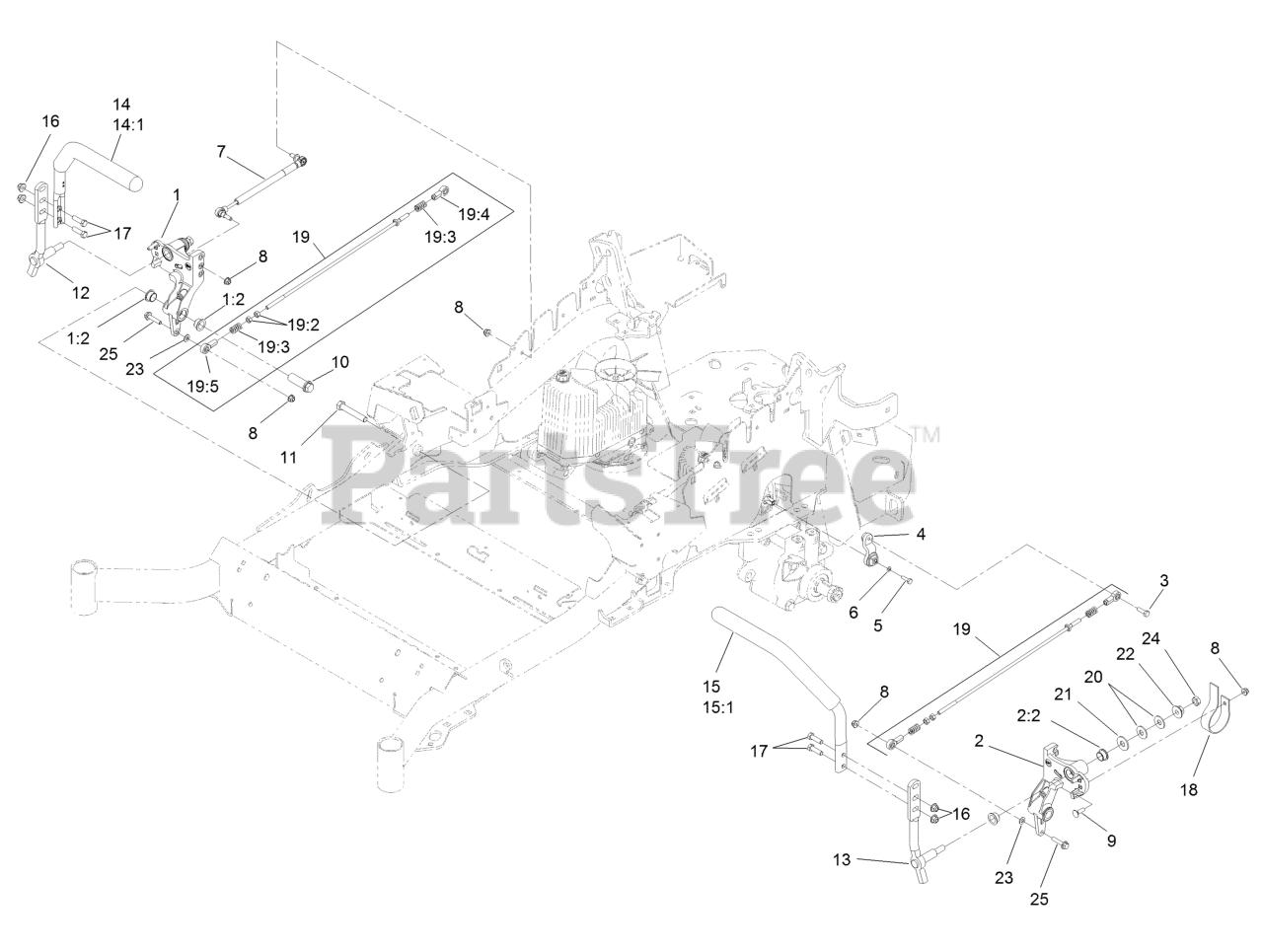

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 116-0880

RH Motion Control And Bushing ASM

$59.99

$

In Stock, only 1 left!

0

1:2

Exmark 109-8054

Bushing-Flange

$5.49

$

In Stock, Qty 20+

0

2

Exmark 116-0881

LH Motion Control And Bushing ASM

$59.99

$

In Stock, only 1 left!

0

2:2

Exmark 109-8054

Bushing-Flange

$5.49

$

In Stock, Qty 20+

0

3

Exmark 116-0648

Screw-HH, Thread Locking

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-4581

Arm-Control, Pump

$9.49

$

In Stock, only 4 left!

0

5

Exmark 9080046

Screw-HH

$5.49

$

In Stock, Qty 16

0

6

Exmark 1-303435

Washer-Spring

$1.49

$

In Stock, Qty 14

0

7

Exmark 116-0027

Damper-Control, Motion
(Superseded to 142-8117)

$103.99

$

Usually ships in 3-6 days

0

8

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Exmark 3230-2

Bolt-CARR

$1.49

$

In Stock, Qty 5

0

10

Exmark 109-5891

Hub-Threaded

$14.99

$

In Stock, only 2 left!

0

11

Exmark 325-12

Screw-HH

$6.49

$

In Stock, only 2 left!

0

12

Exmark 116-0039

Lever-Control Motion, RH

$53.99

$

In Stock, only 1 left!

0

13

Exmark 116-0040

Lever-Control Motion, LH

$53.99

$

In Stock, only 1 left!

0

14

Exmark 109-6589

RH Steering Handle ASM
(Superseded to 135-4371)

$82.99

$

Usually ships in 3-6 days

0

14:1

Exmark 109-5668

Grip-Control, Lever

$14.99

$

In Stock, Qty 7

0

15

Exmark 109-6590

LH Steering Handle ASM
(Superseded to 135-4373)

$82.99

$

Usually ships in 3-6 days

0

15:1

Exmark 109-5668

Grip-Control, Lever

$14.99

$

In Stock, Qty 7

0

16

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 323-7

Screw-HH

$2.99

$

In Stock, Qty 20+

0

18

Exmark 109-5575

Spring-Leaf

$15.99

$

Usually ships in 3-6 days

0

19

Exmark 109-8106

Front Pump Linkage ASM

$76.99

$

Usually ships in 3-6 days

0

19:2

Exmark 3219-2

Nut-Hex

$0.99

$

In Stock, Qty 11

0

19:3

Exmark 1-323245

Spring-Compression

$6.49

$

In Stock, only 2 left!

0

19:4

Exmark 1-633152

Balljoint-LH

$20.99

$

In Stock, only 3 left!

0

19:5

Exmark 1-543017

Balljoint-RH

$20.99

$

In Stock, only 4 left!

0

20

Exmark 109-9505

Washer-Spring

$5.49

$

In Stock, only 4 left!

0

21

Exmark 3256-6

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

22

Exmark 32128-56

Nut-HF

$10.99

$

Usually ships in 3-6 days

0

23

Exmark 3256-23

Washer-Plain

$2.49

$

In Stock, Qty 20+

0

24

Exmark 3218-5

Nut-Jam

$1.49

$

In Stock, Qty 20+

0

25

Exmark 115-1794

Screw-HHF

$1.99

$

In Stock, Qty 11

0
