LZS850EKA724W0 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX850V (SN: 402082300 - 404314158) (2018) Deck Lift Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX850V

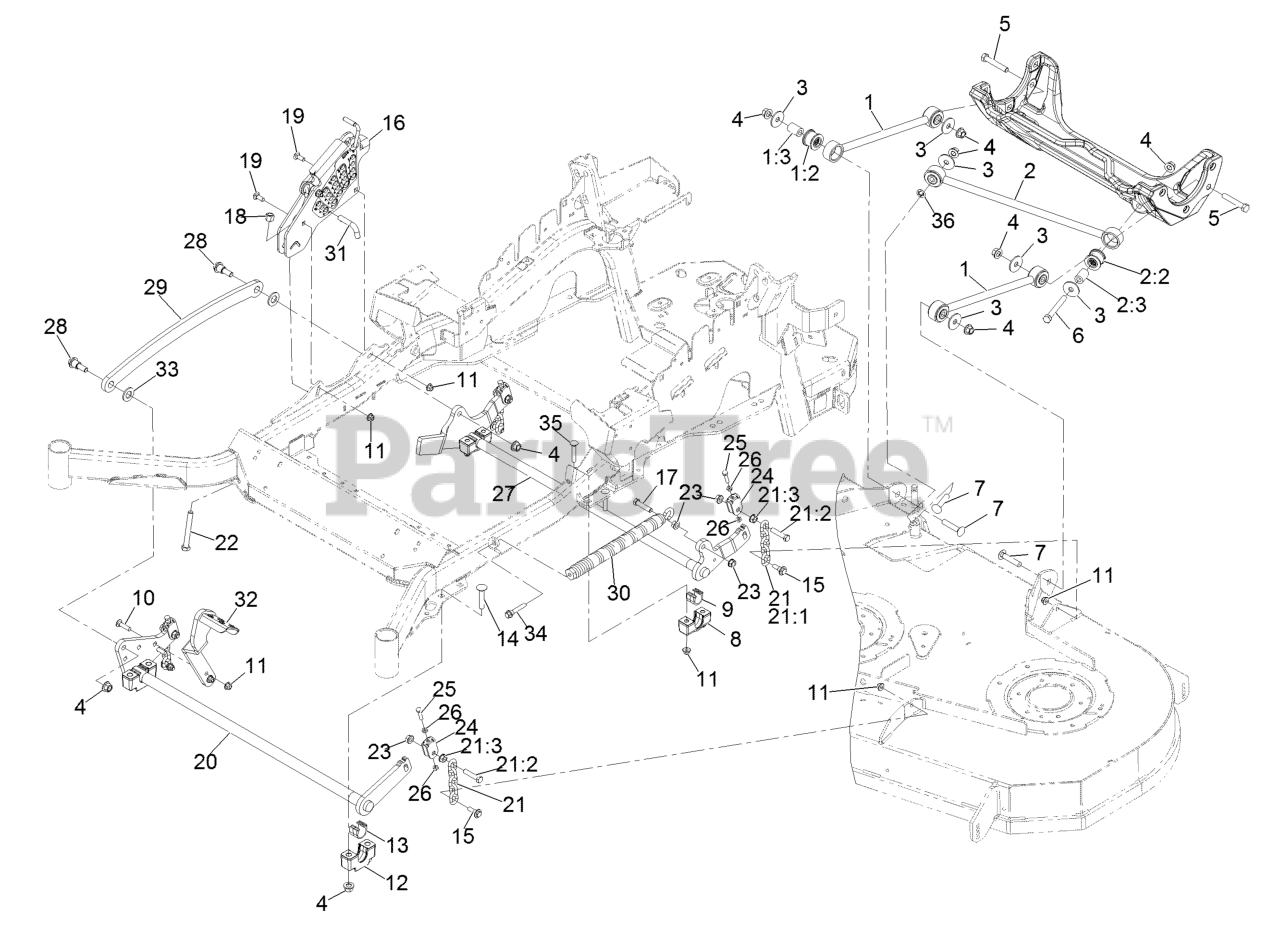

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 109-7952

Deck Strut ASM

$144.99

$

In Stock, only 2 left!

0

1:2

Exmark 109-5009

Bushing-Suspension, Rubber

$5.49

$

In Stock, Qty 15

0

1:3

Exmark 109-5010

Spacer

$12.99

$

In Stock, Qty 6

0

2

Exmark 109-5013

Panhard Rod ASM

$142.99

$

In Stock, Qty 6

0

2:2

Exmark 109-5009

Bushing-Suspension, Rubber

$5.49

$

In Stock, Qty 15

0

2:3

Exmark 109-5010

Spacer

$12.99

$

In Stock, Qty 6

0

3

Exmark 86-1990

Washer

$3.99

$

In Stock, only 3 left!

0

4

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

5

Exmark 325-12

Screw-HH 1/2-13 X 3

$6.49

$

In Stock, only 2 left!

0

6

Exmark 325-17

Screw-HH 1/2-13 X 4

$5.99

$

In Stock, Qty 6

0

7

Exmark 3233-34

Bolt-Carriage 1/2-13 X 2 1/2

$9.49

$

In Stock, only 3 left!

0

8

Exmark 127-0553

Support-Cross Shaft, Bearing Rear

$14.99

$

In Stock, only 4 left!

0

9

Exmark 109-7173

Bearing-Cross Shaft, Rear

$5.49

$

In Stock, Qty 6

0

10

Exmark 3231-4

Bolt-Carriage 3/8-16 X 1 1/2

$3.99

$

In Stock, Qty 20+

0

11

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 109-9409

Support-Cross Shaft, Bearing

$14.99

$

In Stock, only 4 left!

0

13

Exmark 109-9410

Bearing-Cross Shaft, Front

$5.49

$

In Stock, Qty 11

0

14

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 109-9840

Screw-Hex Flange 3/8-16 X .80

$5.49

$

In Stock, Qty 11

0

16

Exmark 109-7438

HOC ASM

$273.99

$

In Stock, only 1 left!

0

17

Exmark 109-9065

Screw-HH 7/16-14 X 2

$3.49

$

In Stock, Qty 9

0

18

Exmark 3296-23

Nut-Nyloc 1/2-13

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3231-2

Bolt-Carriage 3/8-16 X 1

$1.99

$

In Stock, Qty 12

0

20

Exmark 126-2475-03

Decklift-Front

$172.99

$

Usually ships in 3-6 days

0

21

Exmark 116-0756

Deck Lift Chain ASM

$14.99

$

In Stock, Qty 8

0

21:1

Exmark 1-633447

Chain-Lift, Deck

$10.99

$

In Stock, Qty 16

0

21:2

Exmark 109-9065

Screw-HH 7/16-14 X 2

$3.49

$

In Stock, Qty 9

0

21:3

Exmark 32128-37

Nut-Whizlock 7/16-14

$4.49

$

In Stock, Qty 17

0

22

Exmark 116-0559

Bolt-HH 1/2-13 X 4 Tap

$6.49

$

Usually ships in 3-6 days

0

23

Exmark 32128-37

Nut-Whizlock 7/16-14

$4.49

$

In Stock, Qty 17

0

24

Exmark 109-9066

Yoke-Adjust, Deck

$7.99

$

In Stock, only 2 left!

0

25

Exmark 322-47

Screw-HH 5/16-18 X 1 1/4

$2.99

$

In Stock, Qty 18

0

26

Exmark 3218-2

Nut-Jam 5/16-18

$0.99

$

In Stock, Qty 20+

0

27

Exmark 116-0459-03

Lift-Deck, Rear

$334.99

$

Usually ships in 3-6 days

0

28

Exmark 116-0780

Screw-Shoulder HHF 1/2-13 X 1.12

$9.49

$

In Stock, only 3 left!

0

29

Exmark 116-0797-03

Link-Lift, Deck

$136.99

$

Usually ships in 3-6 days

0

30

Exmark 116-0000

Spring-Extension

$136.99

$

Usually ships in 3-6 days

0

31

Exmark 116-5584

Pin-HOC

$5.49

$

In Stock, only 4 left!

0

32

Exmark 116-1919-01

Lever-Foot

$99.99

$

Usually ships in 3-6 days

0

33

Exmark 3256-28

Washer-3/4 SAE

$3.49

$

In Stock, Qty 20+

0

34

Exmark 92-7674

Screw-Shcs 3/8-16 X 2.212

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 14

0

36

Exmark 126-2916

Nut-Push

$1.49

$

In Stock, only 1 left!

0
