LZS850EKA604W0 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX850V (SN: 402082300 - 404314158) (2018) Wire Harness Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX850V

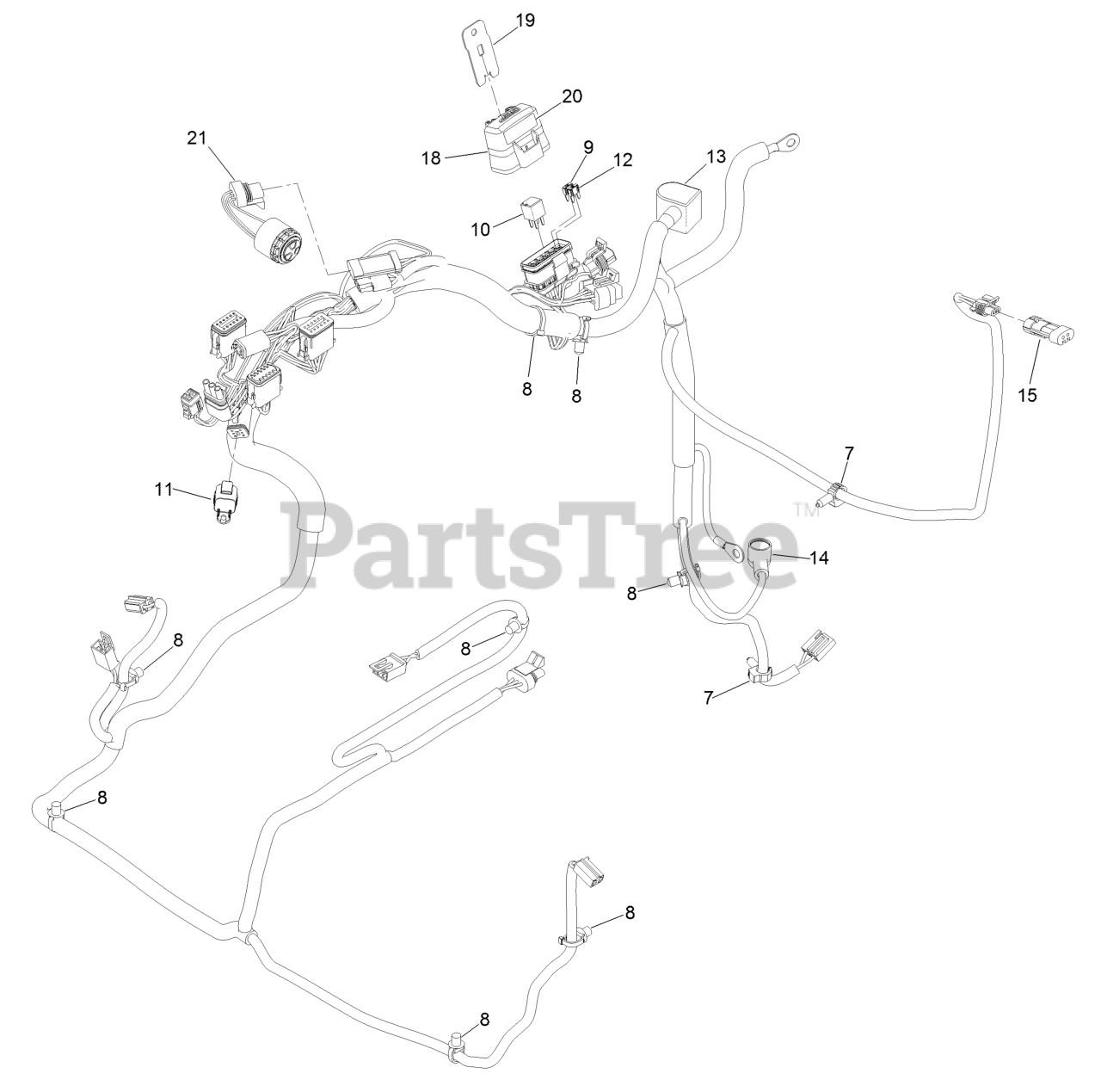

Wire Harness Assembly Parts Diagram

  • Title

7

Exmark 32180-037

Clip-Harness

$1.99

$

In Stock, Qty 6

0

8

Exmark 32180-030

Clip-Tie

$4.99

$

In Stock, Qty 7

0

9

Exmark 121-8868

Fuse-Mini Blade, 20 Amp

$5.99

$

Usually ships in 3-6 days

0

10

Exmark 126-3991

Relay-Micro

$41.99

$

In Stock, only 1 left!

0

11

Exmark 32180-156

Cap-Plug, 6 Way

$10.99

$

Usually ships in 3-6 days

0

12

Exmark 121-8867

Fuse-Mini Blade, 15 Amp

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 126-8876

Insulator-Battery

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 1-543393

Insulator-Solenoid

$5.49

$

In Stock, only 2 left!

0

15

Exmark 32160-070

Connector

$

$

Currently unavailable

18

Exmark 32180-176

Cover-Block, Fuse

$7.49

$

Usually ships in 3-6 days

0

19

Exmark 32180-177

Clip-Mounting

$5.99

$

In Stock, only 1 left!

0

20

Exmark 126-7875

Decal-Fuse

$3.49

$

Usually ships in 3-6 days

0

21

Exmark 126-6286

Alarm-Dual Tone

$61.99

$

In Stock, only 2 left!

0
