LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 413950474 & Above) (Rev A) (2023) Idler Mount Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

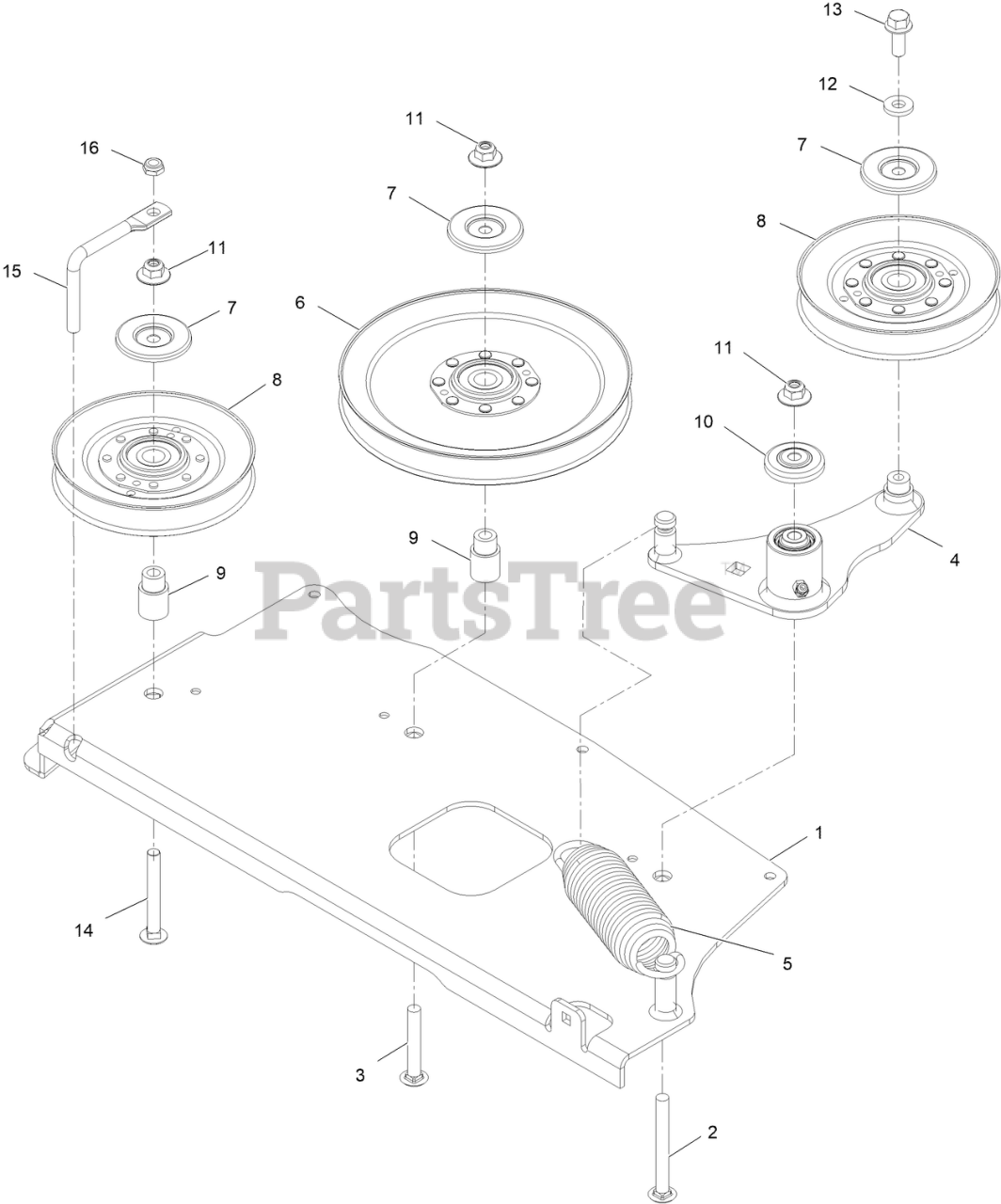

Idler Mount Assembly Parts Diagram

  • Title

1

Exmark 126-3373-01

MOUNT-IDLER

$245.99

$

Usually ships in 3-6 days

0

2

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$7.99

$

In Stock, only 4 left!

0

3

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 15

0

4

Exmark 126-2967

IDLER ARM ASM

$166.99

$

Usually ships in 3-6 days

0

1

Exmark 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

2

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

3

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

4

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

6

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

7

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

5

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

6

Exmark 126-7460

IDLER-V

$113.99

$

Usually ships in 3-6 days

0

7

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 3 left!

0

8

Exmark 126-8766

IDLER V

$94.99

$

Usually ships in 3-6 days

0

9

Exmark 126-3312

STANDOFF-IDLER

$17.99

$

Usually ships in 3-6 days

0

10

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

11

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

13

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

14

Exmark 3231-10

SCREW-CARR

$4.49

$

In Stock, only 4 left!

0

15

Exmark 135-0362

GUIDE-BELT

$26.99

$

Usually ships in 3-6 days

0

16

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0
