LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 413950474 & Above) (Rev A) (2023) Frame Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

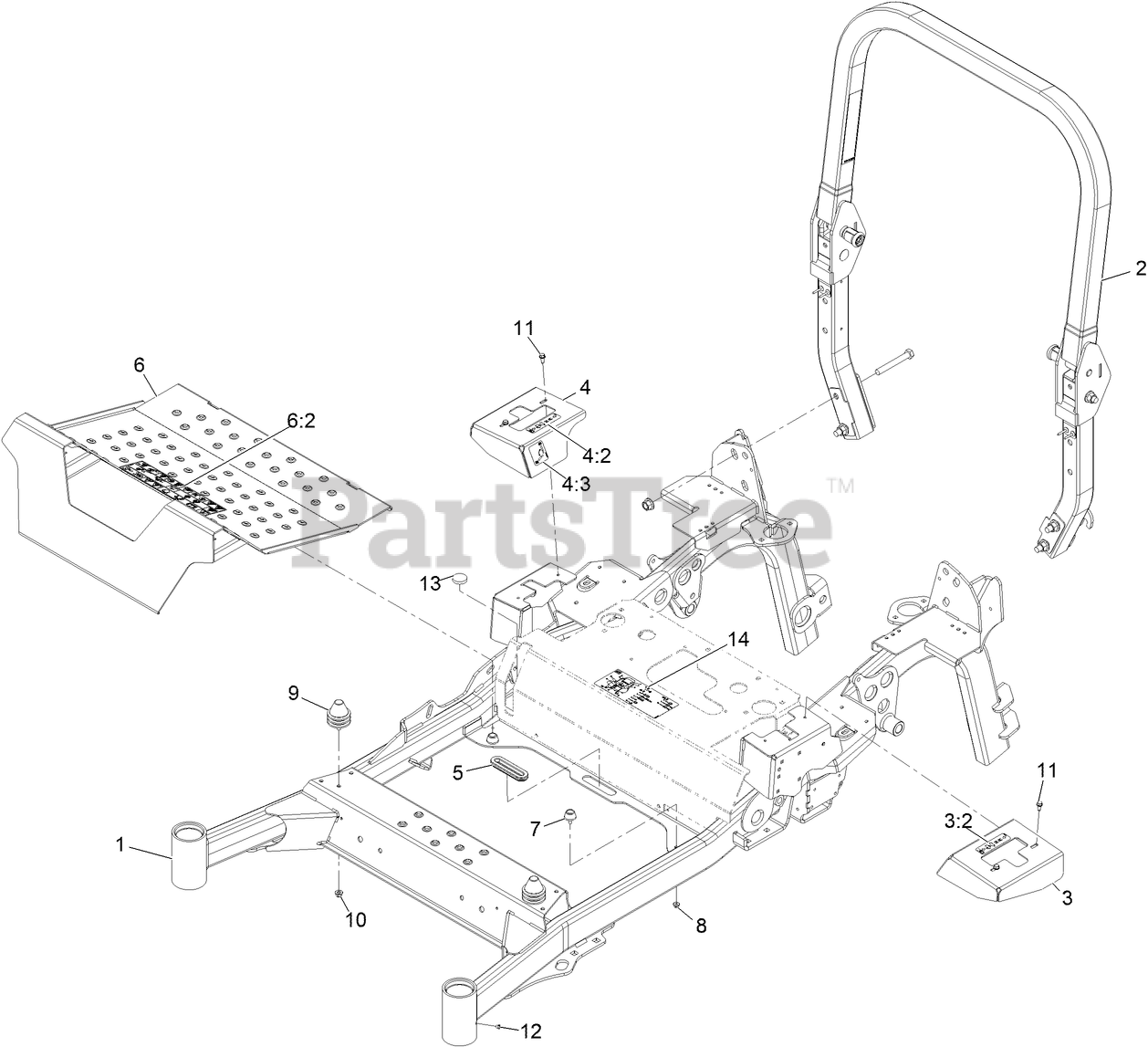

Frame Assembly Parts Diagram

  • Title

1

Exmark 146-1065

Mainframe ASM, Rd

$3272.99

$

Usually ships in 0 days

0

2

Exmark 142-7220

ROPS ASM

$771.99

$

Usually ships in 3-6 days

0

3

Exmark 126-1821

COVER-MOTION CONTROL, LH

$64.99

$

Usually ships in 3-6 days

0

3:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$23.99

$

In Stock, only 1 left!

0

4

Exmark 126-1831

COVER-MOTION CONTROL, RH

$76.99

$

Usually ships in 3-6 days

0

4:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$23.99

$

In Stock, only 1 left!

0

4:3

Exmark 116-5988

DECAL-PARK BRAKE, CE

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 126-7065

GROMMET-RUBBER

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 126-9066

PAN-FLOOR

$369.99

$

Usually ships in 3-6 days

0

6:2

Exmark 126-8383

DECAL-DANGER

$9.49

$

In Stock, only 1 left!

0

7

Exmark 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 15

0

8

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Exmark 126-5491

ISOLATOR

$20.99

$

Usually ships in 3-6 days

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, only 2 left!

0

12

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 10

0

13

Exmark 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 14

0

14

Exmark 126-9279

DECAL-SERVICE AID

$15.99

$

Usually ships in 3-6 days

0
