LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 411294212 - 413950473) (Rev B) (2022) Wire Harness Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

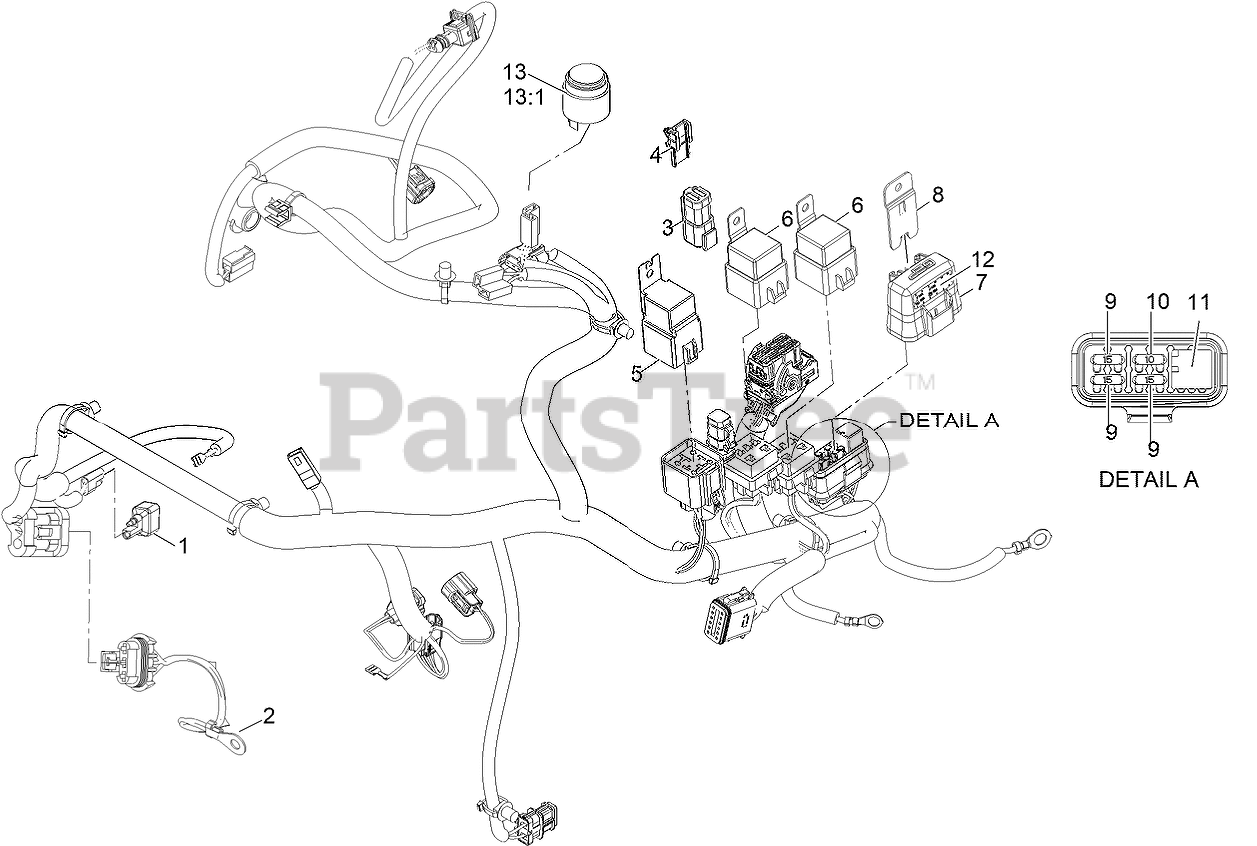

Wire Harness Assembly Parts Diagram

  • Title

1

Exmark 100-4918

DIODE

$23.99

$

In Stock, Qty 20+

0

2

Exmark 99-3441

HARNESS-WIRE, FUSIBLE LIN

$172.99

$

Usually ships in 3-6 days

0

3

Exmark 32160-359

Connector (6M)

$7.49

$

Usually ships in 0 days

0

4

Exmark 32180-103

CLIP-CONNECTOR

$11.99

$

Usually ships in 3-6 days

0

5

Exmark 127-7514

RELAY-70A

$37.99

$

In Stock, only 1 left!

0

6

Exmark 99-7430

RELAY-MINI

$26.99

$

In Stock, only 2 left!

0

7

Exmark 32180-176

COVER-BLOCK, FUSE

$8.49

$

Usually ships in 3-6 days

0

8

Exmark 32180-177

CLIP-MOUNTING

$5.99

$

In Stock, only 1 left!

0

9

Exmark 121-8867

FUSE-MINI BLADE, 15 AMP

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 121-8866

FUSE-MINI BLADE, 10 AMP

$5.99

$

Usually ships in 3-6 days

0

11

Exmark 126-3991

RELAY-MICRO

$43.99

$

In Stock, Qty 15

0

12

Exmark 126-9100

DECAL-FUSE

$7.99

$

Usually ships in 3-6 days

0

13

Exmark 80-9330

Audio Alarm ASM

$155.99

$

Usually ships in 3-6 days

0

13:1

Exmark 104-5107

Nut-Plastic, Knurled

$6.49

$

Usually ships in 3-6 days

0
