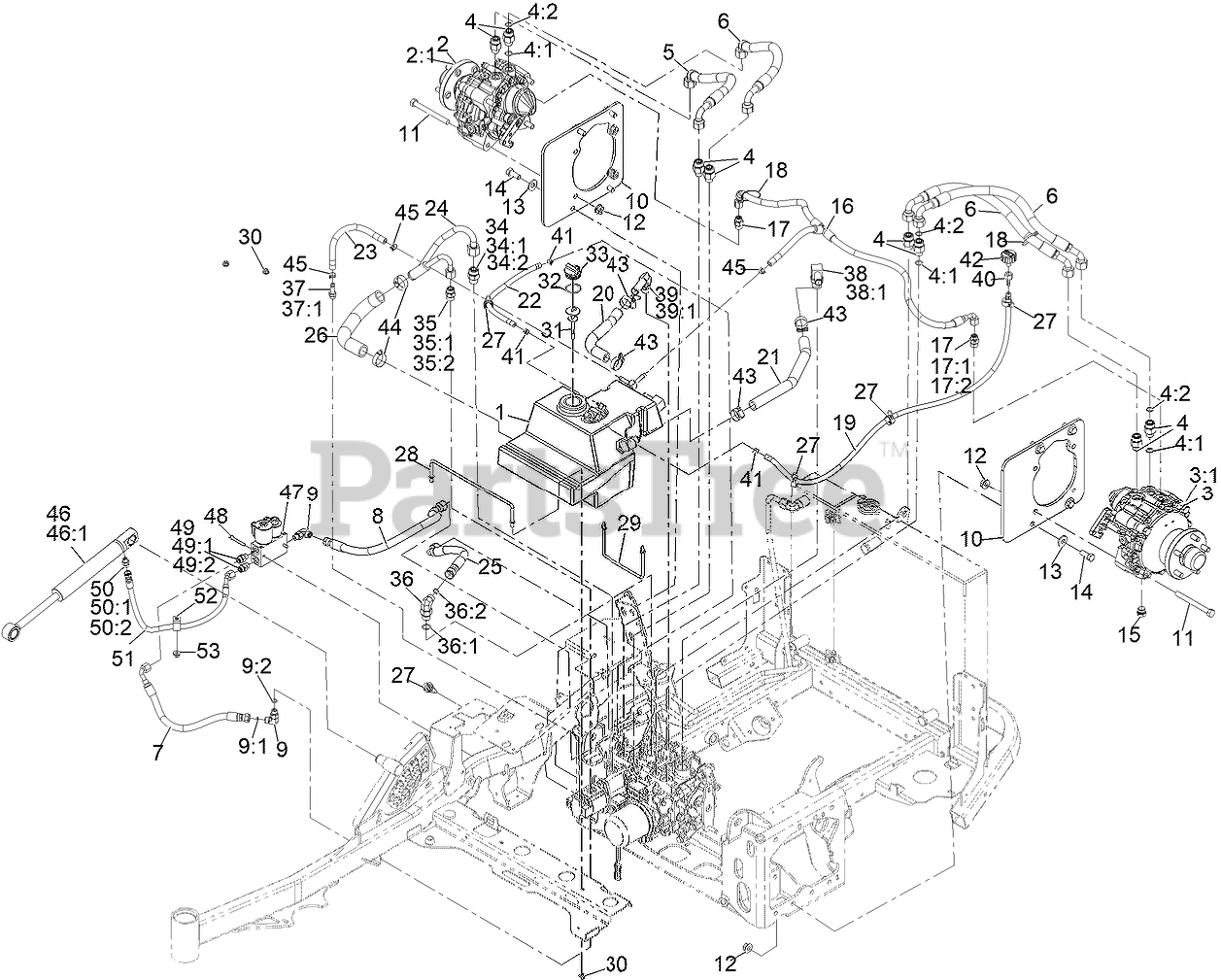

LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 411294212 - 413950473) (Rev A) (2022) Hydraulic Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 142-5034

HYD RESERVOIR ASM

$828.99

$

Usually ships in 3-6 days

0

2

Exmark 126-8133

MOTOR-HYD, RH

$1566.99

$

Usually ships in 3-6 days

0

2:1

Exmark 135-5333

5 STUD WHEEL HUB KIT

$270.99

$

Usually ships in 3-6 days

0

3

Exmark 126-8134

MOTOR-HYD, LH

$1566.99

$

Usually ships in 3-6 days

0

3:1

Exmark 135-5333

5 STUD WHEEL HUB KIT

$270.99

$

Usually ships in 3-6 days

0

4

Exmark 340-155

FITTING-STRAIGHT

$30.99

$

Usually ships in 3-6 days

0

4:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

4:2

Exmark 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

5

Exmark 126-8686

HOSE ASM

$129.99

$

Usually ships in 3-6 days

0

6

Exmark 126-8687

HOSE ASM

$129.99

$

Usually ships in 3-6 days

0

7

Exmark 126-8684

HOSE ASM

$59.99

$

In Stock, only 1 left!

0

8

Exmark 126-8685

HOSE ASM

$78.99

$

In Stock, only 1 left!

0

9

Exmark 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

9:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

9:2

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

10

Exmark 126-7469-03

PLATE-MOTOR

$96.99

$

Usually ships in 3-6 days

0

11

Exmark 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

12

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

13

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

14

Exmark 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

15

Exmark 142-2435

PLUG-MAGNETIC

$12.99

$

In Stock, only 3 left!

0

16

Exmark 135-3731

TEE HOSE ASM

$130.99

$

Usually ships in 3-6 days

0

17

Exmark 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

17:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

17:2

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

18

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

19

Exmark 126-6776

HOSE

$24.99

$

Usually ships in 3-6 days

0

20

Exmark 126-6767

HOSE-RETURN

$18.99

$

Usually ships in 3-6 days

0

21

Exmark 126-6768

HOSE-RETURN

$22.99

$

Usually ships in 3-6 days

0

22

Exmark 126-6778

HOSE

$13.99

$

Usually ships in 3-6 days

0

23

Exmark 126-6766

HOSE

$6.99

$

Usually ships in 3-6 days

0

24

Exmark 126-8688

TUBE ASM

$165.99

$

Usually ships in 3-6 days

0

25

Exmark 126-8682

HOSE ASM

$66.99

$

Usually ships in 3-6 days

0

26

Exmark 126-6774

HOSE-SUCTION

$23.99

$

Usually ships in 3-6 days

0

27

Exmark 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

28

Exmark 126-7547

ROD-SUPPORT, HYD TANK

$22.99

$

Usually ships in 3-6 days

0

29

Exmark 126-7546

ROD-SUPPORT, HYD TANK

$28.99

$

Usually ships in 3-6 days

0

30

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

31

Exmark 112-6365

DIPSTICK

$88.99

$

Usually ships in 3-6 days

0

32

Exmark 94-8166

O-RING

$4.99

$

Usually ships in 3-6 days

0

33

Exmark 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 1 left!

0

34

Exmark 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

34:1

Exmark 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

34:2

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

35

Exmark 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

35:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

35:2

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

36

Exmark 340-105

FITTING-ELBOW, 90 DEG

$42.99

$

In Stock, only 1 left!

0

36:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

36:2

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

37

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

37:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

38

Exmark 353-987

FITTING-ELBOW, 90

$79.99

$

Usually ships in 3-6 days

0

38:1

Exmark 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

39

Exmark 87-8170

FITTING-90

$47.99

$

Usually ships in 3-6 days

0

39:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

40

Exmark 354-95

FITTING-STRAIGHT

$7.49

$

Usually ships in 3-6 days

0

41

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

42

Exmark 68-6150

BREATHER

$28.99

$

In Stock, only 1 left!

0

43

Exmark 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

0

44

Exmark 2412-34

CLAMP-HOSE

$2.49

$

In Stock, Qty 5

0

45

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

46

Exmark 126-7841

CYLINDER-LIFT

$495.99

$

Usually ships in 3-6 days

0

46:1

Exmark 142-2767

CYL Repair Kit

$113.99

$

Usually ships in 3-6 days

0

47

Exmark 131-1934

DECK LIFT VALVE ASM

$817.99

$

Usually ships in 3-6 days

0

48

Exmark 117-5248

SCREW-HWHTF

$2.99

$

In Stock, Qty 17

0

49

Exmark 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

49:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

49:2

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

50

Exmark 126-8692

FITTING-HYD, STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

50:1

Exmark 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

50:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

51

Exmark 126-8683

HOSE ASM

$68.99

$

Usually ships in 3-6 days

0

52

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

53

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+
