LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 408644346 - 411294211) (Rev B) (2021) Harness Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

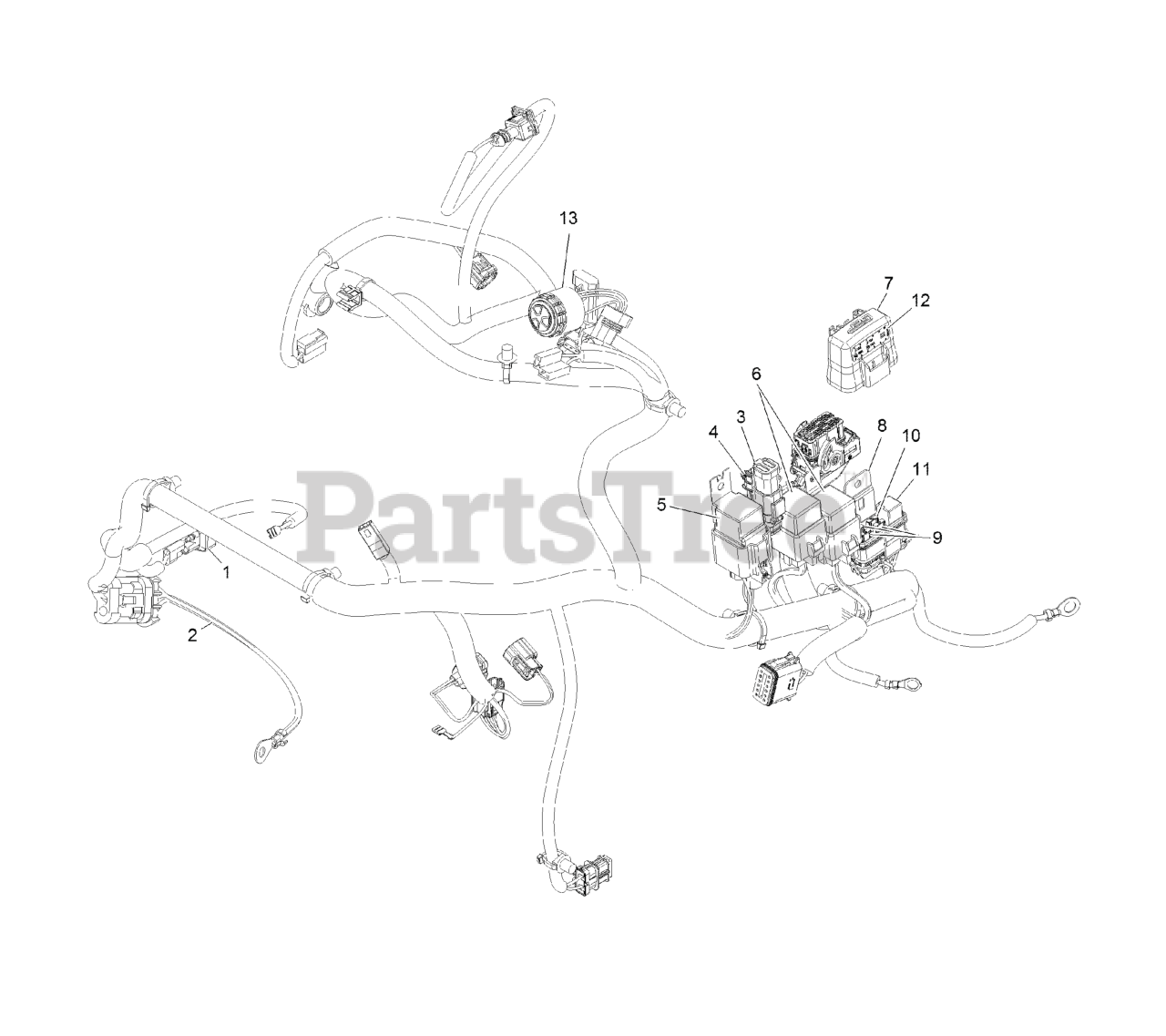

Harness Assembly Parts Diagram

  • Title

1

Exmark 100-4918

DIODE

$21.99

$

Usually ships in 3-6 days

0

2

Exmark 99-3441

HARNESS-WIRE, FUSIBLE LIN

$157.99

$

Usually ships in 3-6 days

0

3

Exmark 32160-359

Connector (6M)

$

$

Currently unavailable

4

Exmark 32180-103

CLIP-CONNECTOR

$9.99

$

Usually ships in 3-6 days

0

5

Exmark 127-7514

RELAY-70A

$34.99

$

In Stock, only 1 left!

0

6

Exmark 99-7430

RELAY-MINI

$23.99

$

Usually ships in 3-6 days

0

7

Exmark 32180-176

COVER-BLOCK, FUSE

$7.49

$

Usually ships in 3-6 days

0

8

Exmark 32180-177

CLIP-MOUNTING

$5.49

$

In Stock, only 1 left!

0

9

Exmark 121-8867

FUSE-MINI BLADE, 15 AMP

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 121-8866

FUSE-MINI BLADE, 10 AMP

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 126-3991

RELAY-MICRO

$39.99

$

Usually ships in 3-6 days

0

12

Exmark 126-9100

DECAL-FUSE

$6.49

$

Usually ships in 3-6 days

0

13

Exmark 126-6286

ALARM-DUAL TONE

$59.99

$

In Stock, only 2 left!

0
