LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 406294345 - 408644345) (Rev A) (2020) Transmission Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

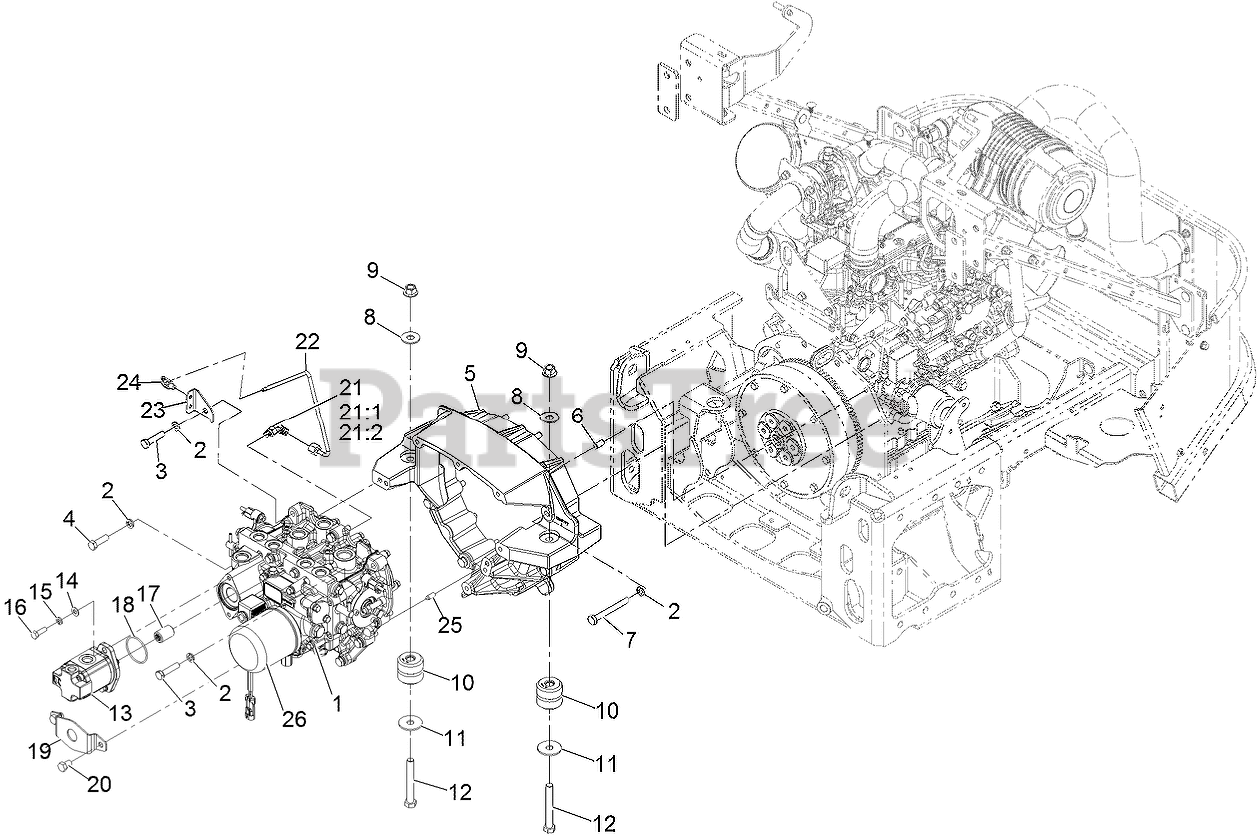

Transmission Assembly Parts Diagram

  • Title
1

Exmark 131-5510

TRANSMISSON ASM

$7695.99

$

Usually ships in 3-6 days

0

2

Exmark 48-9590

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

3

Exmark 33115-045

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

4

Exmark 33115-035

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 126-8786

Housing-Flywheel

$349.99

$

Usually ships in 3-6 days

0

6

Exmark 126-8893

PIN-DOWEL

$16.99

$

Usually ships in 3-6 days

0

7

Exmark 33115-090

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

8

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

10

Exmark 126-6095

MOUNT-ISOLATOR

$18.99

$

Usually ships in 3-6 days

0

11

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

12

Exmark 325-15

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

13

Exmark 112-9542

HYD GEAR PUMP ASM

$1084.99

$

Usually ships in 3-6 days

0

14

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Exmark 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

17

Exmark 108-9920

COUPLER-SPLINE

$52.99

$

Usually ships in 3-6 days

0

18

$4.49

$

Usually ships in 3-6 days

0

19

Exmark 114-4088

SHIELD-SEAL

$28.99

$

Usually ships in 3-6 days

0

20

Exmark 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

21

Exmark 340-132

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

21:1

Exmark 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

21:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

22

Exmark 126-8689

TUBE ASM

$37.99

$

Usually ships in 3-6 days

0

23

Exmark 126-6806

SUPPORT-TUBE

$9.49

$

Usually ships in 3-6 days

0

24

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

25

Exmark 87-1910

PIN-DOWEL

$10.99

$

In Stock, only 3 left!

0

26

Exmark 135-2252

FILTER-OIL, HYD

$71.99

$

In Stock, Qty 6

0
