LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 406294345 - 408644345) (Rev A) (2020) Engine, Muffler and Air Cleaner Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

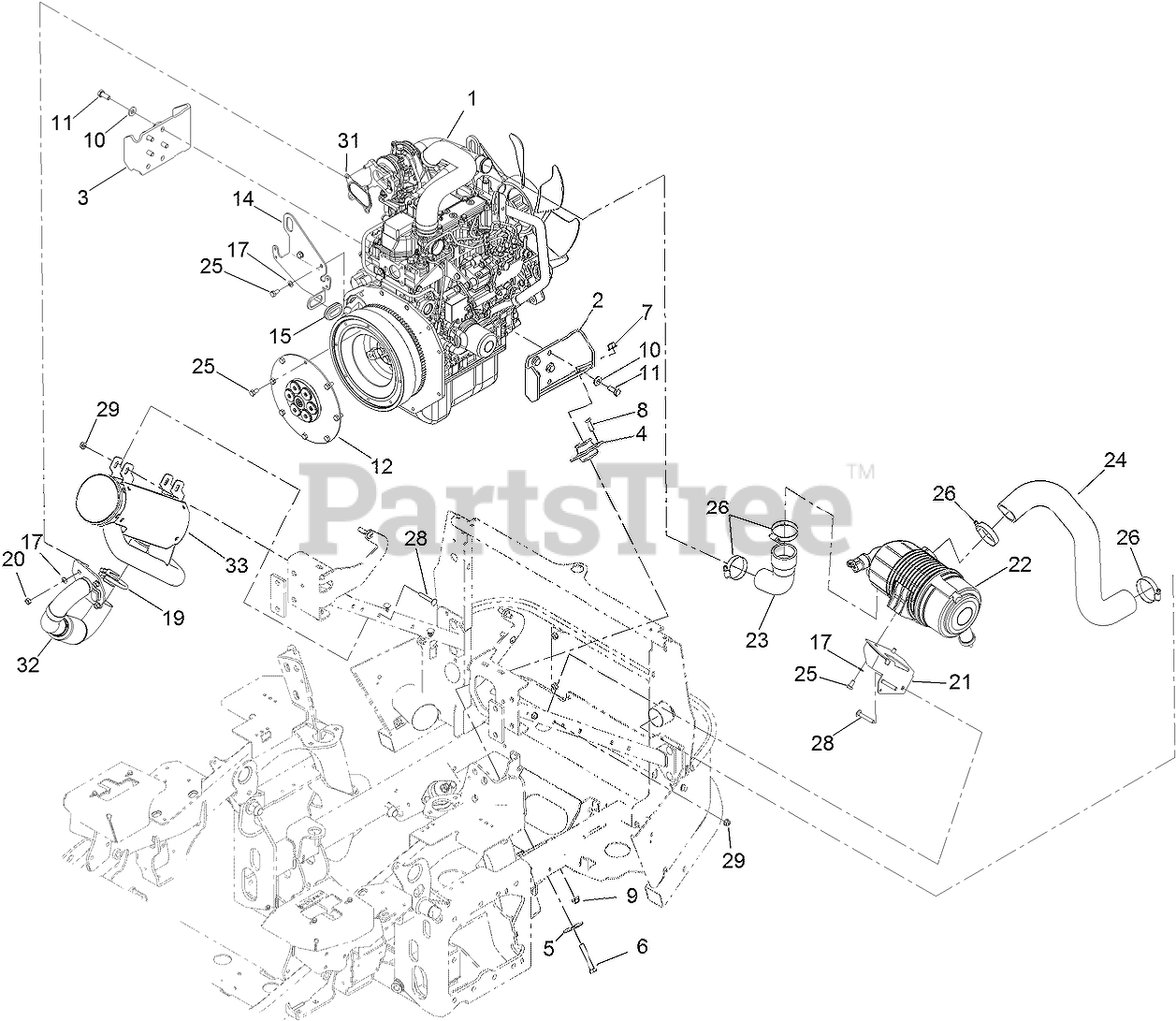

Engine, Muffler and Air Cleaner Assembly Parts Diagram

  • Title
1

Exmark 138-6926

Engine,Yanmar 3Tnv80Ft-Zmtr1

$10084.99

$

Usually ships in 3-6 days

0

2

Exmark 126-9282-03

MOUNT-ENGINE, LH

$82.99

$

Usually ships in 3-6 days

0

3

Exmark 126-9285-03

MOUNT-ENGINE, RH

$82.99

$

Usually ships in 3-6 days

0

4

$38.99

$

Usually ships in 3-6 days

0

5

Exmark 87-5100

WASHER-SNUBBING

$4.49

$

Usually ships in 3-6 days

0

6

Exmark 324-11

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

7

Exmark 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 18

0

8

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

11

Exmark 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

12

Exmark 126-6531

Flywheel Coupling ASM

$261.99

$

Usually ships in 3-6 days

0

14

Exmark 126-7610-03

BRACKET-GUIDE

$37.99

$

Usually ships in 3-6 days

0

15

Exmark 108-3723

GROMMET

$8.49

$

Usually ships in 3-6 days

0

17

Exmark 3290-475

WASHER-BELLEVILLE

$2.99

$

Usually ships in 3-6 days

0

19

$36.99

$

Usually ships in 3-6 days

0

20

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

21

Exmark 126-8730-03

BRACKET-CLEANER, AIR

$43.99

$

Usually ships in 3-6 days

0

22

Exmark 126-7646

AIR CLEANER ASM
(Superseded to 142-3554)

$192.99

$

In Stock, only 3 left!

0

23

Exmark 126-7288

HOSE-AIR

$26.99

$

Usually ships in 3-6 days

0

24

Exmark 120-9177

HOSE-AIR

$79.99

$

Usually ships in 3-6 days

0

25

$16.99

$

In Stock, only 2 left!

0

26

Exmark 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

28

Exmark 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 11

0

29

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

31

Exmark 136-2307

GASKET-HEADER

$9.49

$

Usually ships in 3-6 days

0

32

Exmark 126-9329

HEADER PIPE

$288.99

$

Usually ships in 3-6 days

0

33

Exmark 126-8911

MUFFLER

$509.99

$

Usually ships in 3-6 days

0
