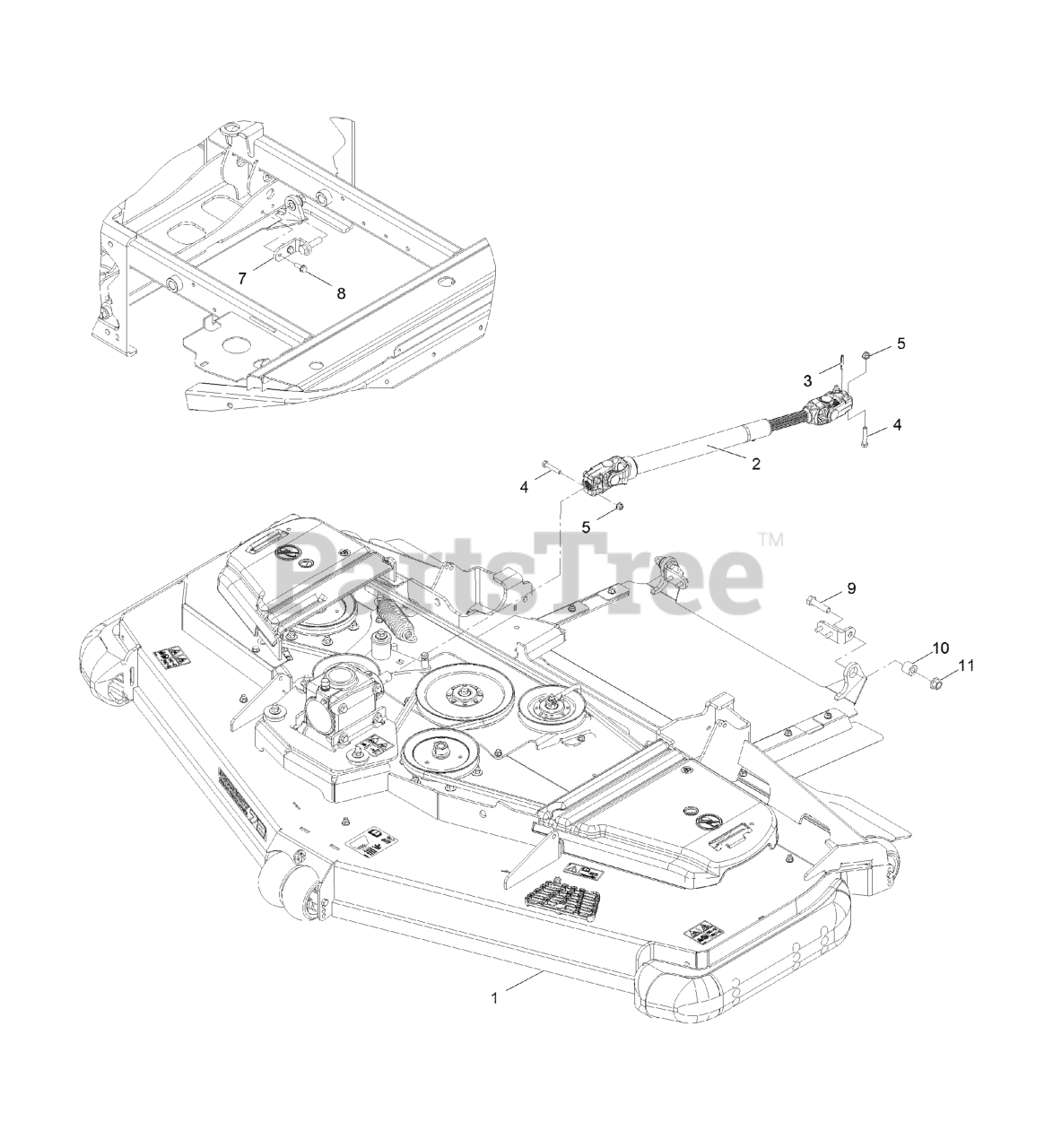

LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 404314159 - 406294344) (Rev B) (2019) Complete Deck Assembly (Gearbox Asm Not Included) Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

Complete Deck Assembly (Gearbox Asm Not Included) Parts Diagram

  • Title
1

Deck ASM-72Rd

Note: Not serviced separately

$

$

Not available

1

Exmark 135-0840

Deck ASM-72Rd

$

$

Currently unavailable

2

Exmark 110-3575

DRIVESHAFT ASM

$912.99

$

In Stock, only 2 left!

0

3

Exmark 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

4

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 126-2789

Discharge Tunnel ASM

$312.99

$

In Stock, only 2 left!

0

7

Exmark 126-2793-03

BRACKET-DISCHARGE

$27.99

$

Usually ships in 3-6 days

0

8

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

9

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 5

0

10

Exmark 126-1705

BUSHING-SLEEVE

$7.99

$

In Stock, Qty 5

0

11

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0
