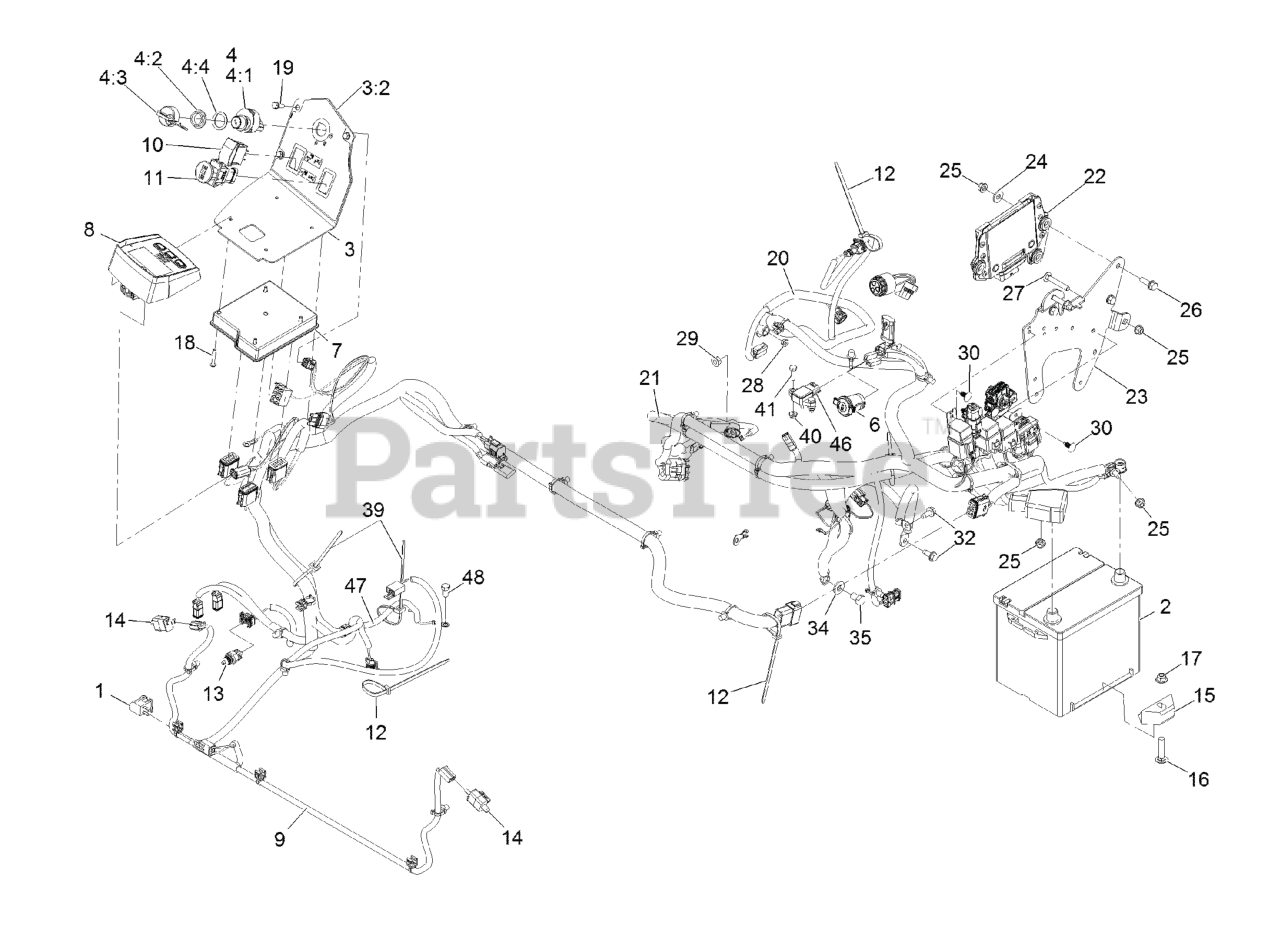

LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 404314159 - 406294344) (2019) Electrical Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

Electrical Assembly Parts Diagram

  • Title

1

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

2

Exmark 106-5187

Battery-Dry

$210.99

$

Usually ships in 3-6 days

0

3

Exmark 135-6122

Console ASM

$70.99

$

Usually ships in 3-6 days

0

3:2

Exmark 126-9278

DECAL-CONTROL PANEL

$19.99

$

Usually ships in 3-6 days

0

4

Exmark 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

4:1

Switch-Ignition

Note: Not serviced separately

$

$

Not available

4:2

Exmark 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

4:3

Exmark 106-5270

IGNITION KEY SET

$21.99

$

In Stock, Qty 18

0

4:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

6

Exmark 126-6499

PORT-POWER, 12V

$15.99

$

In Stock, only 2 left!

0

7

Exmark 135-3427

Module-Mcu

$352.99

$

Usually ships in 3-6 days

0

8

Exmark 126-4232

MODULE, LDU

$

$

Not available

9

Exmark 126-7262

HARNESS-WIRE

$644.99

$

Usually ships in 3-6 days

0

10

Exmark 100-1535

SWITCH

$90.99

$

In Stock, Qty 5

0

11

Exmark 126-6187

SWITCH-PTO, SEALED

$54.99

$

In Stock, Qty 11

0

12

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

13

Exmark 126-7698

SENSOR-TEMPERATURE

$94.99

$

In Stock, only 2 left!

0

14

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 11

0

15

Exmark 66-2490

RETAINER-BATTERY
(Superseded to 138-6335)

$11.99

$

Usually ships in 3-6 days

0

16

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 126-5092

SCREW-PPH

$3.49

$

In Stock, Qty 8

0

19

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

20

Exmark 126-7387

HARNESS-WIRE
(Superseded to 142-7960)

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$622.99

$

Usually ships in 3-6 days

0

21

Exmark 126-7406

CABLE-BATTERY

$155.99

$

Usually ships in 3-6 days

0

22

Exmark 135-4280

ECU ASM
(Superseded to 135-4281)

$1875.99

$

Usually ships in 3-6 days

0

23

Exmark 135-0503-03

BRACKET-MOUNT, ECU

$47.99

$

Usually ships in 3-6 days

0

24

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

26

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

27

Exmark 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 11

0

28

Exmark 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

29

Exmark 127-2371

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 10

0

32

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

34

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Exmark 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

39

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

40

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

41

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

46

Exmark 126-9261

SENSOR-ATM

$168.99

$

Usually ships in 3-6 days

0

47

Exmark 135-3998

HARNESS-WIRE, JUMPER

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$30.99

$

Usually ships in 3-6 days

0

48

Exmark 99-5132

BOLT

$16.99

$

In Stock, only 2 left!

0
