LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Roll-Over Protection System Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

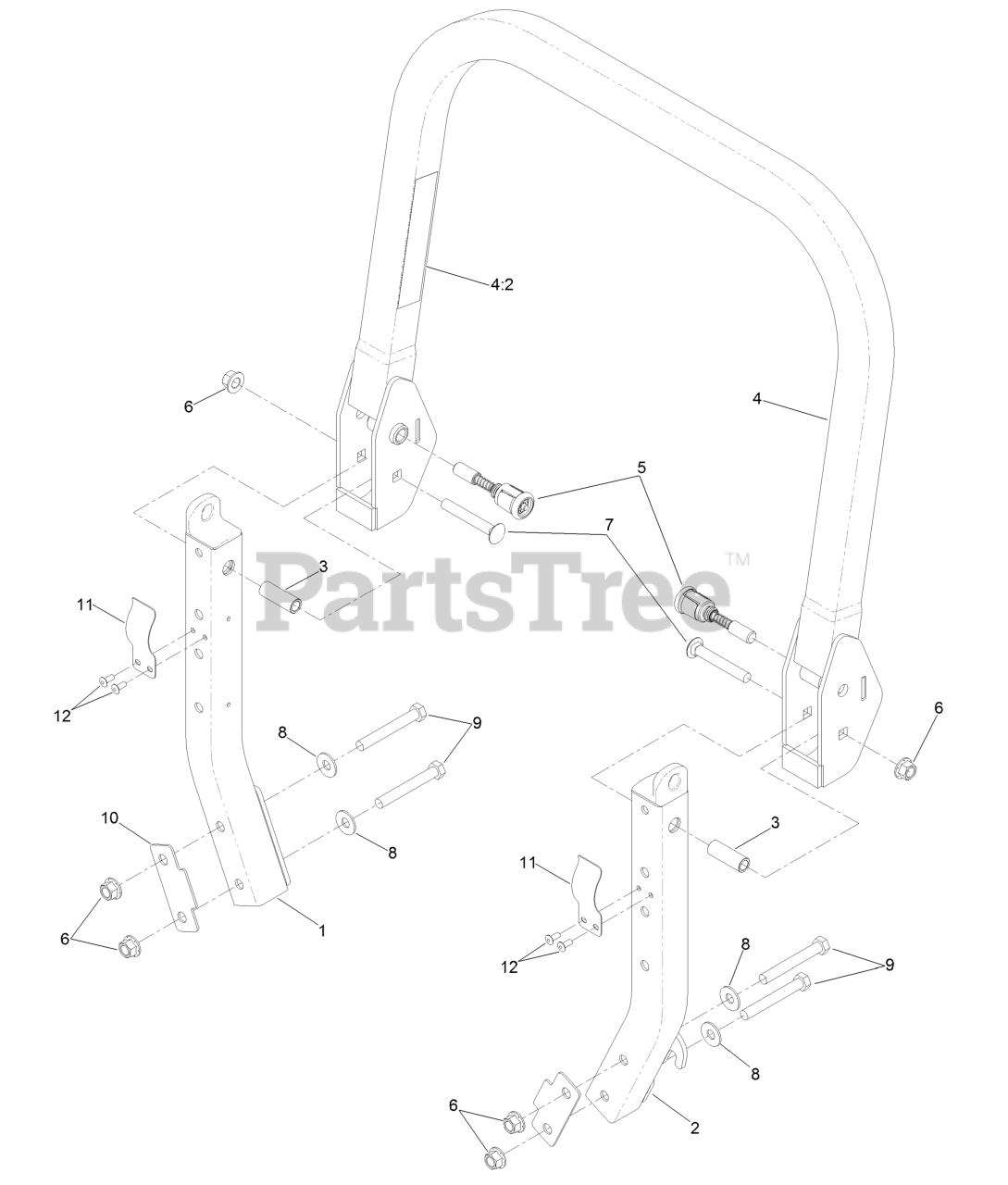

Roll-Over Protection System Assembly Parts Diagram

  • Title

1

Lower-ROPS, RH

$

$

Not available

2

Lower-ROPS, LH

$

$

Not available

3

Exmark 109-6653

Spacer

$6.49

$

In Stock, only 2 left!

0

4

Exmark 126-7085

ROPS Upper ASM

$252.99

$

Usually ships in 3-6 days

0

4:2

Exmark 107-3069

Decal-Warning

$22.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0104

Pin-Spring

$47.99

$

In Stock, only 1 left!

0

6

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

7

Exmark 3233-10

Bolt-Carriage 1/2-13 X 3 1/2

$7.49

$

In Stock, only 2 left!

0

8

Exmark 109-9505

Washer, Spring Disc 1/2

$5.49

$

In Stock, only 4 left!

0

9

Exmark 325-35

Screw-HH

$10.99

$

Usually ships in 3-6 days

0

10

Exmark 116-0960

Spacer

$7.99

$

Usually ships in 3-6 days

0

11

Exmark 110-5696

Spring-Leaf

$45.99

$

Usually ships in 3-6 days

0

12

Exmark 3290-412

Rivet-Blind

$3.49

$

In Stock, only 4 left!

0
