LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Power Frame Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

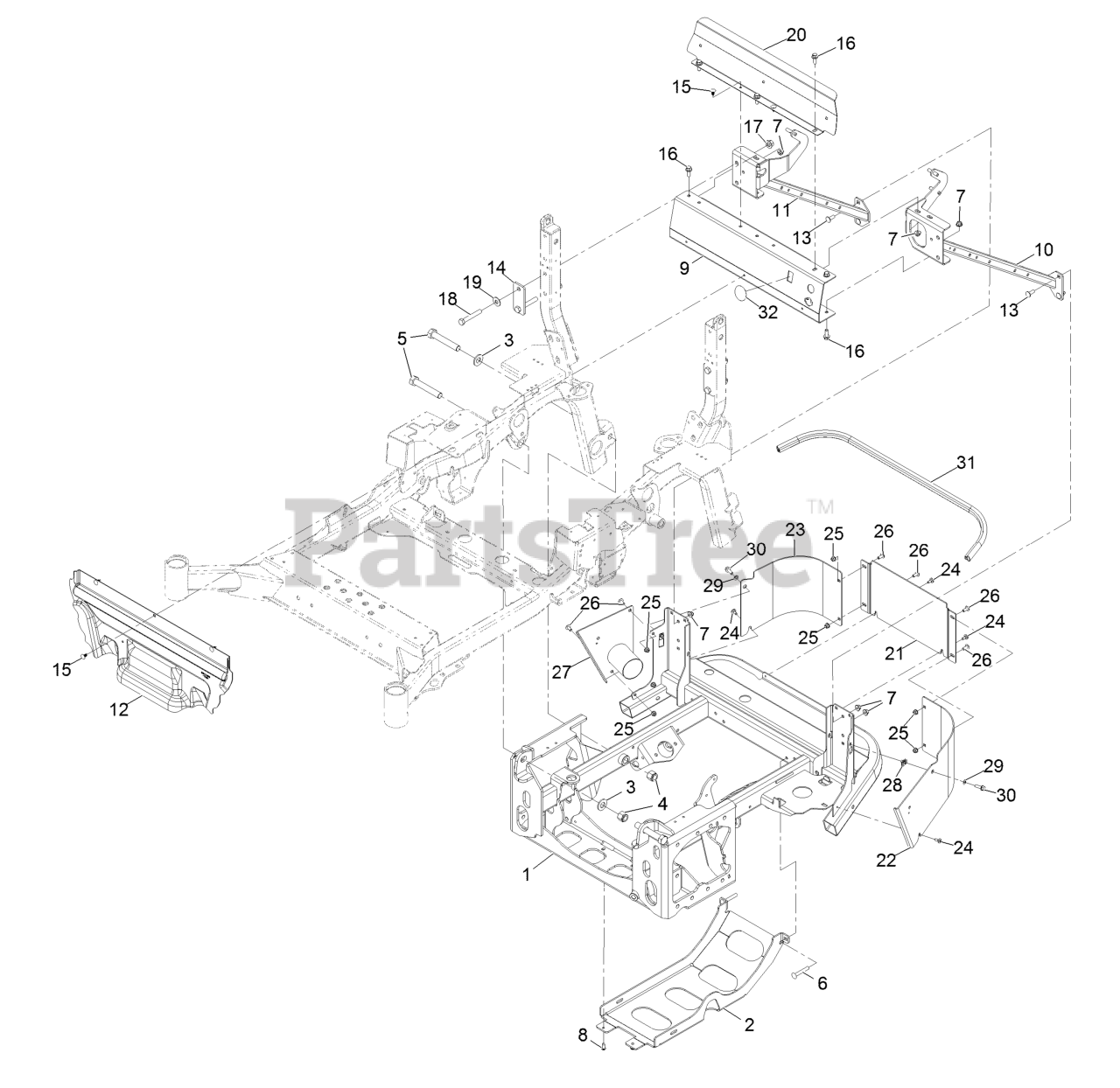

Power Frame Assembly Parts Diagram

  • Title

1

Exmark 126-5929-03

Frame-Power

$1316.99

$

Usually ships in 3-6 days

0

2

Exmark 126-5922-03

Plate-Skid

$213.99

$

Usually ships in 3-6 days

0

3

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 20+

0

4

Exmark 3296-51

Nut-Nyloc 3/4-10

$6.49

$

In Stock, Qty 20+

0

5

Exmark 328-8

Screw-HH

$14.99

$

Usually ships in 3-6 days

0

6

Exmark 3231-44

Bolt-Carriage 3/8-16 X 2 1/2

$2.99

$

In Stock, Qty 20+

0

7

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 613381

Screw-Button Head 5/16-18 X .725 Tf

$5.49

$

In Stock, only 1 left!

0

9

Exmark 126-8567-03

Channel-Cross

$82.99

$

Usually ships in 3-6 days

0

10

Exmark 126-8563-03

Brace-ROPS, LH
(Superseded to 142-9442-03)

$196.99

$

Usually ships in 0 days

0

11

Exmark 126-8565-03

Brace-ROPS, RH

$

$

Not available

12

Exmark 126-7458

Panel-Deflector, Heat

$213.99

$

Usually ships in 3-6 days

0

13

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

14

Exmark 135-0412-03

Plate-Spacer

$7.99

$

Usually ships in 3-6 days

0

15

Exmark 117-2382

Plug-Plastic

$0.99

$

In Stock, Qty 20+

0

16

Exmark 131-2220

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

18

Exmark 112-7264

Screw-HH

$8.99

$

In Stock, only 2 left!

0

19

Exmark 109-9505

Washer, Spring Disc 1/2

$5.49

$

In Stock, only 3 left!

0

20

Exmark 126-6557-03

Shield-Air

$42.99

$

Usually ships in 3-6 days

0

21

Exmark 126-8954-03

Plate-Bumper, Center

$57.99

$

Usually ships in 3-6 days

0

22

Exmark 126-8952-03

Plate-Bumper, LH

$86.99

$

Usually ships in 3-6 days

0

23

Exmark 126-8953-03

Plate-Bumper, RH

$60.99

$

Usually ships in 3-6 days

0

24

Exmark 120-7950

Screw-1/4-20 X 1/2 Tf Torx Plus

$2.99

$

In Stock, Qty 20+

0

25

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

26

Exmark 126-6268

Screw-Truss HD 5/16-18 X 3/4 Torx Plus

$1.49

$

In Stock, Qty 5

0

27

Exmark 135-0880

Plate-Exhaust

$57.99

$

Usually ships in 3-6 days

0

28

Exmark 112-3306

Nut

$3.49

$

Usually ships in 3-6 days

0

29

Exmark 3290-475

Washer-Belleville

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 20+

0

31

Exmark 126-6845

Seal-Bulb

$28.99

$

Usually ships in 3-6 days

0

32

Exmark 135-3728

Decal-Cover

$3.49

$

Usually ships in 3-6 days

0
