LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Fuel Injection Valve Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

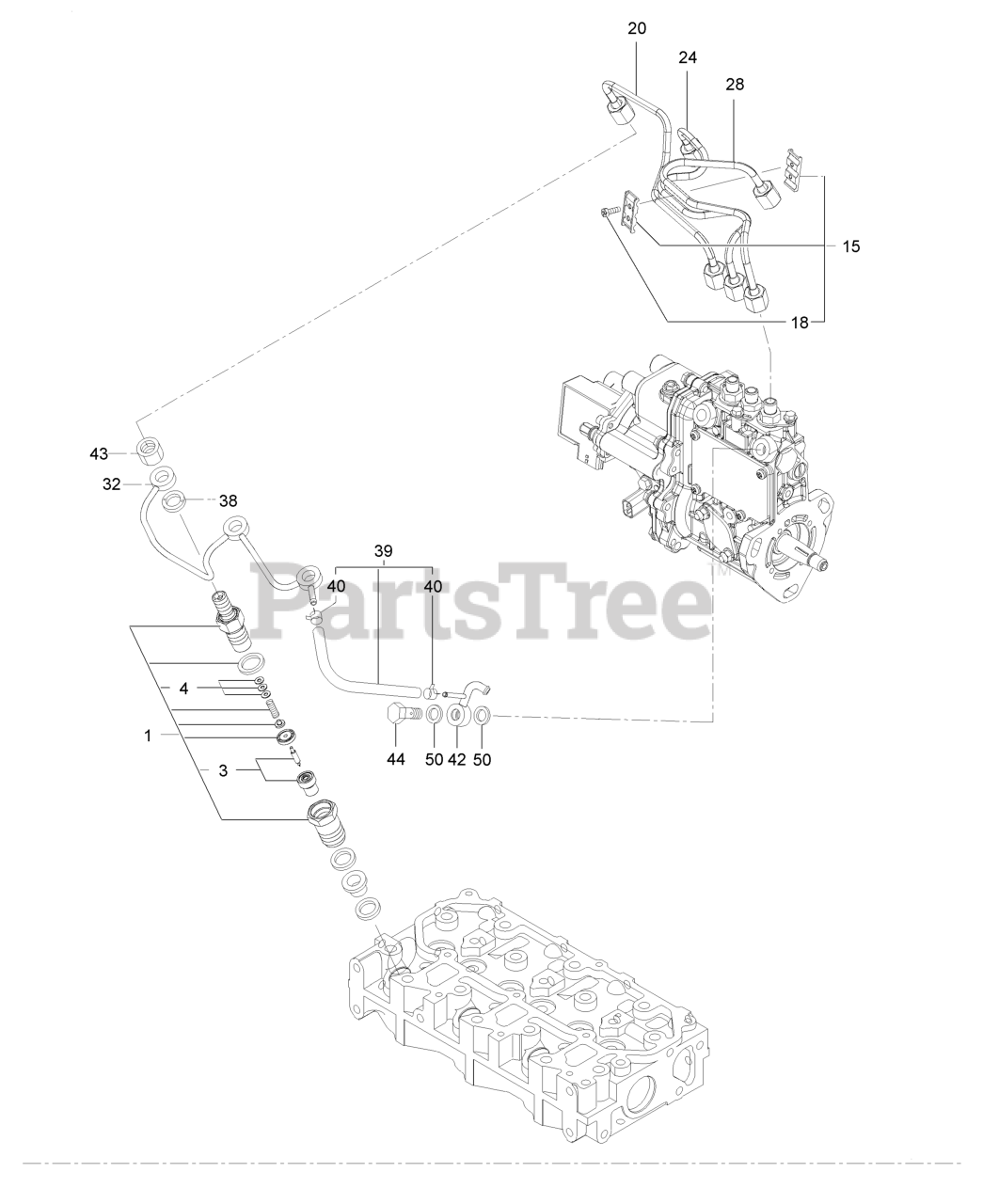

Fuel Injection Valve Assembly Parts Diagram

  • Title

1

Exmark 135-4229

Nozzle ASM

$398.99

$

Usually ships in 3-6 days

0

3

Exmark 135-4230

Nozzle ASM

$228.99

$

Usually ships in 3-6 days

0

4

Exmark 135-4231

Shim Set-Adjusting

$34.99

$

Usually ships in 3-6 days

0

15

Exmark 135-4232

Retainer-Pipe

$10.99

$

Usually ships in 3-6 days

0

18

Exmark 125-7027

Bolt

$4.99

$

Usually ships in 3-6 days

0

20

Exmark 135-4233

Pipe ASM

$154.99

$

Usually ships in 3-6 days

0

24

Exmark 135-4234

Pipe ASM

$154.99

$

Usually ships in 3-6 days

0

28

Exmark 135-4235

Pipe ASM

$154.99

$

Usually ships in 3-6 days

0

32

Exmark 135-4236

Pipe ASM

$107.99

$

Usually ships in 3-6 days

0

38

Exmark 135-4237

Gasket

$16.99

$

Usually ships in 3-6 days

0

39

Exmark 135-4238

Hose ASM

$28.99

$

Usually ships in 3-6 days

0

40

Exmark 136-8225

Clamp-Hose

$4.49

$

Usually ships in 3-6 days

0

42

Exmark 135-4239

Joint-Over Flow

$63.99

$

Usually ships in 3-6 days

0

43

Exmark 135-4240

Nut-Nozzle

$4.99

$

Usually ships in 3-6 days

0

44

Exmark 135-4241

Valve ASM-Check

$79.99

$

Usually ships in 3-6 days

0

50

Exmark 125-7176

Washer-Seal

$8.99

$

Usually ships in 3-6 days

0
