LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

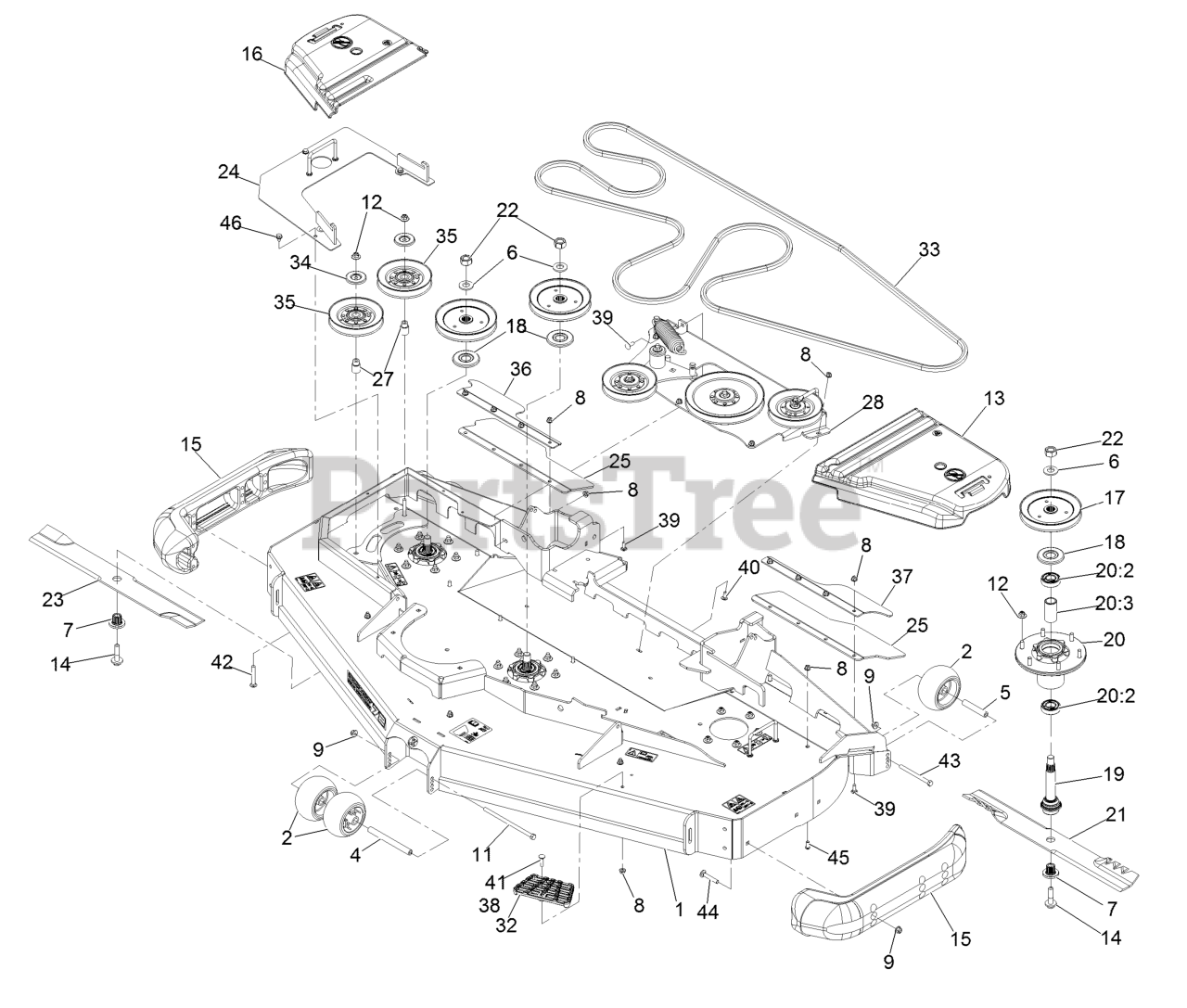

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-1939

Deck-Rd72 W/Decals

$3749.99

$

Usually ships in 3-6 days

0

2

Exmark 1-603299

Roller-Scalp, Anti

$23.99

$

In Stock, Qty 20+

0

4

Exmark 98-5967

Spacer-Wheel

$15.99

$

In Stock, Qty 20+

0

5

Exmark 98-7912

Tube-Spanner

$13.99

$

In Stock, Qty 20+

0

6

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 20+

0

7

Exmark 103-3037

Bushing, Splined

$22.99

$

In Stock, Qty 20+

0

8

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 108-5388

Screw-HH 3/8-16 X 7 3/8

$15.99

$

In Stock, only 2 left!

0

12

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

13

Exmark 109-6938

Cover-Belt, LH

$96.99

$

In Stock, Qty 20+

0

14

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

15

Exmark 112-1479

Skid-Bumper, Deck

$104.99

$

Usually ships in 3-6 days

0

16

Exmark 116-0094

Cover-Belt, RH

$86.99

$

In Stock, Qty 15

0

17

Exmark 116-0675

Sheave,Blade Drive 6.50

$94.99

$

In Stock, Qty 20+

0

18

Exmark 116-1286

Guard,Bearing Top .989

$5.49

$

In Stock, Qty 20+

0

19

Exmark 116-3341

ASM-Spindle And Seal

$89.99

$

In Stock, Qty 20+

0

20

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$158.99

$

In Stock, Qty 20+

0

20:2

Exmark 116-0720

Bearing-Ball

$22.99

$

In Stock, Qty 20+

0

20:3

Exmark 116-3312

Spacer-Bearing

$9.49

$

In Stock, Qty 5

0

21

Exmark 116-5171

Blade-Extreme 2, 24.50"
(Superseded to 116-5171-S)

$44.99

$

In Stock, Qty 20+

0

21

Exmark 103-6404

Blade, Notched (72")
(Superseded to 103-6404-S)

$44.99

$

In Stock, Qty 20+

0

21

Exmark 103-6389

Blade, Low Lift (72")
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 20+

0

22

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 20+

0

23

Exmark 116-8502

Blade-Low Lift 24.50, Rd72
(Superseded to 116-8502-S)

$38.99

$

In Stock, only 2 left!

0

23

Exmark 116-8503

Blade-Extreme 2-24.50, Rd72
(Superseded to 116-8503-S)

$41.99

$

In Stock, Qty 20+

0

24

Exmark 125-9374-01

Cover-Reverse Drive

$149.99

$

Usually ships in 3-6 days

0

25

Exmark 135-0709

Guard-Tire

$27.99

$

Usually ships in 3-6 days

0

27

Exmark 126-3312

Standoff-Idler

$17.99

$

Usually ships in 3-6 days

0

28

Idler Mount ASM

$

$

Not available

32

Exmark 126-4781-03

Step-Deck

$28.99

$

In Stock, only 1 left!

0

33

Exmark 126-7628

Belt-Bb

$257.99

$

In Stock, only 2 left!

0

34

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, Qty 20+

0

35

Exmark 126-8766

Idler V

$94.99

$

Usually ships in 3-6 days

0

36

Exmark 135-0402-01

Support-Flap, Outer (RH)

$49.99

$

Usually ships in 3-6 days

0

37

Exmark 135-0403-01

Support-Flap, Outer (LH)

$49.99

$

Usually ships in 3-6 days

0

38

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

39

Exmark 3230-16

Bolt-Carriage 5/16-18 X 7/8

$2.99

$

In Stock, Qty 16

0

40

Exmark 3230-23

Bolt-Carriage 5/16-18 X 3/4 Short Neck

$1.49

$

In Stock, Qty 20+

0

41

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

42

Exmark 3231-31

Bolt-Carriage 3/8-16 X 2 1/2

$7.49

$

In Stock, Qty 20+

0

43

Exmark 323-23

Screw-HH 3/8-16 X 4-1/2

$5.49

$

In Stock, Qty 20+

0

44

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 11

0

45

Exmark 3274-55

Screw-Button Head 5/16-18 X 3/4

$5.49

$

In Stock, Qty 13

0

46

Exmark 9266934

Screw-HWH 5/16 X 1/2 Tf

$8.99

$

In Stock, only 3 left!

0
