LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 413950474 & Above) (Rev A) (2023) Deck Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

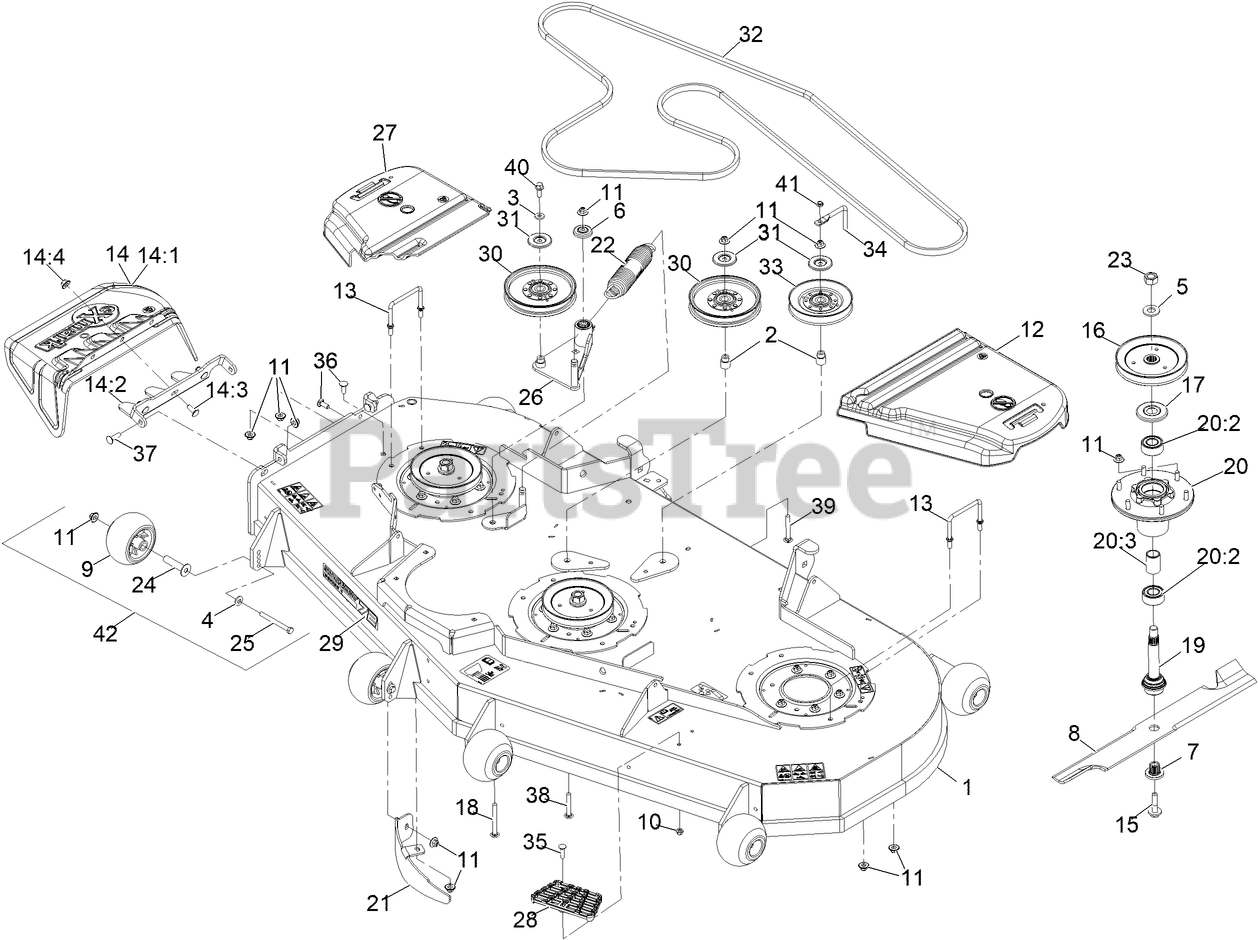

Deck Assembly Parts Diagram

  • Title
1

Exmark 126-0913

DECK-724

$3507.99

$

Usually ships in 3-6 days

0

2

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

3

$5.49

$

In Stock, Qty 20+

0

4

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

5

$5.49

$

In Stock, Qty 16

0

6

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

7

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

8

Exmark 116-5171

USE 116-5171-S
(Superseded to 116-5171-S)

Note: Optional Equipment

$43.99

$

In Stock, Qty 20+

0

8

Exmark 103-6404

USE 103-6404-S
(Superseded to 103-6404-S)

$43.99

$

In Stock, Qty 20+

0

8

Exmark 103-6394

USE 103-6394-S
(Superseded to 103-6394-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$38.99

$

In Stock, Qty 20+

0

8

Exmark 103-6389

USE 103-6389-S
(Superseded to 103-6389-S)

Note: Optional Equipment

$38.99

$

In Stock, Qty 10

0

8

Exmark 103-6384

USE 103-6384-S
(Superseded to 103-6384-S)

Note: Optional Equipment

$43.99

$

In Stock, Qty 20+

0

9

Exmark 103-8415

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 12

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 4 left!

0

12

Exmark 109-6938

COVER-BELT, LH

$94.99

$

In Stock, only 2 left!

0

13

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

14

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

14:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

14:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

14:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

14:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 4 left!

0

15

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

16

Exmark 116-0675

SHEAVE,BLADE DRIVE 6.50

$92.99

$

In Stock, Qty 7

0

17

Exmark 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, only 2 left!

0

18

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$7.99

$

In Stock, Qty 5

0

19

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 16

0

20

Exmark 135-3437

ASM-CUTTER HSG

$170.99

$

In Stock, Qty 8

0

20:2

Exmark 134-6634

BEARING-3205 TRASHGUARD

$31.99

$

Usually ships in 3-6 days

0

20:3

Exmark 135-3440

SPACER-BEARING

$8.49

$

In Stock, only 2 left!

0

21

Exmark 116-5834-01

BAFFLE-DOGLEG, LZ72

$75.99

$

Usually ships in 3-6 days

0

22

Exmark 116-6317

SPRING-EXTENSION

$27.99

$

In Stock, Qty 12

0

23

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 11

0

24

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 5

0

25

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

26

Exmark 126-2585

IDLER ARM ASM

$174.99

$

In Stock, only 1 left!

0

27

Exmark 126-3527

SHIELD-BELT

$105.99

$

Usually ships in 3-6 days

0

28

Exmark 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

29

Exmark 126-6590

DECAL, 724

$8.99

$

In Stock, only 4 left!

0

30

Exmark 126-7685

IDLER-PULLEY

$63.99

$

In Stock, Qty 17

0

31

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 4 left!

0

32

$169.99

$

Usually ships in 3-6 days

0

33

Exmark 126-8766

IDLER V

$94.99

$

Usually ships in 3-6 days

0

34

Exmark 135-0362

GUIDE-BELT

$25.99

$

Usually ships in 3-6 days

0

35

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

36

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

37

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

38

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 18

0

39

Exmark 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 7

0

40

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

41

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

42

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$53.99

$

In Stock, Qty 20+

0
