LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 408644346 - 411294211) (Rev A) (2021) Transmission Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

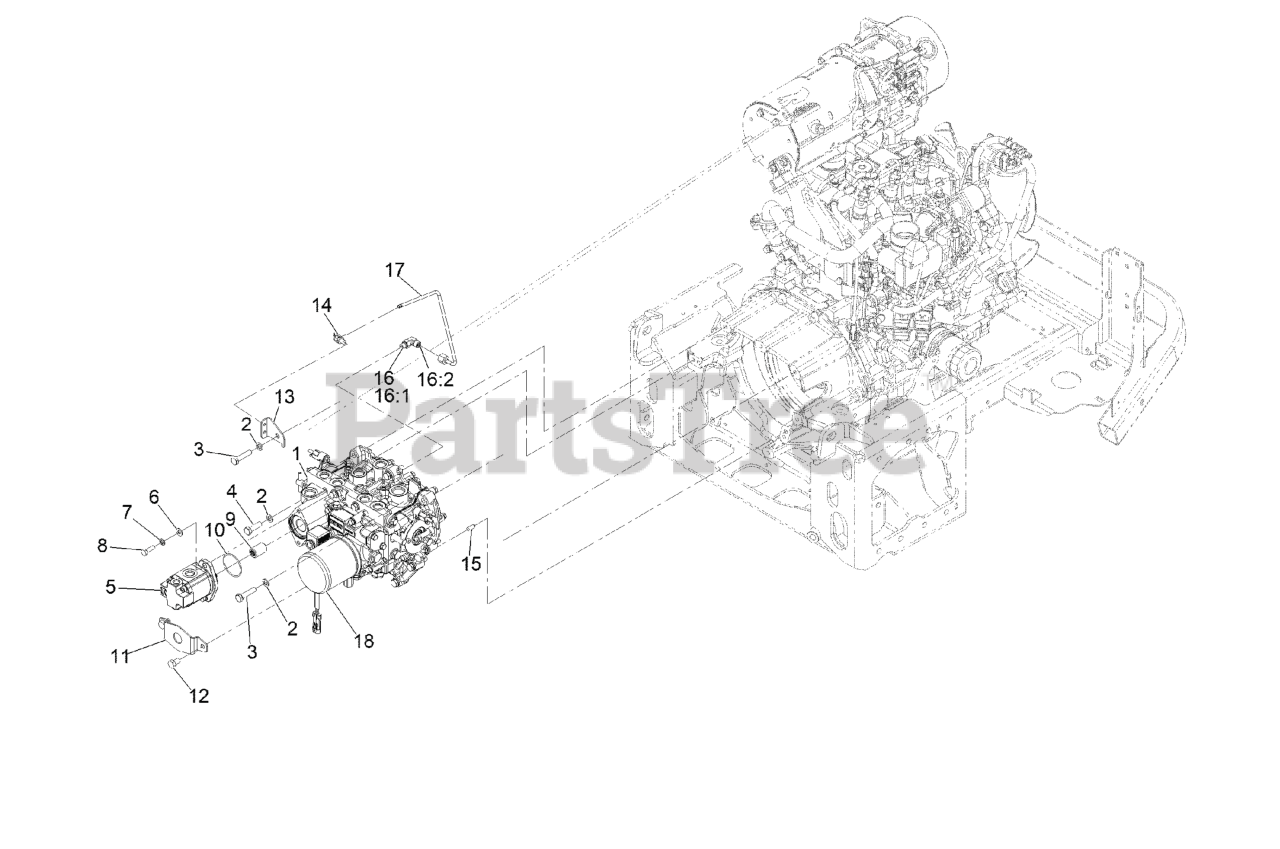

Transmission Assembly Parts Diagram

  • Title

1

Exmark 131-5510

TRANSMISSON ASM

$7695.99

$

Usually ships in 3-6 days

0

2

Exmark 48-9590

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

3

Exmark 33115-045

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

4

Exmark 33115-035

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 112-9542

HYD GEAR PUMP ASM

$1084.99

$

Usually ships in 3-6 days

0

6

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Exmark 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

9

Exmark 108-9920

COUPLER-SPLINE

$52.99

$

Usually ships in 3-6 days

0

10

Exmark 108-9919

O-RING

$4.49

$

Usually ships in 3-6 days

0

11

Exmark 114-4088

SHIELD-SEAL

$28.99

$

Usually ships in 3-6 days

0

12

Exmark 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

13

Exmark 126-6806

SUPPORT-TUBE

$9.49

$

Usually ships in 3-6 days

0

14

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

15

Exmark 87-1910

PIN-DOWEL

$10.99

$

In Stock, only 3 left!

0

16

Exmark 340-132

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

16:1

Exmark 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

16:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

17

Exmark 126-8689

TUBE ASM

$37.99

$

Usually ships in 3-6 days

0

18

Exmark 135-2252

FILTER-OIL, HYD

$71.99

$

In Stock, Qty 6

0
