LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 406294345 - 408644345) (Rev A) (2020) Hydraulic Lift Fold Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

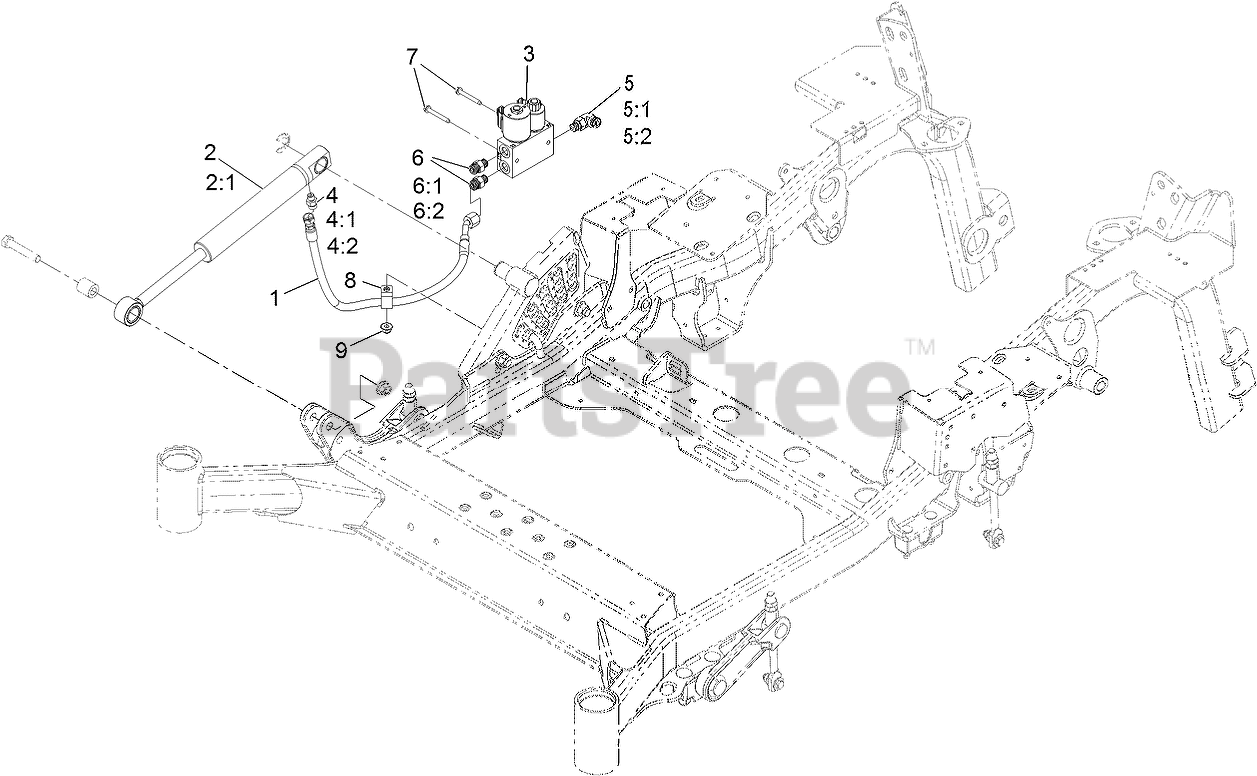

Hydraulic Lift Fold Assembly Parts Diagram

  • Title

1

Exmark 126-8683

HOSE ASM

$68.99

$

Usually ships in 3-6 days

0

2

Exmark 126-7841

CYLINDER-LIFT

$547.99

$

Usually ships in 3-6 days

0

2:1

Exmark 142-2767

CYL Repair Kit

$113.99

$

Usually ships in 3-6 days

0

3

Exmark 131-1934

DECK LIFT VALVE ASM

$842.99

$

Usually ships in 3-6 days

0

4

Exmark 126-8692

FITTING-HYD, STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

4:1

Exmark 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

4:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

5

Exmark 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

5:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

5:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

6

Exmark 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

6:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

6:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

7

Exmark 117-5248

SCREW-HWHTF

$2.99

$

In Stock, Qty 17

0

8

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
