LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 404314159 - 406294344) (2019) Hydraulic Drive Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

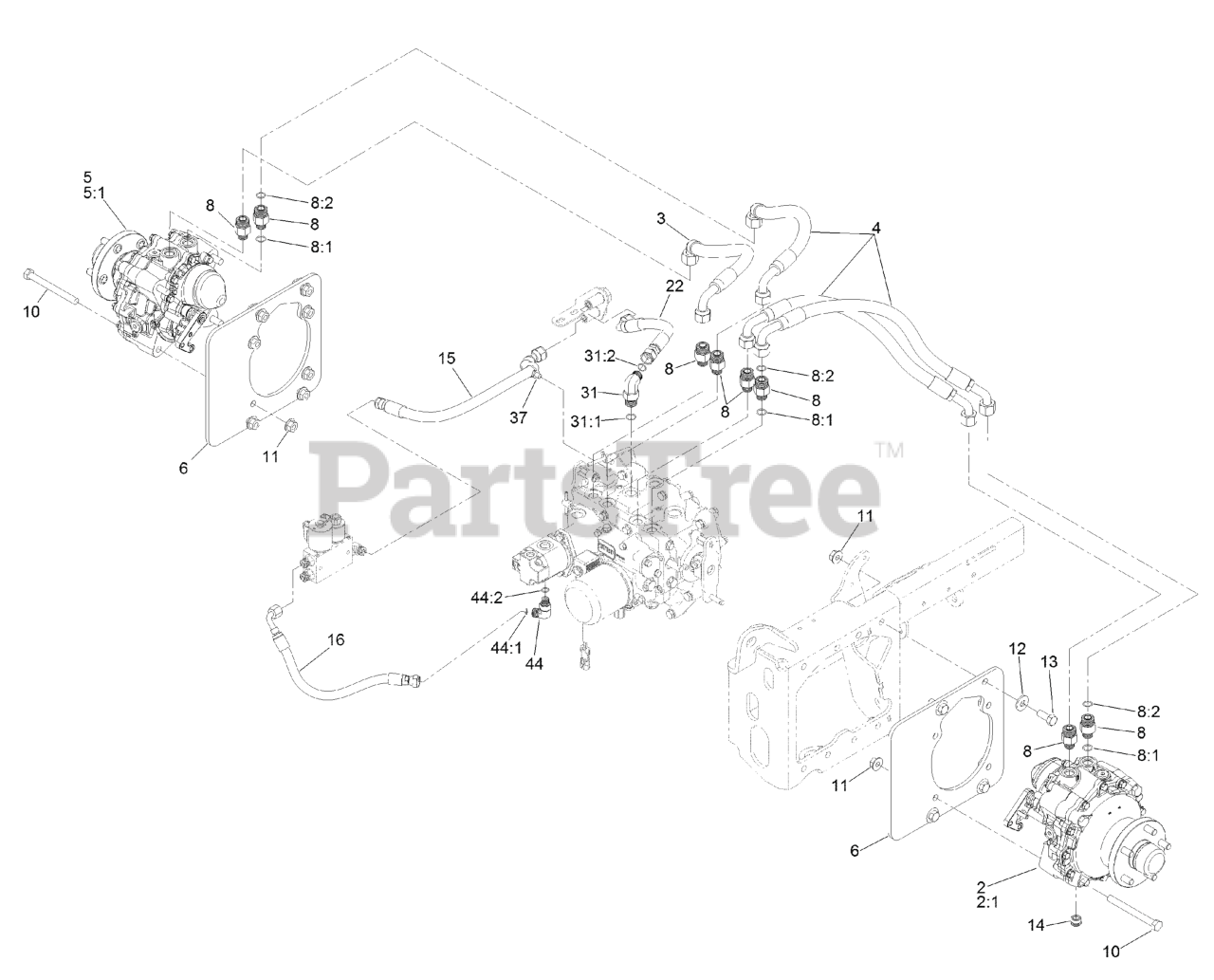

Hydraulic Drive Assembly Parts Diagram

  • Title

2

Exmark 126-8134

MOTOR-HYD, LH

$1566.99

$

Usually ships in 3-6 days

0

2:1

Exmark 135-5333

5 STUD WHEEL HUB KIT

$270.99

$

Usually ships in 3-6 days

0

3

Exmark 126-8686

HOSE ASM

$129.99

$

Usually ships in 3-6 days

0

4

Exmark 126-8687

HOSE ASM

$129.99

$

Usually ships in 3-6 days

0

5

Exmark 126-8133

MOTOR-HYD, RH

$1566.99

$

Usually ships in 3-6 days

0

5:1

Exmark 135-5333

5 STUD WHEEL HUB KIT

$270.99

$

Usually ships in 3-6 days

0

6

Exmark 126-7469-03

PLATE-MOTOR

$96.99

$

Usually ships in 3-6 days

0

8

Exmark 340-155

FITTING-STRAIGHT

$30.99

$

Usually ships in 3-6 days

0

8:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

8:2

Exmark 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

10

Exmark 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

11

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

12

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

13

Exmark 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

14

Exmark 126-8282

PLUG-MAGNETIC
(Superseded to 142-2435)

$12.99

$

In Stock, only 3 left!

0

15

Exmark 126-8685

HOSE ASM

$78.99

$

In Stock, only 1 left!

0

16

Exmark 126-8684

HOSE ASM

$59.99

$

In Stock, only 1 left!

0

22

Exmark 126-8682

HOSE ASM

$66.99

$

Usually ships in 3-6 days

0

31

Exmark 340-105

FITTING-ELBOW, 90 DEG

$42.99

$

In Stock, only 1 left!

0

31:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

31:2

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

37

Exmark 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

44

Exmark 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

44:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

44:2

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0
