LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 404314159 - 406294344) (2019) Fuel Injection Valve Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

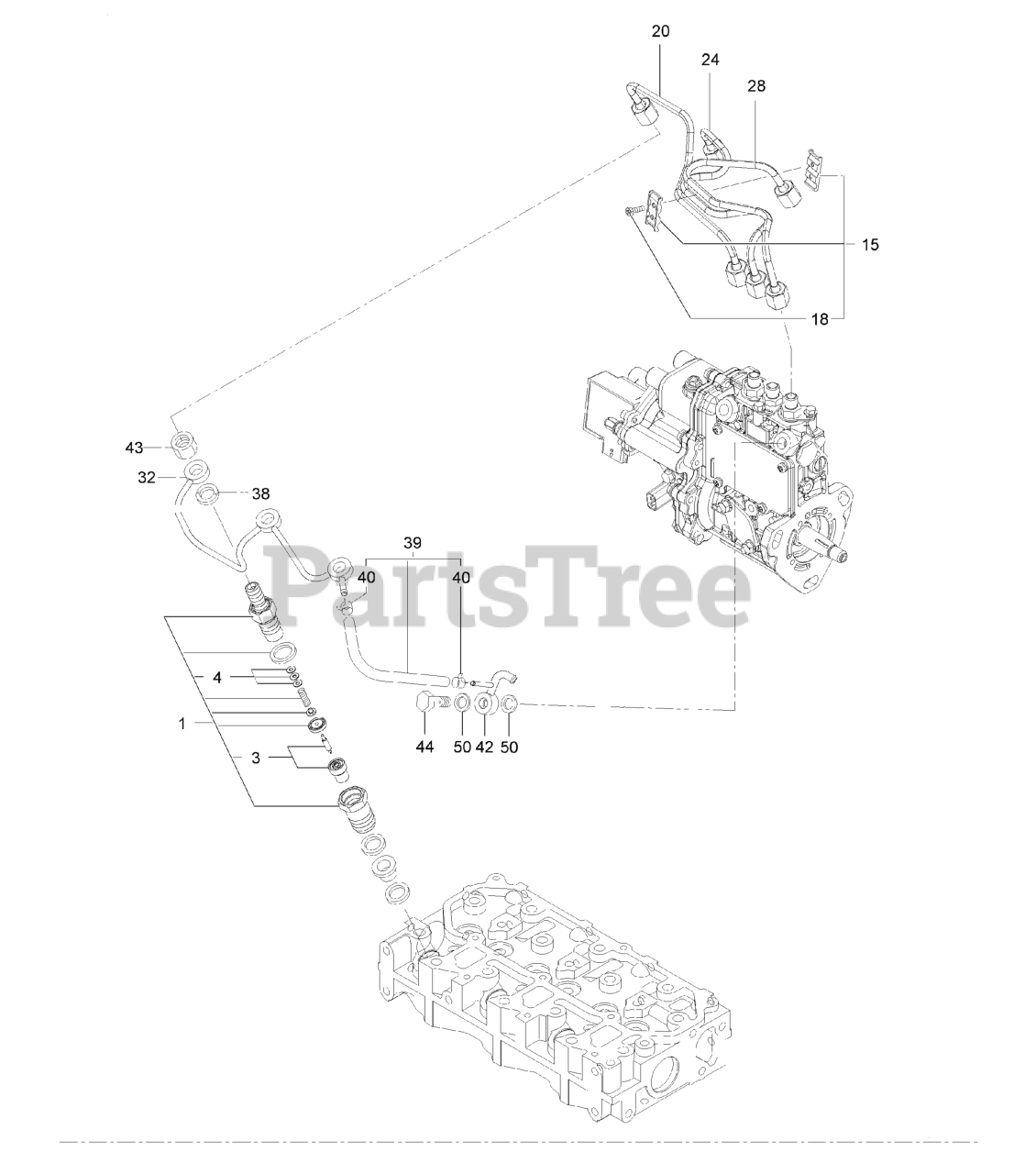

Fuel Injection Valve Assembly Parts Diagram

  • Title

1

Exmark 135-4229

NOZZLE ASM

$342.99

$

Usually ships in 3-6 days

0

3

Exmark 135-4230

NOZZLE ASM

$191.99

$

Usually ships in 3-6 days

0

4

Exmark 135-4231

SHIM SET-ADJUSTING

$28.99

$

Usually ships in 3-6 days

0

15

Exmark 135-4232

RETAINER-PIPE

$9.49

$

Usually ships in 3-6 days

0

18

Exmark 125-7027

BOLT

$4.99

$

Usually ships in 3-6 days

0

20

Exmark 135-4233

PIPE ASM

$131.99

$

Usually ships in 3-6 days

0

24

Exmark 135-4234

PIPE ASM

$131.99

$

Usually ships in 3-6 days

0

28

Exmark 135-4235

PIPE ASM

$131.99

$

Usually ships in 3-6 days

0

32

Exmark 135-4236

PIPE ASM

$107.99

$

Usually ships in 3-6 days

0

38

Exmark 135-4237

GASKET

$15.99

$

Usually ships in 3-6 days

0

39

Exmark 135-4238

HOSE ASM

$26.99

$

Usually ships in 3-6 days

0

40

Exmark 136-8225

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

42

Exmark 135-4239

JOINT-OVER FLOW

$53.99

$

Usually ships in 3-6 days

0

43

Exmark 135-4240

NUT-NOZZLE

$5.49

$

Usually ships in 3-6 days

0

44

Exmark 135-4241

VALVE ASM-CHECK

$67.99

$

Usually ships in 3-6 days

0

50

Exmark 125-7176

WASHER-SEAL

$8.99

$

Usually ships in 3-6 days

0
