LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Hydraulic Drive Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

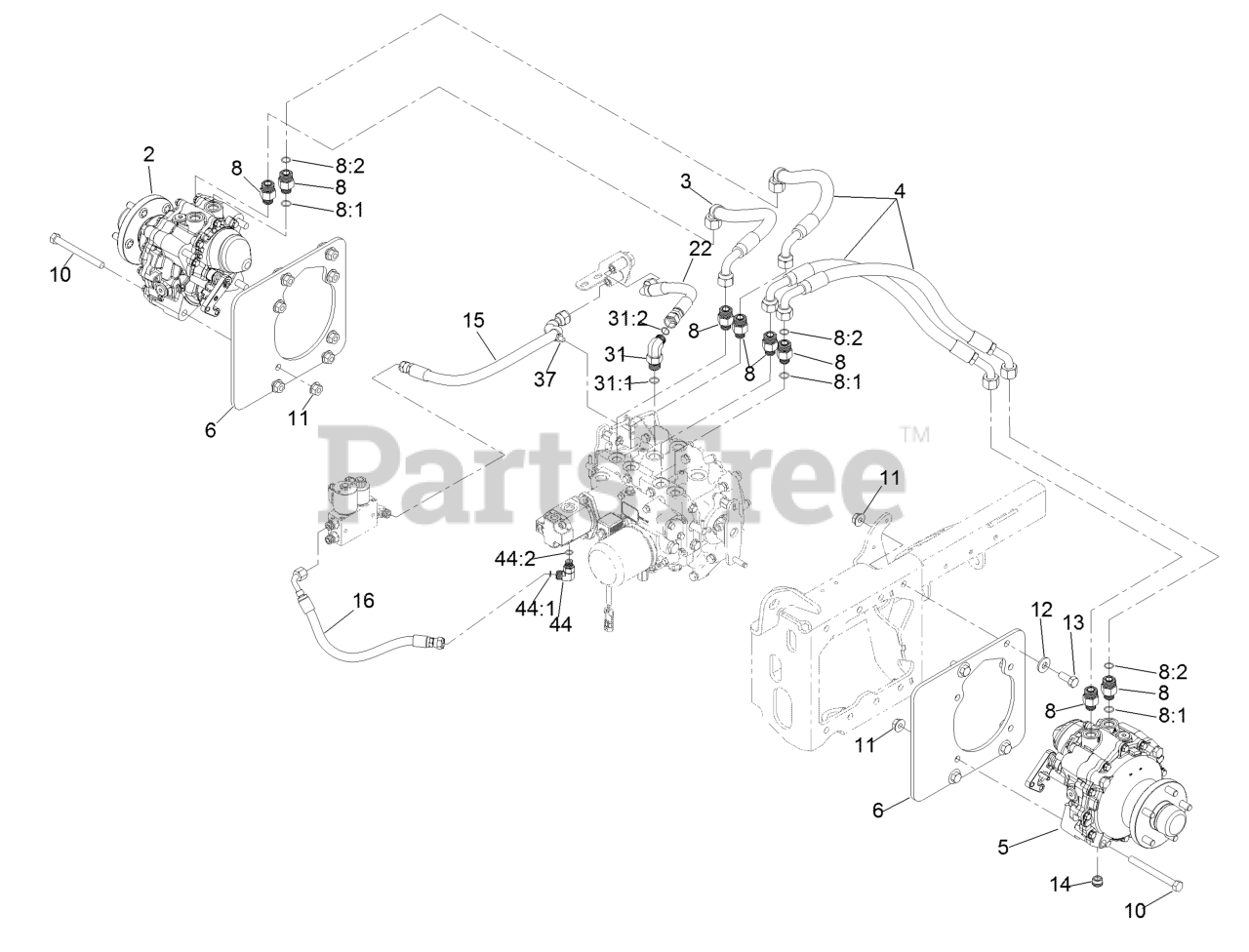

Hydraulic Drive Assembly Parts Diagram

  • Title

2

Exmark 126-8134

Motor-HYD, RH

$1634.99

$

Usually ships in 3-6 days

0

3

Exmark 126-8686

Hose ASM

$129.99

$

Usually ships in 3-6 days

0

4

Exmark 126-8687

Hose ASM

$129.99

$

Usually ships in 3-6 days

0

5

Exmark 126-8133

Motor-HYD, LH

$1634.99

$

Usually ships in 3-6 days

0

6

Exmark 126-7469-03

Plate-Motor

$106.99

$

Usually ships in 3-6 days

0

8

Exmark 340-155

Fitting-Straight

$30.99

$

Usually ships in 3-6 days

0

8:1

Exmark 237-79

O-Ring

$5.99

$

In Stock, Qty 7

0

8:2

Exmark 237-151

O-Ring

$2.49

$

Usually ships in 3-6 days

0

10

Exmark 325-19

Screw-HH 1/2-13 X 5

$8.49

$

In Stock, only 4 left!

0

11

Exmark 32128-49

Nut-Whizlock 1/2-13

$1.99

$

In Stock, Qty 20+

0

12

Exmark 1-513435

Washer-Spring Disc 1/2

$5.49

$

In Stock, Qty 20+

0

13

Exmark 325-5

Screw-HH 1/2-13 X 1 1/4

$1.49

$

In Stock, Qty 6

0

14

Exmark 126-8282

Plug-Magnetic
(Superseded to 142-2435)

$13.99

$

In Stock, only 3 left!

0

15

Exmark 126-8685

Hose ASM

$78.99

$

In Stock, only 1 left!

0

16

Exmark 126-8684

Hose ASM

$59.99

$

In Stock, only 1 left!

0

22

Exmark 126-8682

Hose ASM

$66.99

$

Usually ships in 3-6 days

0

31

Exmark 340-105

Fitting-Elbow, 90 DEG

$44.99

$

In Stock, only 1 left!

0

31:1

Exmark 237-80

O-Ring

$6.99

$

In Stock, Qty 19

0

31:2

Exmark 237-30

O-Ring

$2.99

$

In Stock, Qty 14

0

37

Exmark 32180-030

Clip-Tie

$5.49

$

In Stock, Qty 7

0

44

Exmark 340-77

Fitting-Elbow, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

44:1

Exmark 237-22

O-Ring

$2.99

$

In Stock, Qty 14

0

44:2

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0
